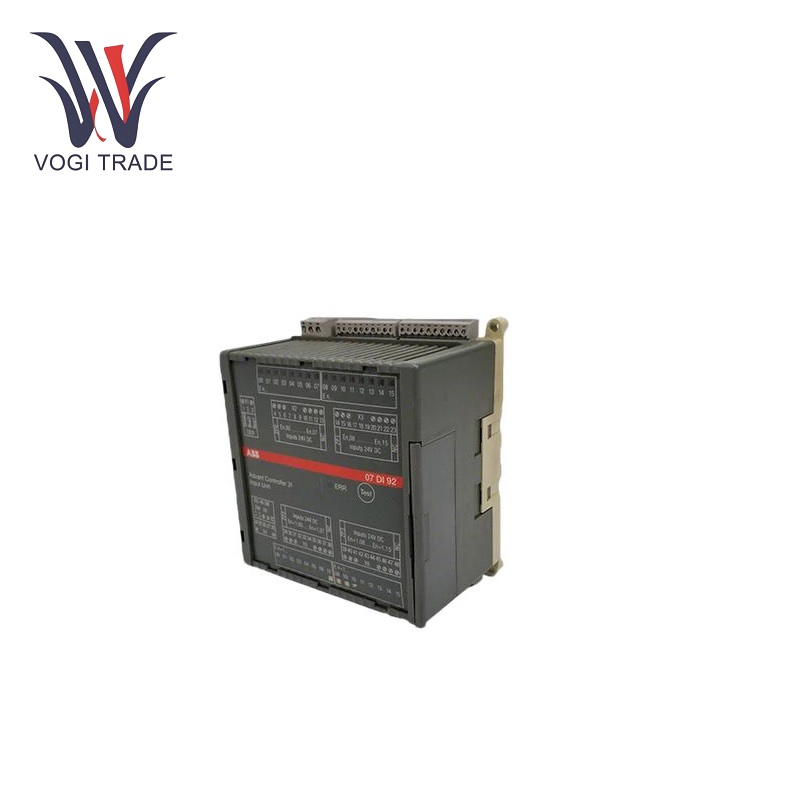

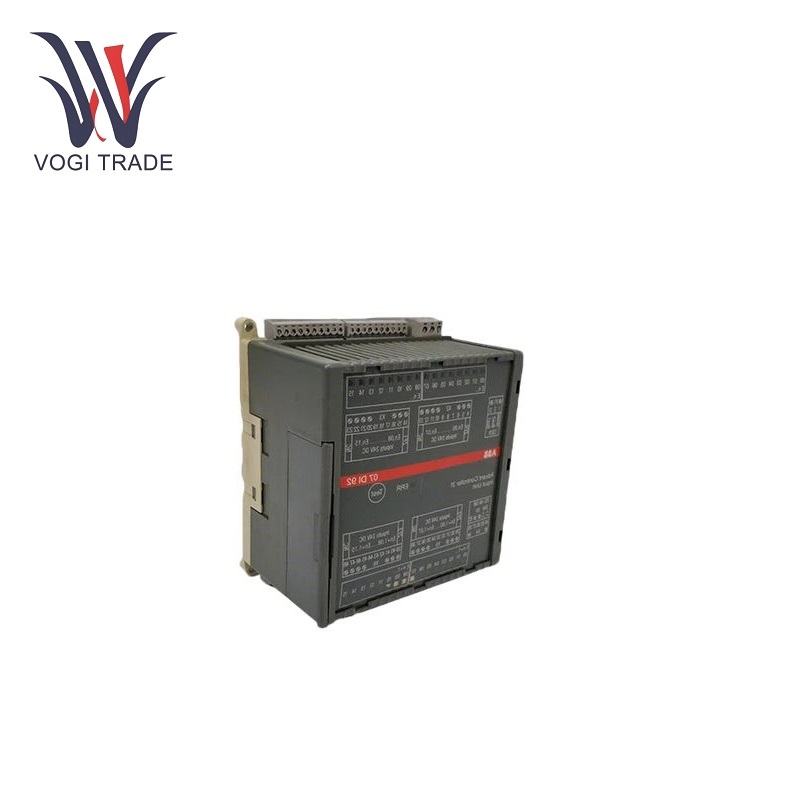

ABB 07DI92

Technical Parameters

Voltage: ABB 07DI92 input voltage range 110V AC - 240V AC, P052 can be configured to adapt to an almost unlimited range of power input voltages, allowing it to be used in any power supply system commonly found in industrial environments.

Digital input signal: ABB 07DI92 is able to detect and process signals with various logic levels, such as logic 0: 0 - 30V DC, logic 1: 15 - 30V DC, so that the on/off or binary state of external devices can be accurately identified.

Input channel: How many input channels are used for this product 16 Multiple channels allow digital input signals to be received separately, suitable for connecting multiple sensors or devices at the same time and collecting large amounts of data at the same time.

Shape: When the input start signal changes to allow it to process and update the output or internal state, it has a relatively short response time. This fast intervention allows for the rapid monitoring and response to fluctuations within the signal output.

Features

Consistent signal integrity: A key aspect of the ABB 07DI92 is its ability to ensure consistent signal integrity. It uses filtering and isolation techniques to filter out electrical noise and interference generated by the system. This ultimately aids in the convergence of integrated systems by allowing better signal detection and processing without distortion.

Flexible operating modes: Up to a few operating modes can be configured, depending on the application requirements. For example, it can run in regular mode to handle normal signal detection, or in special mode to perform specific tasks such as debouncing the input signal (removing spurious transitions due to electrical noise or mechanical vibration). This flexibility allows it to be applied to different industrial examples.

Diagnostic capabilities: The ABB 07DI92 has diagnostic capabilities that allow the component to monitor its own health and the quality of the input signal it is receiving. If an abnormal situation occurs (broken wire, incorrect signal level, internal component failure, etc.), diagnostic messages or alarms can also be generated, which can be easily retrieved by the operator or integrated into a higher-level monitoring system. Table of contents This allows for rapid detection of problems and their resolution, reducing downtime.

Support for different industrial control systems: Compatible with different industrial control systems Standard communication interfaces such as Ethernet, Profibus, etc. can make it easy to integrate with programmable logic controllers (PLC), distributed control systems (DCS), or other automation platforms. This integration makes it very relevant in complex industrial automation architectures.

Application Scope

Production plants that manufacture vehicles, electronic products, or machinery: It can access digital input data from devices such as limit switches, proximity switches, or photoelectric sensors, which are deployed on the production line to detect the position, presence, or movement of objects. It does this by receiving signals and using them to control the operation of conveyor belts, robotic arms, and other automated facilities so that the production process proceeds smoothly.

Process control: This product can be used in industries such as chemical, pharmaceutical, and food processing to ensure accurate control of various parameters. Input data is collected from different monitoring devices. For example, it can read the status of a valve (open-closed) or read through a digital signal whether certain process steps are completed. The control system then uses this data to adjust process variables such as temperature, pressure, and flow rate to maintain the stability and quality of the production process.

Building Automation: ABB 07DI92 can be used to process digital signals in smart buildings (e.g. door sensor systems, identifying the on/off status of lighting switches and HVAC (heating, ventilation and air conditioning) systems monitoring damper or fan status). The integrated signals are passed through the building management system, helping to create an energy-saving and comfortable indoor environment.
