Brand: GE Description: IS400TCASH1AFD Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen GE IS400TCASH1AFD Integrates both thermocouple and analog current-loop measurements into YSIL safety loops for turbine overspeed, flame-failure, and lube-oil system trips.
|
Manufacture |
GE |
|
Model Number |
IS400TCASH1AFD |
|
Ordering Number |
IS400TCASH1AFD |
|
Catalog |
Mark VIe |
|
Description |
Core Analog Module Terminal Board |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.42 kg |
Product Overview

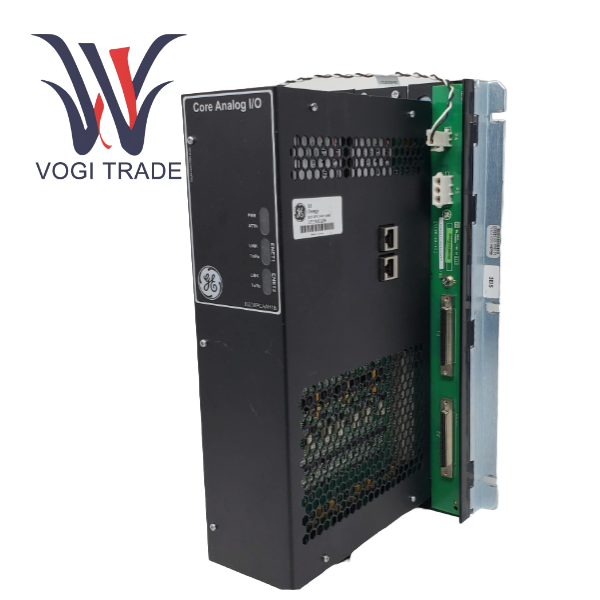

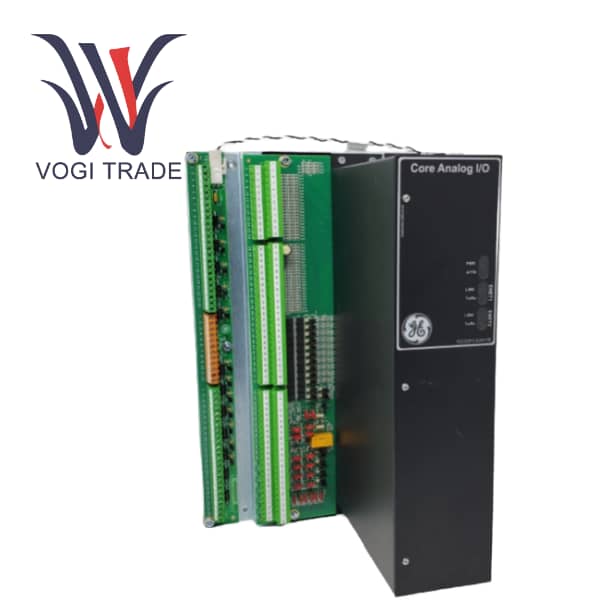

The IS400TCASH1AFD is part of the PCAA core analog module in the General Electric (GE) Mark VIe control system. It is a high-performance, high-reliability, industrial-grade analog signal input/output module. Designed for gas turbine control systems, it provides extensive analog signal processing capabilities and supports interfacing with a variety of industrial sensors and actuators, including thermocouples, 4-20mA current loops, LVDTs (Linear Variable Differential Transformers), servo drives, and vibration (seismic) signals.
Key Features
Multiple Signal Interfaces
The GE IS400TCASH1AFD supports up to 25 thermocouple signals (covering E, J, K, T, and S types).
10 channels of 4-20mA current input, among which two can be configured as 4-20mA or ±10V voltage input.
Two 4-20mA outputs and three redundant (TMR) 4-20mA outputs (implemented via TCAT).
6-channel LVDT excitation output and 12-channel LVDT feedback input.
6-channel servo coil driver, each supporting 10mA output.
12-channel vibration sensor input.
2 TTL pulse inputs and 2 magnetic pulse flow inputs.
High-Reliability Design
Supports single-mode, dual-mode and triple redundancy (TMR) configurations.
The built-in electronic ID ensures the correct matching of modules, terminal boards and cables.
The protection functions include soft start, current limiting and power management.
Flexible Configuration Options
Module configuration, calibration and diagnosis are achieved through ToolboxST.
Supports frame rates of 40ms and 10ms.
The optional TCAT terminal board enables signal fan-out to multiple PCAA modules.
Technical Specifications
A 28V DC ±5% voltage input is provided via the P5 interface.
The operating temperature range is from -30°C to +65°C.
The communication interface of GE IS400TCASH1AFD is dual RJ45 Ethernet ports (ENET1/ENET2), supporting 10/100 Mbps.
Core Analog Module Terminal Board
There are three status indicator lights: PWR (power), ATTN (status), and LINK/TxRx (network).
Terminal type: 120 plug-in European-style terminals.
Dimensions: 33.02 cm ×17.8 cm (13 inches ×7 inches).
Applications
Gas turbine control (GCV, IGV, SRV, etc.)
Industrial process control system
Power plants, oil and gas industries, ship propulsion systems
A highly reliable analog signal acquisition and conditioning system is required
Diagnostics and Maintenance
The Core Analog Module is equipped with built-in self-diagnostic functions, including: power supply monitoring, signal open circuit/short circuit detection, reference voltage and ADC/DAC health check, and servo output "self-destruction" protection.
Users can view detailed alarm codes and operation suggestions through ToolboxST.
Compatibility
The GE IS400TCASH1AFD is fully compatible with all Mark VIe I/O modules and controllers.
The Core Analog Module Terminal Board supports the use in conjunction with the JGPA shielded grounding board and the TCAT terminal board.
