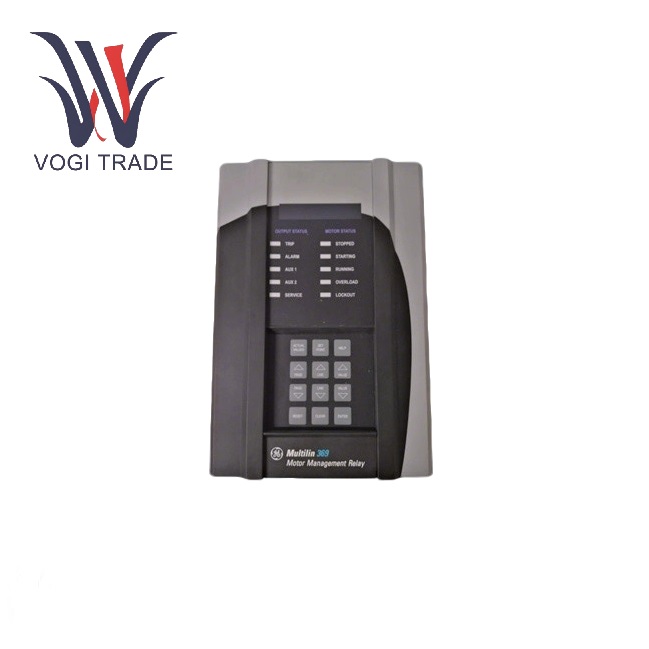

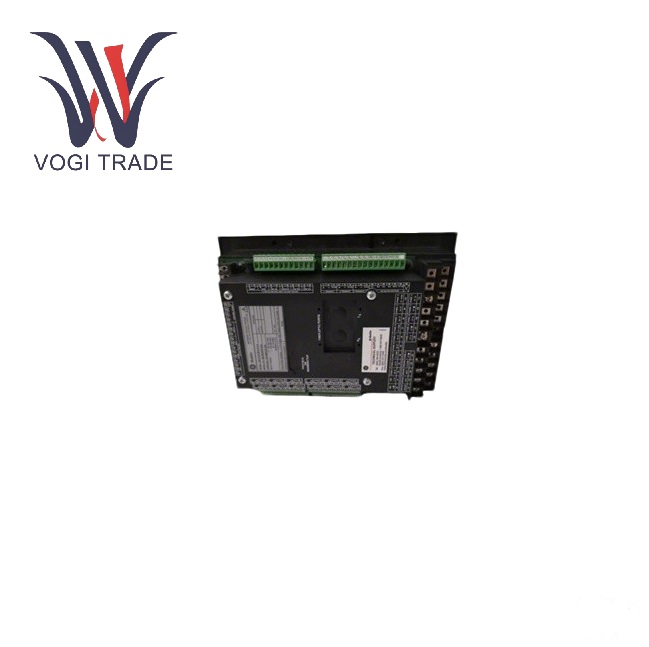

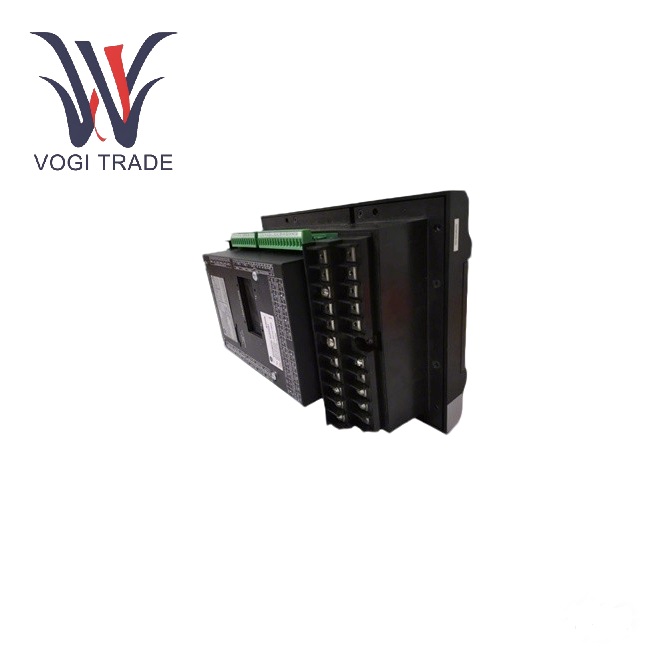

GE 369-HI-R-M-0-0-0-0

Power supply: 50-300 VDC / 60-265 VAC.

phase current input: 1 A and 5 A secondary.

Auxiliary contacts: 2 normally open, 2 normally closed.

Rated current: 20 A.

Ultimate breaking capacity: 30 A.

Number of recordable events: 512 events.

Communication interface: Isolated RS232, RS485 port.

RTD input: 12, is of 3-wire, optional 100Ω platinum, 100Ω nickel, 120Ω nickel, or 10Ω copper.

RTD sensing current ： 3mA.

The temperature measuring ranges：- 40°C to 200°C

Optional metering function, including 3 additional analog outputs, voltage transformer input, can measure kW-Hz-MWh Rs-kVA Variables .

Protection System Features: A short-circuit trip function can limit damage to motor components instead of exposing the motor to overcurrent scenarios. In so doing short-circuit time delays less than 200ms.

Features

Motor Protection and Monitoring: The GE 369 HI/R/M/0/0-0-0-0 provides safe comprehensive protection for motors, overload protection, short-circuit protection, undervoltage protection, etc. Also, it accurately measures and monitors motor parameters like current, voltage, temperature, etc. Abnormal conditions in motor operation are detected timely through real-time monitoring of these parameters and alarms can be sounded before the fault occurrence effectively saving the motor from damage.

Event recording and analysis: GE 369-HI-R-M-0-0-0-0 has the event recording function, and on tripping, it direct uploads the cause of the trip and respective temperature and data values at the time of tripping, thus assisting customers to pinpoint the faults with speed and accuracy enabling users to perform corrections and system revisions with ease.

Safety function: GE 369-HI-R-M-0-0-0-0 is fully designed for safety; when it detects any abnormal conditions, it instantly cuts the power supply to prevent damage to the motor or system, thereby ensuring safe operation.

Application

Mining industry: GE 369-HI-R-M-0-0-0-0 is used in mining equipment, transportation equipment, ventilation equipment and other motors in mines. It adapts to the harsh working environment of mines, ensures the normal operation of equipment, and improves the production efficiency and safety of mines.

Papermaking industry: GE 369-HI-R-M-0-0-0-0 is used for the protection and control of motor equipment such as paper machines, pulpers, blowers, etc., to ensure the stable operation of the paper production process and improve paper quality and production efficiency.

Natural gas ：The GE 369-HI-R-M-0-0-0 for managing natural gas compressors, pump station motors, etc., offers remote monitoring functionality. It would allow centralized management and supervision over equipment distributed in different locations, thereby increasing operation and maintenance efficiency of natural gas transportation and processing.
