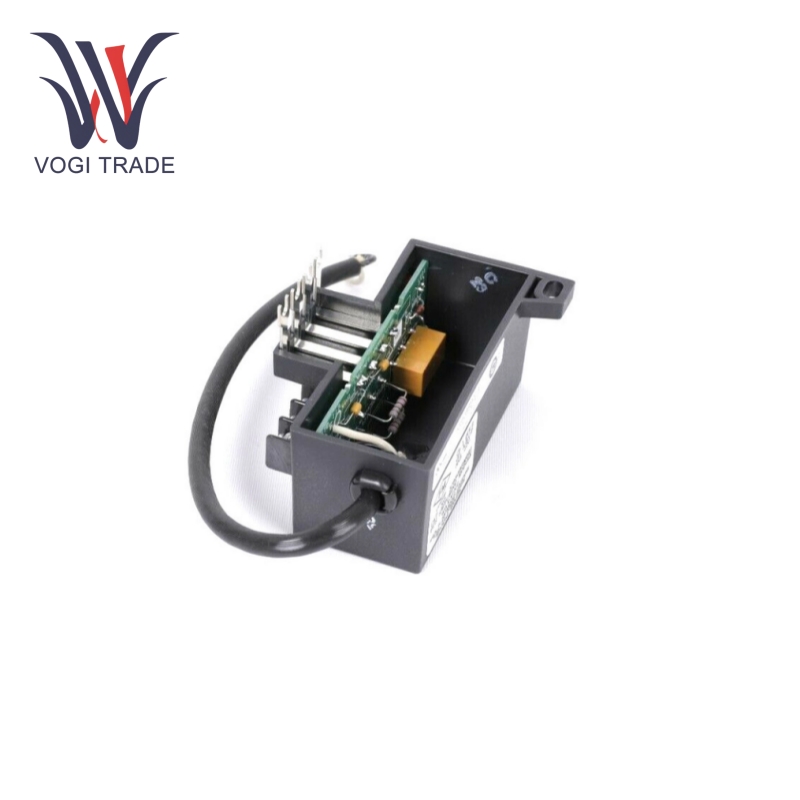

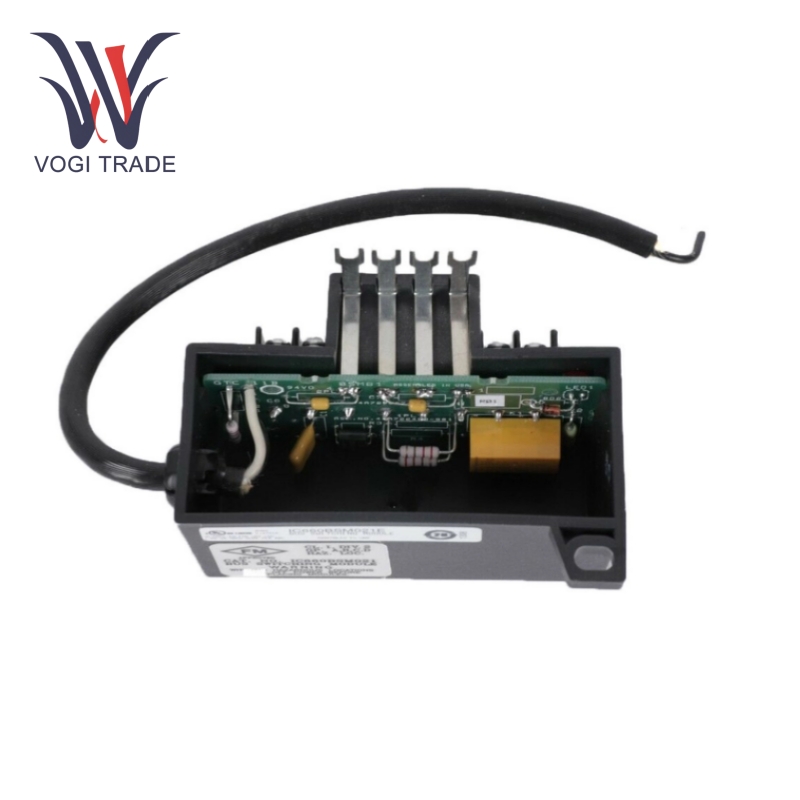

GE IC660BSM021

Specification

Input voltage: 24/48-VDC; 18-56 VDC, when Bus B is selected, and less than 4 VDC when Bus A is selected; polarity is not an issue.

Current consumption at 24 VDC, max 17mA and min 10mA: at 48 VDC, max 60mA and min 30mA.

Reliability: more than 500,000 operations.

Switch activation time: 20 ms, including switch bounce.

Switch release time: 70 ms.

Operating temperature: 32 °F to 140 °F, i.e. 0 °C to 60°C.

Storage temperature: 40 °F to 158 °F.

Humidity: 5-95%, non-condensing.

Number of connectable I/O blocks: one module connects up to 8 discrete and analog blocks to the dual bus. The extra modules allow up to 30 I/O blocks interfacing with the same dual bus.

Control method: its operation is controlled by the B-phase discrete block in the cluster. The first circuit of this discrete block serves as an output completely for this bus switching module. Upon communication loss on the current bus, this output will signal the module to switch the bus. It can also be commanded to switch the bus through the CPU or handheld monitor.

Features

Multi-module expansion: GE IC660BSM021 can connect up to 8 discrete and analog blocks to the dual bus. If more I/O blocks need to be connected, additional bus switching modules can be added to allow up to 30 I/O blocks to be connected to the same dual bus to meet the expansion needs of systems of different sizes.

Flexible bus switching: GE IC660BSM021 may be commanded to perform bus switching through either the CPU or handheld monitor commands. In case bus communication is lost, the module will automatically switch to the backup bus or may switch buses as needed manually, the bus switch activation is accomplished in less than 20 ms, ensuring continuity and timeliness of system communication.

Dual bus connection: GE IC660BSM021 can connect input/output devices to two serial buses simultaneously to afford the system redundant communication paths to improve the reliability and fault tolerance of the system. It will automatically switch when any one bus fails to allow the system to remain in operation.

Application

Chemical production process control system: GE IC660BSM021 can real-time monitoring and control of a large number of parameters during typical chemical production process, such as temperature, pressure, flow, liquid level, etc. GE IC660BSM021 could interface with a variety of sensors and controllers on site to build up a solid control network. For instance, in the unit of petrochemical refining, it can connect the crude oil distillation tower's temperature and pressure sensors and the flow control valve to the control system and ensure the stable operation of the production process as well as the quality of products. During this, it will be able to counter daytime to guarantee production safety.

Monitoring system of hazardous chemical storage: The storage sites of hazardous chemicals must be closely monitored for environmental parameters and equipment status in order to prevent accidents such as leakage and explosion. Various sensors and detectors can be connected to the monitoring system using GE IC660BSM021, which will generate alarm information in case of any abnormality and transmit it quickly to the monitoring center so that timely measures can be adopted to avoid the expansion of the accident, thus ensuring personnel safety and protecting the environment.

Building energy management system: GE IC660BSM021 can connect various energy metering equipment, environmental sensors and intelligent controllers in the building to realize real-time monitoring and analysis of energy consumption and intelligent control over air conditioning, lighting, and other equipment. For example, in large commercial buildings, GE IC660BSM021 transmits data from energy meters such as electricity meters, water meters, and gas meters to the energy management system through this module. At the same time, the indoor temperature of air conditioning will be variably adjusted along with lighting brightness according to indoor and outdoor environmental parameters as well as personnel activities, achieving energy conservation and emission reduction with improved energy utilization efficiency concerning building performance.

Security monitoring system: In the security monitoring system of intelligent buildings, GE IC660BSM021 can provide a linkage control function of information sharing between subsystems by connecting various access control systems, video surveillance systems and alarms into the central monitoring platform. In case of any abnormal situation arising, for example, when the illegal intrusion alarm is activated, the signal can be sent through GE IC660BSM021 to the associated devices, which can help automatically turn on lighting in that area, start the video recording, etc., thus improving the security of the building while enabling it to respond to emergencies.
