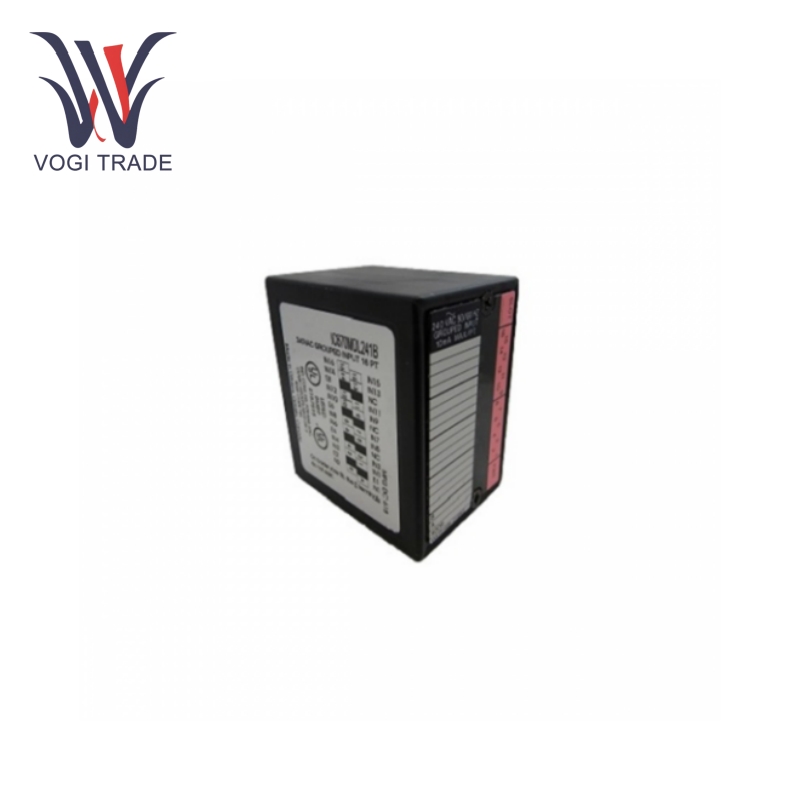

GE IC670MDL241

Input voltage: 240V AC or 24V DC, where 24V DC is positive/negative logic.

Input points: 16, divided into 2 isolation groups, with 8 input points in each group.

Response time: open response and close response times for each input are 20 milliseconds.

Input current: between 4 to 10 mA for open state and between 0 to 1.5 mA for closed state.

Input voltage range: In AC, 240V can go from zero volts to boil in voltage from 265V AC, has a frequency from 47 to 63 Hz.

Certifications: UL certified, meeting all relevant industrial standards.

Features

Many input points: 16 input points in GE IC670MDL241 allow for multiple external signal sources to monitor simultaneously, meeting the collection requirement of many devices in a complex environment, therefore avoiding wasting modules and, thus, reducing the cost and complexity of the system.

Multi-probe configuration: GE IC670MDL241 can be input via a bus interface unit or any other intelligent processing device. The user is tasked with flexibly setting the parameterizations and functional abilities for the input points through the live system applications, such as filtering time, thereby achieving adaptation and optimization for certain input signal types.

Isolated input design: The input points of GE IC670MDL241 are divided into 2 isolation groups, with its 8 input points. This isolation design can cause interference and tough interference due to cross talk removal, and stabilize and strengthen the reliability of signals, improve the immunity to disturbance a system has, and allow for an accurate signal passage amid rough industrial set-up.

Application

Substation automation system: GE IC670MDL241 may monitor the operating condition of the electrical equipment such as transformers, circuit breakers, busbars, etc., for the position-open status, oil temperature, gas pressure, etc., that allows the remote monitoring and automatic control equipment within the substations; therefore increasing operational reliability and the power quality of substations.

Transportation field: In the lane control system of the highway toll station, GE IC670MDL241 can be connected to the status sensor of the lane barrier machine, vehicle detector and other equipment. When the vehicle passes through the vehicle detector, the detector sends a signal to IC670MDL241, which is then transmitted to the PLC. The PLC controls the lifting and lowering of the lane barrier machine according to the preset rules to achieve orderly vehicle passage and toll management.

Intelligent Building: Given their wide range of applicability and effectiveness, GE IC670MDL241 can be used with cost-effectiveness for interconnecting various field devices.Principles of design and control in this field remain an uncompromised area of interest. The supervisory authority enlightening the field of elevator control in office buildings brings forth the use of GE IC670MDL241, that controls elevator car position, door opening and closing status, safety device trigger signals et al. When the elevator reaches the target floor and the leveling is accurate, the relevant position sensor transmits a signal to the GE IC670MDL241 , and the PLC controls the elevator door to open for safety and comfort of passengers.

Environmental Protection: In the waste gas treatment system of the waste incineration power plant, GE IC670MDL241 can be connected to waste gas monitoring sensors, such as sulfur dioxide, nitrogen oxide, and other pollutant concentration sensors. When the pollutant concentration exceeds the emission standard, the sensor transmits the signal to the PLC through GE IC670MDL241, the PLC then controls the corresponding waste gas treatment equipment to increase the treatment intensity, makes sure recovery technologies result in emissions meeting ecological standards, and reduces environmental pollution.
