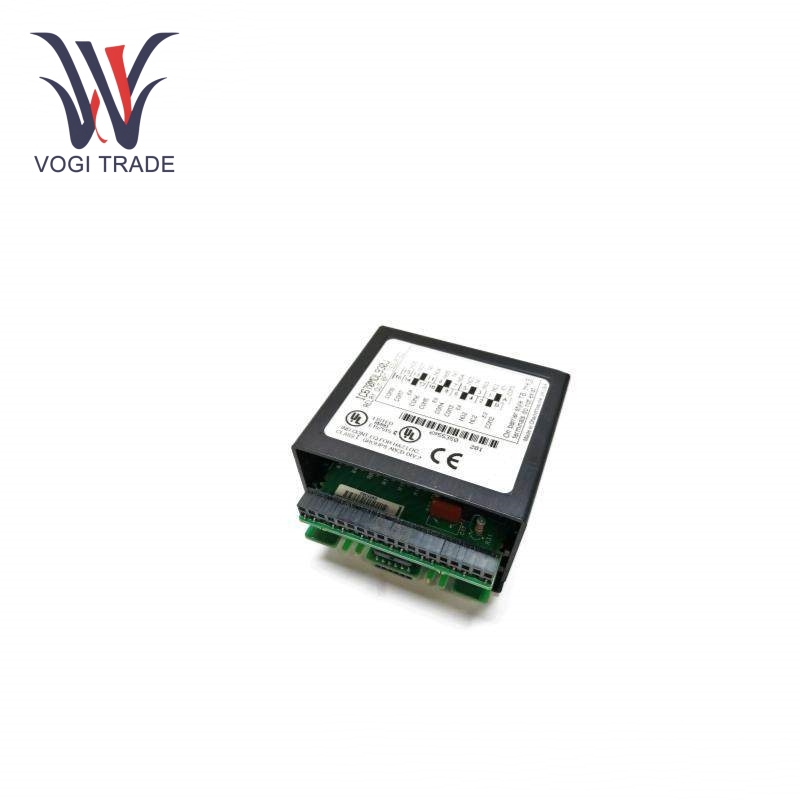

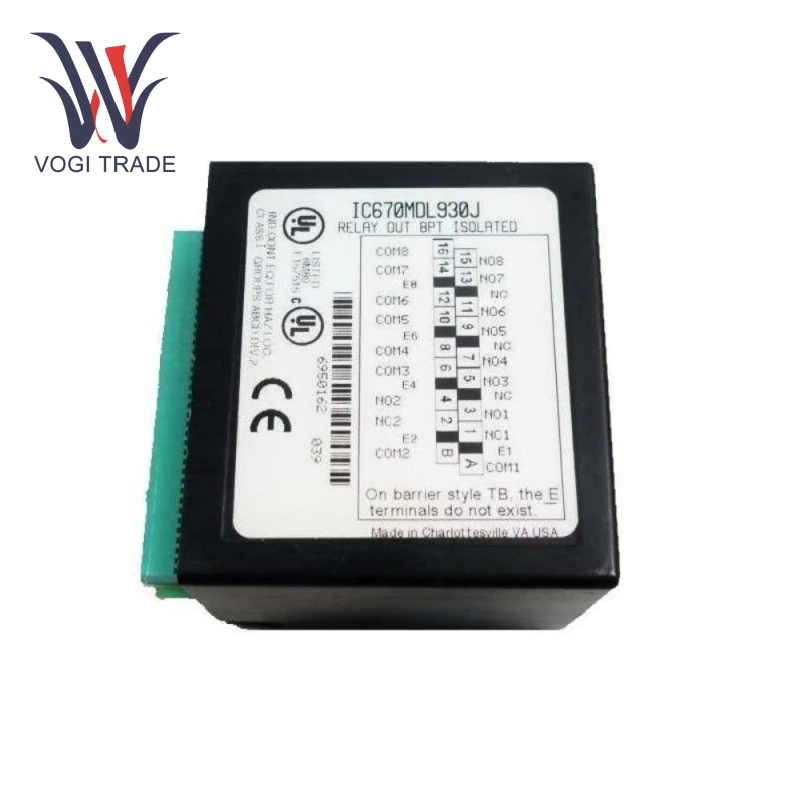

GE IC670MDL930

Rated voltage: 5/24/125V DC, 120/240V AC.

Voltage range: 0-130V DC, 0-265V AC.

Frequency range:47-63Hz.

Maximum load current: 16A/module (for a resistive load).

Number of output points: 8 relay output channels.

Output type: 6 A-type contacts (normally open) and 2 C-type contacts (normally open or normally closed), each contact is isolated from each other.

User input to logic: 250V AC continuous, 1500V AC for 1 minute.

User input to frame ground: 250V AC continuous, 1500V AC for 1 minute.

Group to group: 250V AC continuous, 1500V AC for 1 minute.

Features

Rich output channels: GE IC670MDL930- is equipped with 8 relay output channels, 6 of A1-type contact (normally open), 2 C-type contacts (normally open or normally closed), each contact isolated from one another, meeting all varieties of different control demands and with the capability for controlling various devices or different control loops independently.

Strong electrical compatibility: The rated voltage of 5/24/125V DC, 120/240V AC, respectively, covers a voltage range of  0-130V DC and 0-265V AC, and the frequency range of  47-63Hz; GE IC670MDL930 thus can work in different supply environments and relates itself readily to various electric distribution systems of industrial environments with no more recourse to the design of complicated power conversion/adapter systems.

Excellent isolation performance: GE IC670MDL930 has adequate insulation characteristics. With insulation voltage between user input to logic and user input to frame ground and, group-to-group is up to 250V AC continuous and 1500V AC for 1 minute, to prevent efficiently outside disturbance signals from intruding the internal circuit of the module, maintaining the precision and stability of signal transportation, which means improving reliability.

Intuitive state indication: available display of GE single LED components viewed in the transparent zone of the IC670MDL930 clearly show whether each of the output channels is active or not and if power supply is present, PWR LED goes on always, so that staffs in the field can familiarize themselves with the functioning status of the integrated circuit at once and diagnose failures with great ease and speed.

Application

Railway transport: The GE IC670MDL930 may be used in subway stations, railway stations, and other companies to control the operation of elevators and ticket vending machines and entry/exit gates. In summary, a ticket vending machine at the subway station is provided with control for both ticket issue and change through GE IC670MDL930, giving great convenience in ticket purchase services to passengers.

Intelligent Transportation System: GE IC670MDL930 is used in the coordination of traffic lights and variable information boards. For instance, at the urban road intersection, the GE IC670MDL930 is controlling the switching of traffic lights in real-time depending on the traffic flow variations, and for that reason improving the efficiency of the road traffic as a whole.

Beverage Filling: GE IC670MDL930 has been used to control the beverage filling machines, labeling machines, packaging machines, and quite a number of other such equipment. In the case of a beverage filling production line, GE IC670MDL930 exercises control over tasks including opening and closing of the filling located head(s), liquid level detection, and fulfilling all tasks to enable the successful filling, and subsequent packaging, of beverages.
