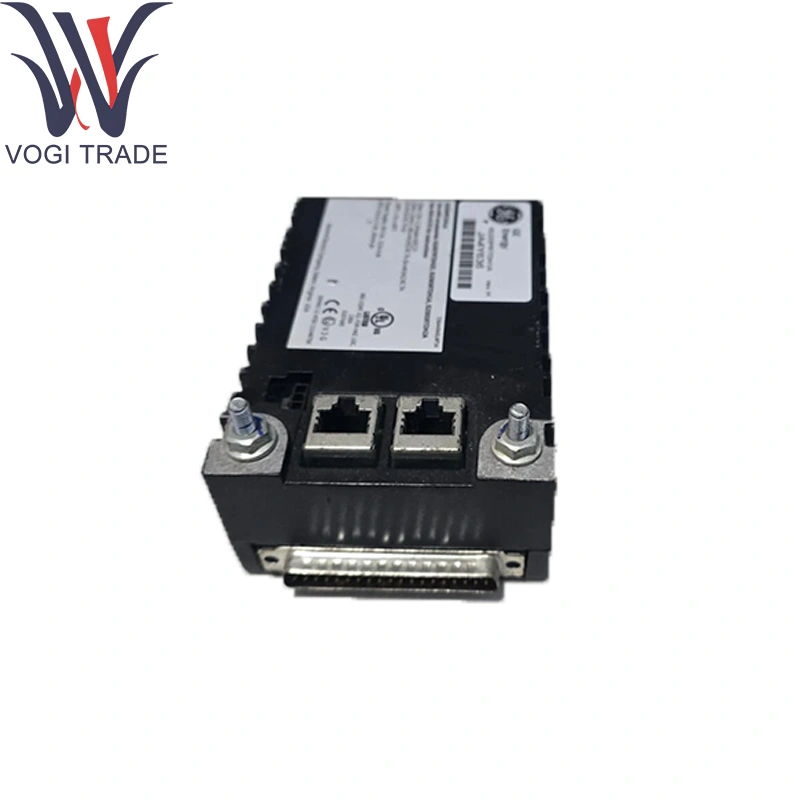

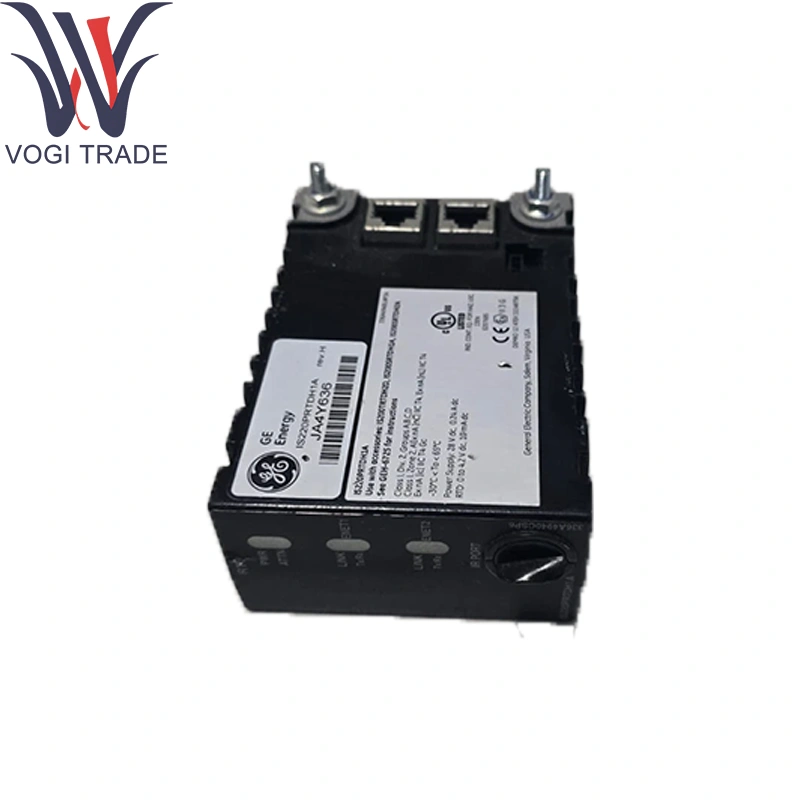

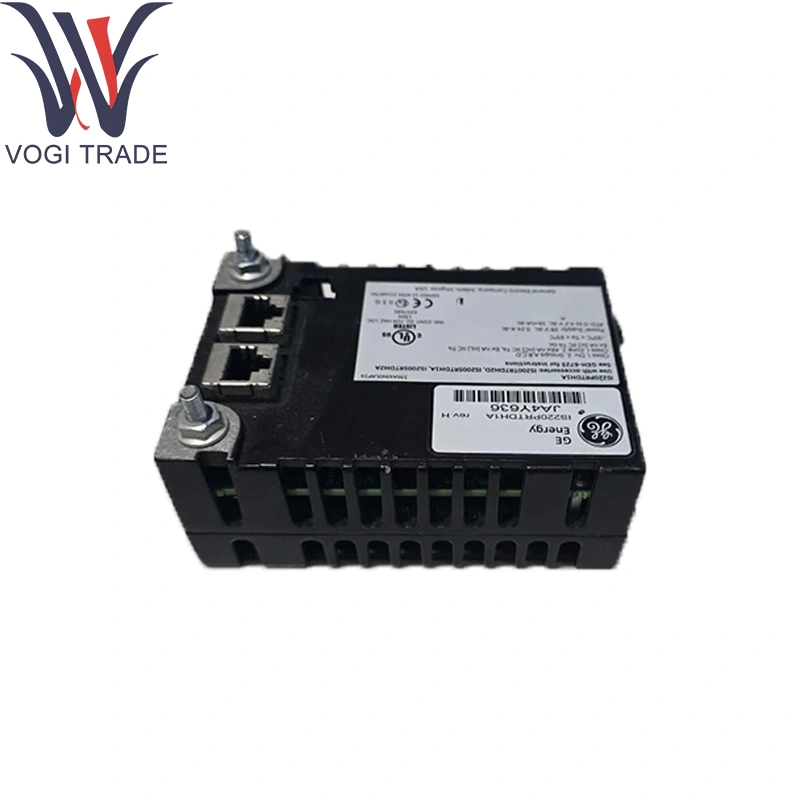

GE IS220PRTDH1A Resistance Temperature Device Input Module

Technical Parameters

Channels: 8 isolated RTD inputs

Supported Sensor Types: PT100 (IEC-751); PT1000 optional

Wiring Configurations: 2-, 3-, or 4-wire connection selectable per channel

Measurement Range: –200 °C to +850 °C

Accuracy: ± 0.1 °C (at 0 °C) to ± 0.2 °C (full scale)

Resolution: 0.01 °C

Sampling Rate: 10 samples/sec per channel

Cold-Junction Compensation: Internal per-channel compensation

Filtering: 4 ms hardware debounce/filter

Isolation: Reinforced channel-to-channel and channel-to-ground

Input Protection: Overvoltage clamp to ± 35 V; reverse-polarity protection

Connector: Right-angle PCB header for 52-position pluggable terminal block

GE IS220PRTDH1A Environmental Ratings:

Operating Temp: –30 °C to +65 °C

Storage Temp: –40 °C to +85 °C

Humidity: Up to 95 % RH, non-condensing

Product function

GE IS220PRTDH1A Resistance Temperature Device Input Module, linearizes, and digitizes RTD sensor signals, providing high-accuracy temperature feedback over the IONet Ethernet bus to the Mark VIe CPU. Ensures rapid, reliable temperature data for control loops, safety interlocks, and trending without user-level configuration.

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly

Controller Module: Mark VIe CPU (e.g., IS200TPROH1C)

Complementary I/O Boards:

Analog inputs (combustion, pressure, voltage)

Discrete inputs and relay outputs

Safety-critical I/O packs

Extension components

Pluggable Terminal Blocks: Screw-clamp blocks keyed to prevent mis-insertion

DIN-Rail & Panel-Mount Kits: Adapter clips and angle brackets for 35 mm rails or panel installation

Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression

Spare Parts: Replacement RTD terminal blocks and PCB-header kits

Software support

Configuration & Calibration:

Sensor type and wiring method set via GE ControlST™/ToolboxST™ templates

On-line calibration wizard for offset and gain adjustments

Diagnostics & Monitoring:

Real-time channel-health and open-circuit detection reported in HMI and OPC tags

Self-test on power-up with diagnostic flags available to controller diagnostics

Firmware Updates: Delivered as part of Mark VIe system software; applied via ToolboxST™

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and the RTD Input Module Reference Manual
