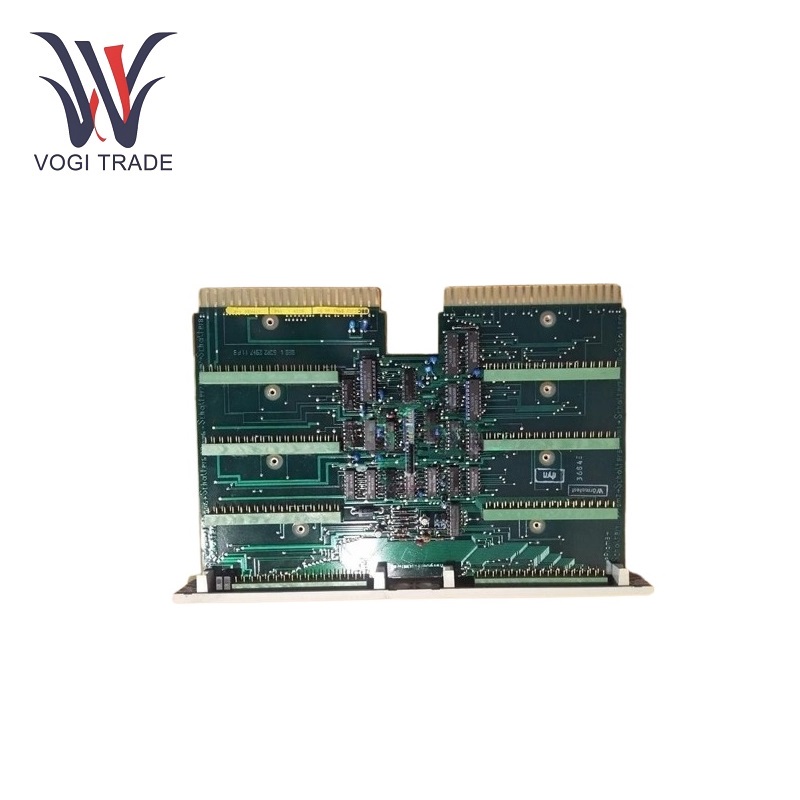

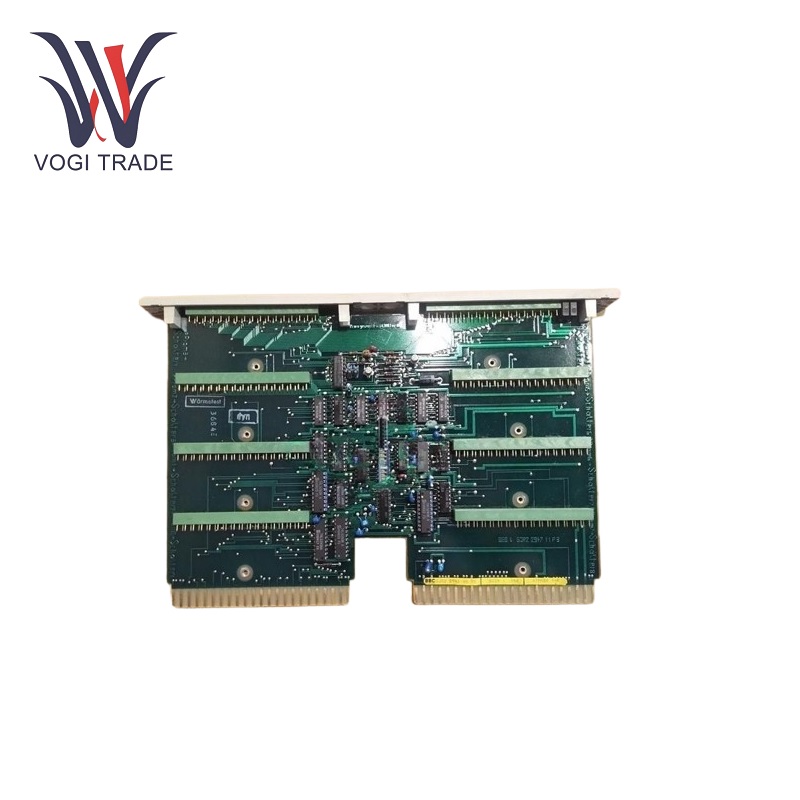

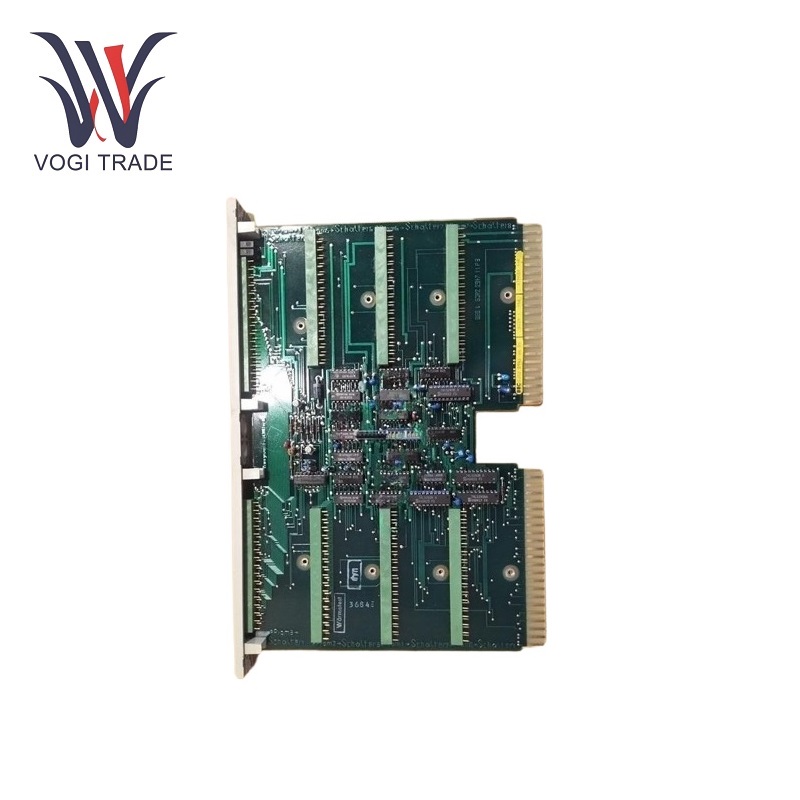

ABB 07PR22

Technical Parameters

Rated Voltage: ABB 07PR22 is usually able to withstand voltages from 230V AC  to solve the integration of different energy supply configurations in industrial and manufacturing environments.

Current: For ABB 07PR22, the current carrying capacity ranges from approximately10A. This enables it to safely handle electrical loads and effectively distribute power to connected components or circuits.

Power Consumption: It is a relatively low-power type, with a power consumption of approximately 5W . Due to this energy-saving feature, it is the best choice for applications where power consumption must be reduced.

Size: It is designed with reasonable and moderate size, easy to install, and can be conveniently placed in a distribution board or control cabinet without taking up too much space.

Features

Overload Protection Function: When the current passes through the circuit, ABB 07PR22 continuously monitors it and trips if it exceeds the set safety level. Therefore, it also helps protect electrical components from damage caused by excessive current and minimizes the risk of electrical fire or other safety hazards.

Short-circuit protection: ABB 07PR22 also has the best short-circuit protection function. However, if a short circuit occurs in the connected circuit, it can quickly detect the abnormal state in a short time and cut off the wiring power supply to protect the integrity of the entire electrical system and avoid expensive repair costs.

Adjustable settings: Depending on the application requirements, the operator can set the trip current level, overload protection delay setting and other parameters. This enables it to adapt to different operating systems and electrical load characteristics.

Communication interface: ABB 07PR22 is equipped with a communication interface (x1) for remote monitoring and control (e.g. Ethernet, Modbus) Operators can remotely query the device status, receive alarm messages when abnormalities occur, and even control the operation of the device from a distance, thereby simplifying system management and improving work efficiency.

Application Scope

Industrial Plants: ABB 07PR22 is commonly used in power distribution systems in manufacturing facilities, such as factories producing machinery, electronics or consumer goods. It ensures a smooth and uninterrupted production process by protecting motors, production lines and other electrical equipment from overloads and short circuits.

Commercial Buildings: ABB 07PR22 is an important part of the power distribution network in office buildings, shopping malls and hotels. You are not a certified electrical engineer who has been trained and has knowledge of safe and reliable operation of the building's electrical infrastructure.

Substations and Distribution Stations: ABB 07PR22 is used for protection and control of small and medium-sized distribution networks in substations and distribution stations. It regulates the flow of power and protects distribution lines and ancillary equipment from electrical faults, ensuring a stable power supply to end users.
