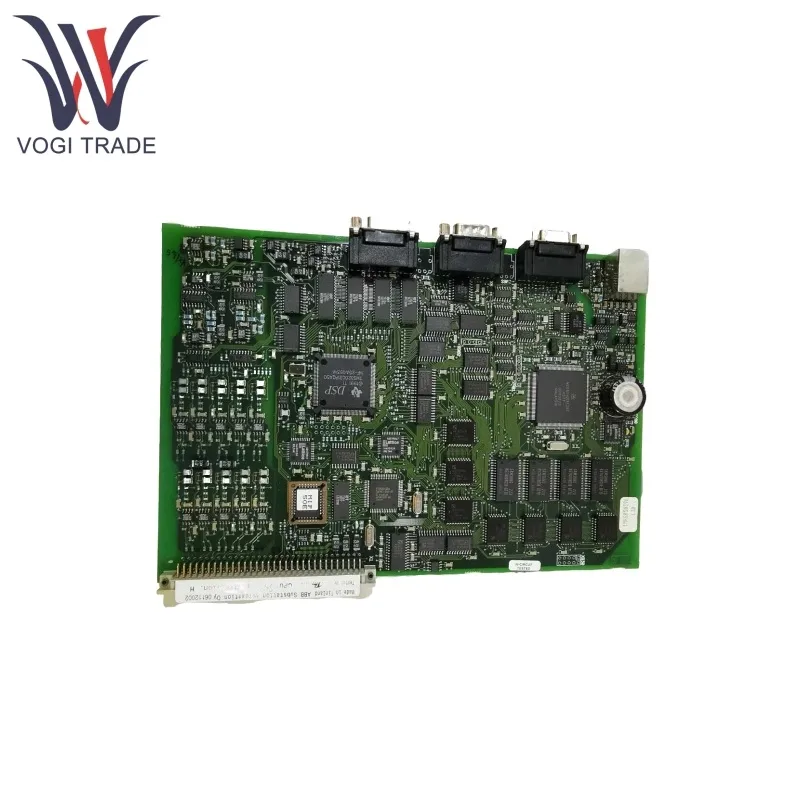

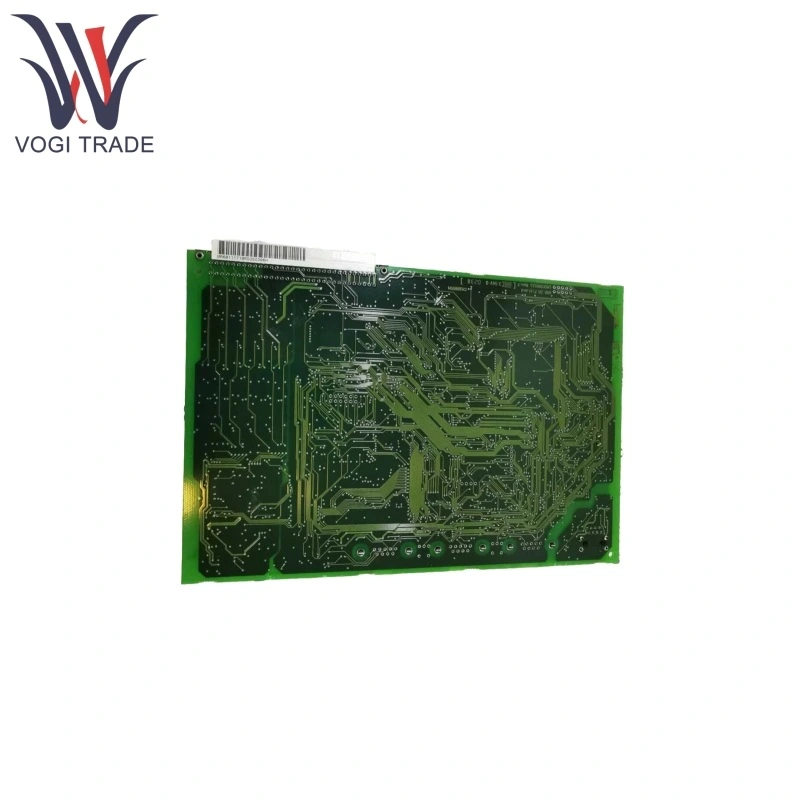

Brand: ABB Description: Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB 1MSC980111 is mainly applied for signal acquisition, processing, and energy-saving control, ect. With modular design, this board can finish control room embedded perfectly and realize real-time data interaction and system monitoring in industry environment.
|
Manufacture |
ABB |
|
Model Number |
1MSC980111 |
|
Ordering Number |
1MSC980111 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
16*12*6cm |
|
Weight |
0.6kg |
Product Features
ABB 1MSC980111 supports multiple analog and digital inputs, capable of simultaneously processing 20,524 I/O signals, making it suitable for multi-parameter monitoring in complex industrial scenarios.
ABB 1MSC980111 is designed to be included in decentralised variable speed drive systems and offers energy savings through its efficient control algorithms.
Utilizing industrial-grade components, ABB 1MSC980111 can operate under a wide temperature range (-20°C to +60°C) and high interference resistance, making it suitable for harsh environments.
ABB 1MSC980111 supports several industrial bus protocols, can be easily integrated with PLC and DCS systems.
Product Functions
Signal Acquisition:
ABB 1MSC980111 converts analog signals from sensor inputs into digital signals via an onboard ADC module, supporting multi-channel parallel sampling.
Data Processing:
ABB 1MSC980111 built-in microprocessor performs signal filtering, linearization compensation, and anomaly detection to generate standardized data for use by the control system.
Communication Interaction:
ABB 1MSC980111 transmits the data in real time to main controller by use of the backplane bus, for controlling a closed loop.
Energy-Saving Mechanism:
When working in conjunction with a variable frequency drive, ABB 1MSC980111 dynamically adjusts motor speed based on load conditions to reduce energy consumption (typical energy savings range from 15% to 30%).
Product Parameter
The following detail is for ABB 1MSC980111.
Analog input: 4-20mA / 0-10V
Digital input: dry contact / TTL level
Signal Resolution: 12-bit ADC conversion accuracy, ensuring high-precision data acquisition
Operating Voltage: DC 24V (±10%), supporting redundant power input to enhance reliability
Communication Rate: Supports a maximum rate of 12Mbps (Profibus DP), meeting the requirements of real-time control
Protection Class: IP20 (for installation inside control cabinets), providing dust and splash protection
