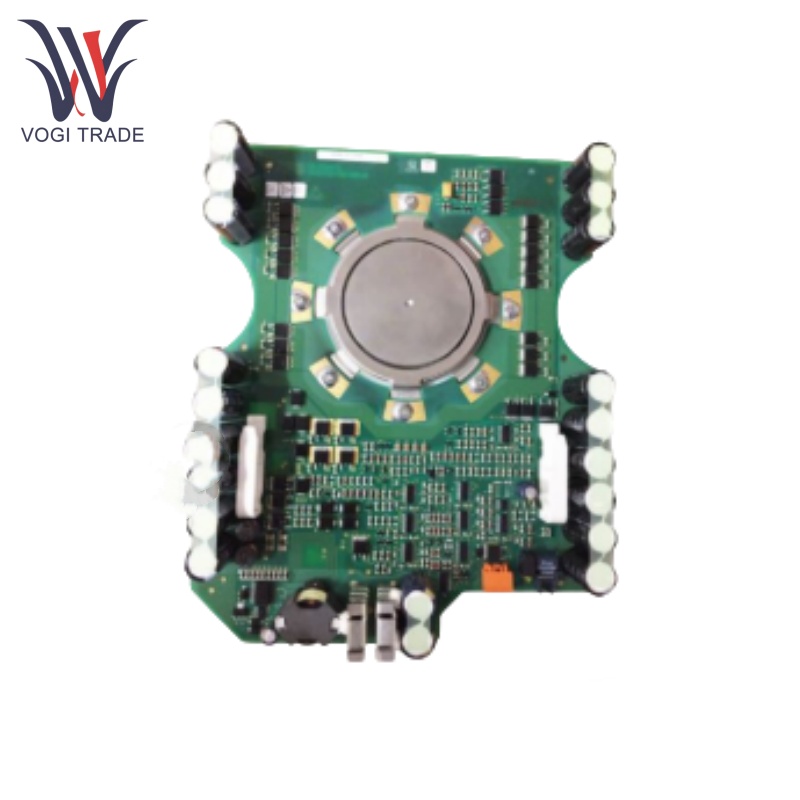

ABB 5SDF1654L0001

Operating Parameters

Power Supply:24V DC power supply.

Operating Temperature Range: -20°C to 60°C

Humidity Range: 5% to 95%, non-condensing

Protection Rating:an IP20 protection rating

Communication Protocols: The device supports various communication protocols such as Modbus and Profibus

Product Functions

Signal Conversion: The signal processing system has the ability to convert different types of signals.ABB 5SDF1654L0001 can change digital signals to analog values. As such, it is a key to interfacing various types of equipment and ensuring the data is compatible with different systems.

Communication Integration:This ensures it works in harmony with other components in the automation process. Thus, ABB 5SDF1654L0001 can also play the role of an interface of the devices.it can make data transfer and communication quite efficient.

Data Monitoring: Allows for real time data monitoring and outlier detect in complex systems. This involves monitoring things like equipment status, signal levels, and operational conditions.

Remote Asset Management: The ABB 5SDF1654L0001 can be used as part of a strategy for remote asset management. It enables operators to troubleshoot issues remotely and make adjustments without having to be at the installation site in the first place.

Alarm management: In case of abnormal conditions, the device can generate alarms or status notifications. These are the alarms that help in notifying the operator about possible problems, Stats before it all goes south.

Data Logging and Reporting:ABB 5SDF1654L0001 has the ability to log operational data, which can be used to aid in analysis of how the system is performing over time. They can look at data logs to improve processes or troubleshoot common problems.

Installation

Preparation of Installation Site:Prepare for InstallationKeep the required area dry, clean, and free from dust and excessive moisture.

Device Mount: The ABB 5SDF1654L0001 will mount on DIN rail or the panel directly

Wiring Connections: Follow the wiring diagram provided in the user manual carefully to connect the device to its power source and field devices.

Integrate System Communication Lines: If the device is part of a network, tether it to the correct communication bus, as defined by the system. Be extra careful about wiring the communication lines properly to prevent errors in signaling.

Installing the device physically: Once the device is added, physically install the device as required by the system. These include the baud rate, device address, and data format.

Testing the Installation: Once the ABB is wired up and configured, it is advisable to test its operation. See if it interacts with other system components, responds to signals correctly, and triggers any required alarms or status reports.

Application Scope

Motor Drives: Used in variable frequency drives to control AC motors.

Power Converters: Integral in AC/DC and DC/AC power conversion systems.

Industrial Heating: Used in high-power heating systems and induction heating.

Renewable Energy: Utilized in solar inverters and wind turbine systems for effective power conversion.

UPS Systems: Incorporated in uninterruptible power supplies for reliable backup power.

Rail Systems: Used in traction circuits for electric cars and locomotives

Troubleshooting

Check Power Supply: Confirm that the 24V DC power supply is stable and no lower than the acceptable min. voltage. Most device malfunction problems are rooted in power so check for faulty wiring, blown fuses or unstable power sources.

Check Wiring Connections: Loose or improper wiring can lead to intermittent failures or communication problems.

Check Communication Configuration: Make sure the communication settings are set up accurately and correspond with those of other connected devices. If communication parameters such as baud rate or parity do not match, this can prevent or disrupt data transfer or can even make a system inoperable.

Monitor Alarms and Error Codes: If the device can provide diagnostic information, such as through blinking LEDs or other error codes, monitor these closely.

Reset the Device: In the event that the device is unresponsive or is behaving abnormally, factory resetting it may help. You might try this, because sometimes it clears configuration errors or software glitches.
