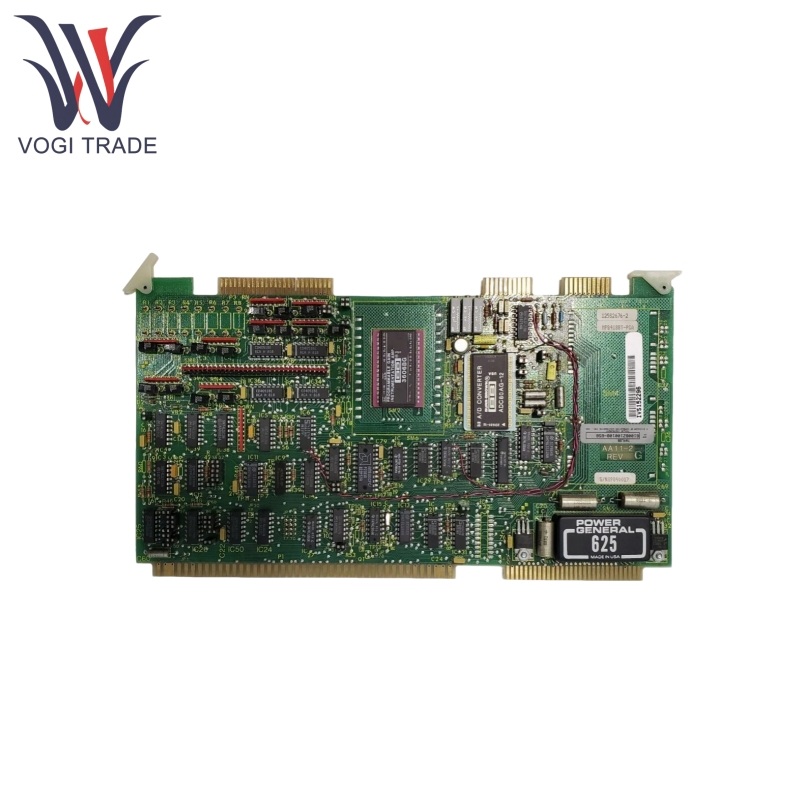

Brand: ABB Description: Analog Expander Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB 6100BZ10010B is designed for high-precision signal acquisition. Its core function is to convert analog signals output by external sensors or devices into digital signals for processing by PLCs, DCSs, or other control systems and widely used in industrial process control, data acquisition, and automated monitoring applications.
|
Manufacture |
ABB |
|
Model Number |
6100BZ10010B |
|
Ordering Number |
6100BZ10010B |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8537101190 |
|
Dimension |
12*10*6cm |
|
Weight |
0.6kg |
ABB 6100BZ10010B has ±0.01% full-scale accuracy which securely proved its stable measurements in industrial conditions.
ABB 6100BZ10010B is capable of interfacing with analog signals (voltage and current (4-20mA)), so it can work with most sensors.
ABB 6100BZ10010B is designed with RFI/EMV filters inbuilt into it to protect signals from undesired electromagnetic interference.
ABB 6100BZ10010B supports hot-swapping, facilitating maintenance and expansion of system channel counts.
ABB 6100BZ10010B constantly checks the conditions of the input signals and gives fault alarms and self-diagnostic messages.
Product Using Principle
ABB 6100BZ10010B receives external analog signals (such as the 4-20mA output from a pressure sensor) via terminals.
It has built-in circuits that filter, amplify, and linearize the signal to ensure signal stability.
It uses a high-speed ADC (analog-to-digital converter) to convert the analog signal into a digital value (such as a 16-bit binary value).
The converted digital signals are transmitted to the control system via a backplane bus or communication interface (such as Profibus) for logical operations or monitoring.
Product Application
ABB 6100BZ10010B can monitor temperature, pressure, and flow in the chemical and oil and gas industries.
It can monitor the status of production line equipment in the manufacturing industry, such as motor current and vibration signals.
It can collect photovoltaic panel voltage/current data from solar power stations.
It can monitor power parameters in smart grids, such as busbar voltage and load current.
It can connect to temperature and humidity sensor signals in air conditioning systems.
It can process position feedback signals from elevator control systems.
It can perform high-precision experimental data collection, such as material stress testing and environmental simulation experiments.
Product Parameter
The following detail is for ABB 6100BZ10010B.
Input type: Voltage (0-10V, ±10V), current (4-20mA), thermocouple (optional).
Resolution: 16-bit (typical value), supporting high dynamic range signal acquisition.
Number of input channels: 8 channels (configurable as single-ended or differential input).
Accuracy: ±0.05% of full scale (at 25℃).
Sampling rate: 100Hz per channel (configurable).
Supply voltage: 24V DC ±10% (power consumption approximately 3W).
Protection class: IP20 (for indoor use), must be installed in a control cabinet.
Communication interface: Supports protocols such as Modbus RTU and Profibus DP, enabling seamless integration with mainstream control systems.
