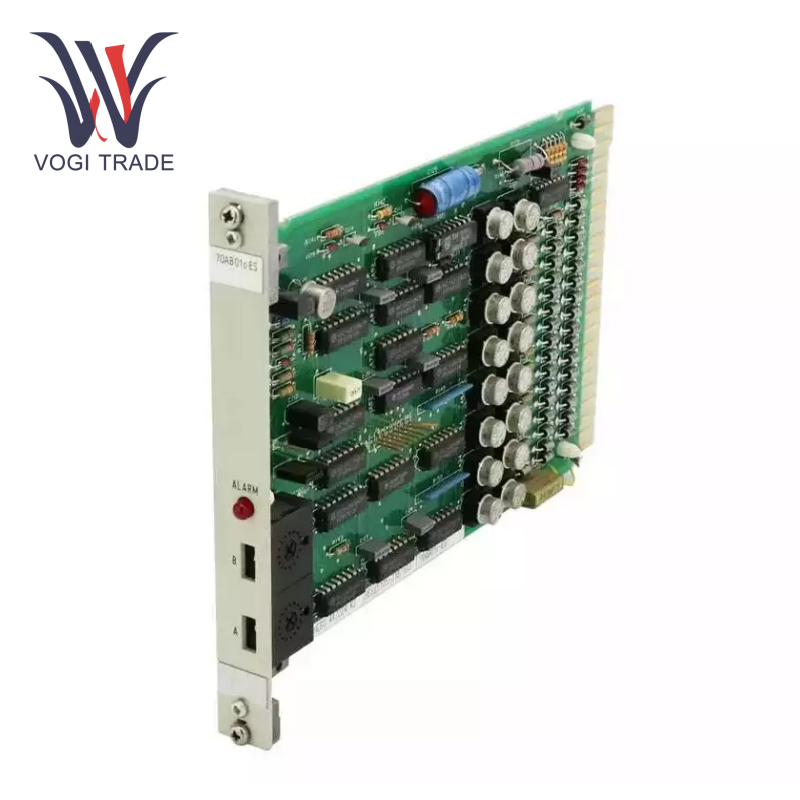

ABB 70AB01C-ES HESG 447224 R2

Technical Parameters

Communication interface: ABB 70AB01C-ES HESG 447224 R2 supports local bus UART, compatible with P13 configuration software

Output channels: 16 internal source outputs, supports driving input cards, indicator lights, relays and other devices

Configuration function: parameter setting and monitoring through the front-end configuration port and P13 Configurator software, supports channel simulation/forced testing

Compatibility: Applicable to ABB P13 system, supports the full local bus address range

Installation method: DIN rail fixed, suitable for standard industrial control cabinets

Anti-interference design: integrated optical isolation technology to reduce the risk of signal interference

Core Functions

Signal output: receive controller instructions through the local bus, drive external devices (such as relays, indicator lights), and realize automatic control logic

Dynamic debugging: ABB 70AB01C-ES HESG 447224 R2 supports channel-level simulation and force functions, simplifies the loop inspection and debugging process after maintenance

Redundant design: seamlessly integrated with ABB P13 system, supports multi-module collaborative work, and improves system reliability

Hardware architecture: based on customized UART and digital signal processing engine, optimizes real-time response speed and signal accuracy

Software interaction: remote monitoring and parameter configuration through P13 Configurator, compatible with a variety of control algorithms (such as PID, fuzzy control)

Installation

Hardware installation: Fix the module on the DIN rail in the control cabinet, ensure good ventilation and heat dissipation, connect the local bus cable and the external device power supply, and make sure that the ground terminal is reliably connected.

Software configuration: Use ABB Control Builder or P13 Configurator to configure the output logic, address allocation and alarm threshold.
