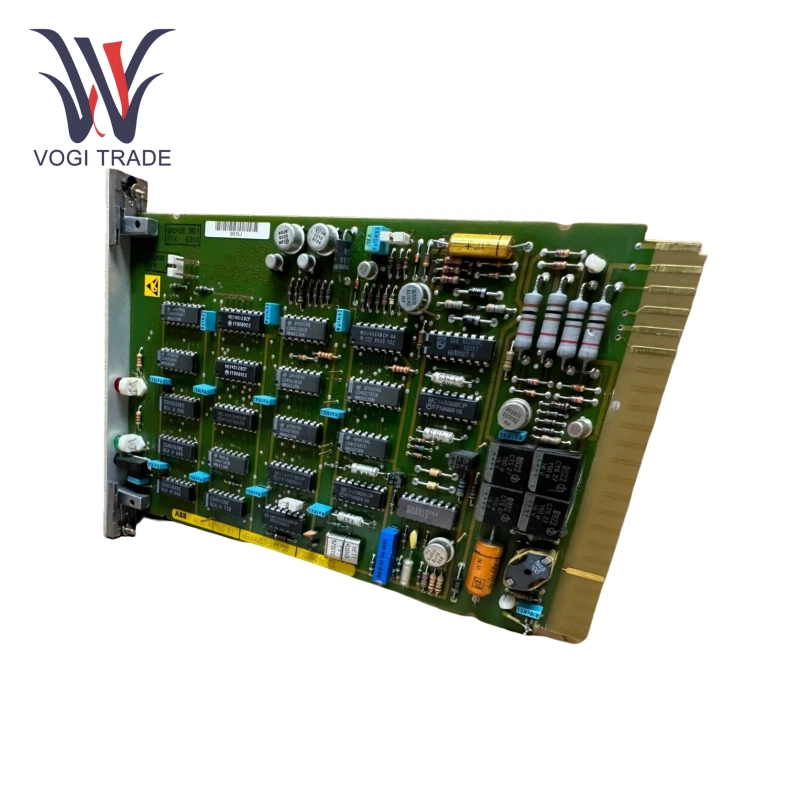

Brand: ABB Description: Bus Traffic Director Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen The ABB 70BV01C-ES HESG447260R1 is a multifunctional industrial control module for bus communication management and safety control.
|
Manufacture |
ABB |
|
Model Number |
70BV01C-ES |
|
Ordering Number |
HESG447260R1 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
30*20*4cm |
|
Packing Dimension |
32*24*6cm |
|
Weight |
0.8kg |
Technical Parameters
Supply voltage: 24V DC
Communication interface: Procontrol P bus interface
Transmission rate: up to 10 Mbps
Operating Temperature: -20℃ ~ +60
Protection grade: IP65
Input voltage range: 230VAC ~ 500VAC
Principle of use
Bus control: ABB 70BV01C-ES HESG447260R1 achieves high-speed data exchange through the Procontrol P bus, coordinates communication between multiple modules, and supports flexible expansion of the system scale.
Signal conversion: The ABB 70BV01C-ES HESG447260R1 converts digital/analogue input signals (e.g. sensor data, switch status) to standard bus signals to ensure compatibility and consistency.
Multi-stage safety stop: Supports Off2 (quick power-off) and Off3 (emergency stop) functions:
Off2: Immediately cuts off DC current for quick stop scenarios (e.g. motor overload) with a response time of less than 20 ms.
Off3: Safe shutdown by ramp stop or coasting stop mode, need to be set with time relay to prevent power contactor misoperation .
Power and Energy Management: Stabilises DC bus voltage through closed-loop control, supports optimal energy distribution of multi-axis drive units and reduces system energy consumption.
Typical applications
Petrochemical industry: ABB 70BV01C-ES HESG447260R1 is used for reactor pressure monitoring and emergency shutdown control.
Power system: to achieve grid voltage stability and energy feedback.
Manufacturing industry: multi-axis robot drive and production line automation management.
