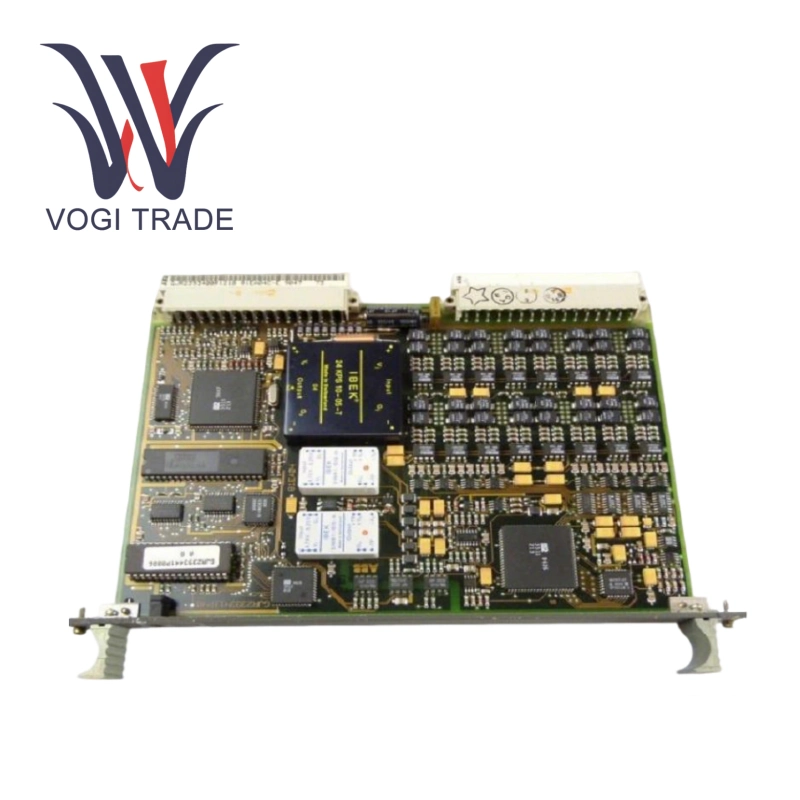

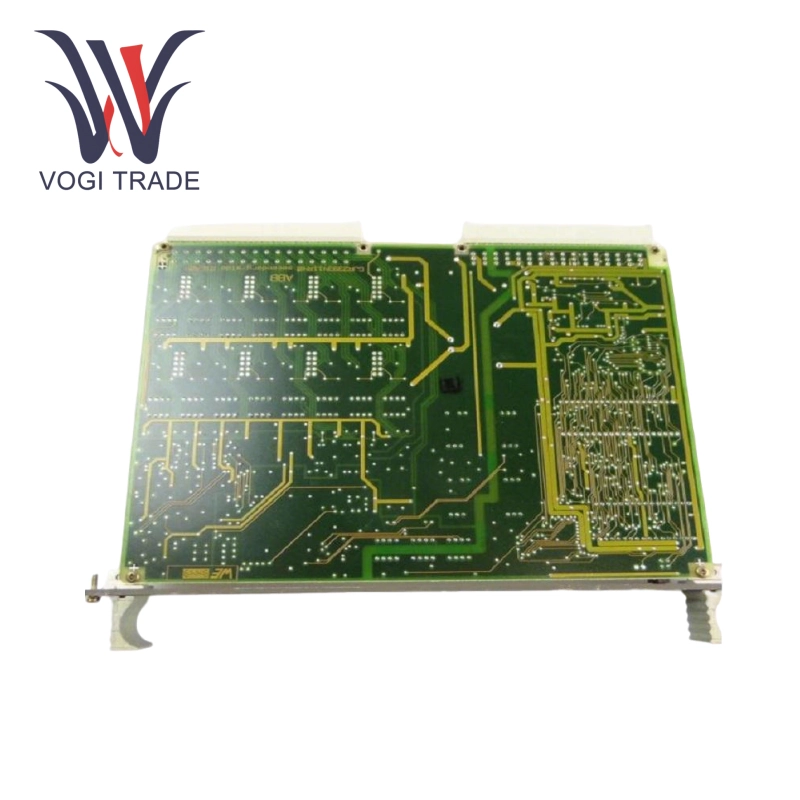

ABB 81EA04C-E GJR2393400R1210

Technical parameters

Rated voltage: 24V DC

Output channels: 8 independent digital outputs

Protection level: IP20

Operating temperature: -25°C to +60°C

Communication protocol: Support MODBUS RTU and PROFIBUS DP-V1

Expansion capability: Configurable auxiliary contact module and mechanical interlock kit

Functional features

1. High-precision motor control: ABB 81EA04C-E GJR2393400R1210 adopts reinforced contact material and arc extinguishing technology, withstands frequent start-stop impact, and has a contact life of more than one million times, ensuring long-term stable operation of the motor.

2. Wide voltage adaptability: Supports 24V DC industrial standard power supply, compatible with complex power grid environment, and coil power consumption is 15% lower than the industry average.

3. Modular system integration: ABB 81EA04C-E GJR2393400R1210 can be seamlessly connected to ABB T series thermal overload relays and E series electronic protection units to achieve dual protection of overload/short circuit.

4. Compact intelligent operation and maintenance: Structural optimization saves 35% of installation space, plug-in terminals support blind wiring, built-in LED status indicator, and fault diagnosis efficiency is increased by 50%.

Application scenarios

Industrial production line motor control: 380V AC conveyor belt, centrifugal fan, hydraulic pump group start, stop and reversing management.

Energy equipment on-off protection: substation capacitor switching cabinet, reactive power compensation device main circuit control.

Heavy machinery drive unit: bridge crane travel motor, CNC machine tool spindle drive module.

Automated packaging system: filling machine metering pump, sealing machine heating element timing on-off control.
