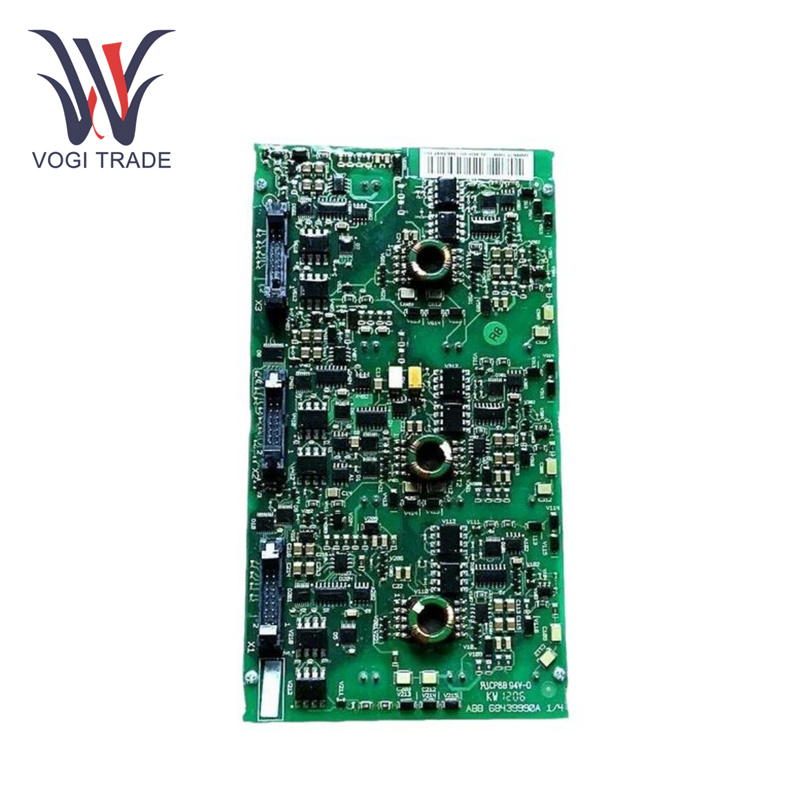

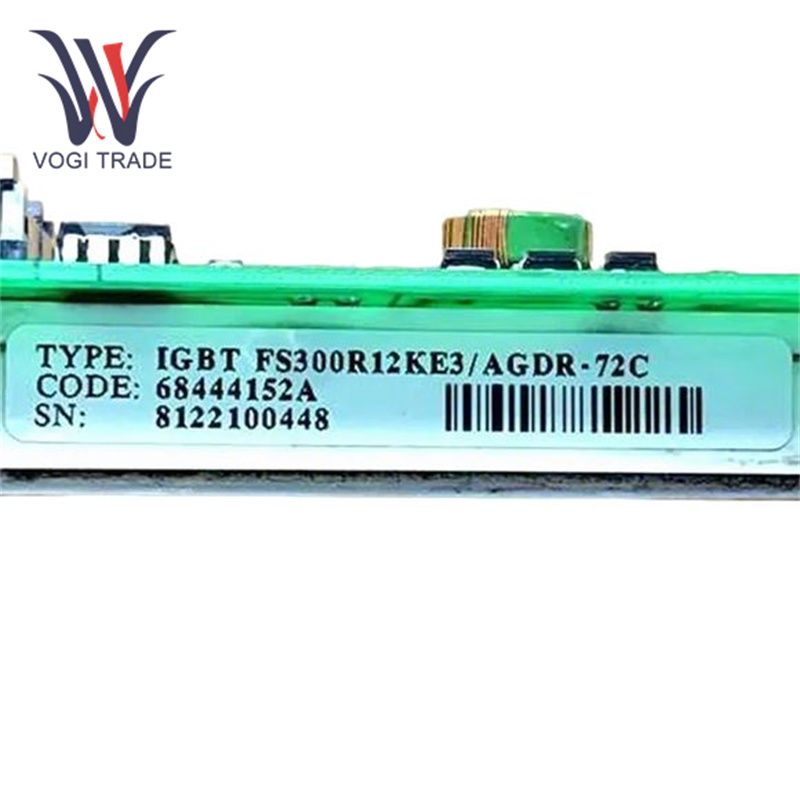

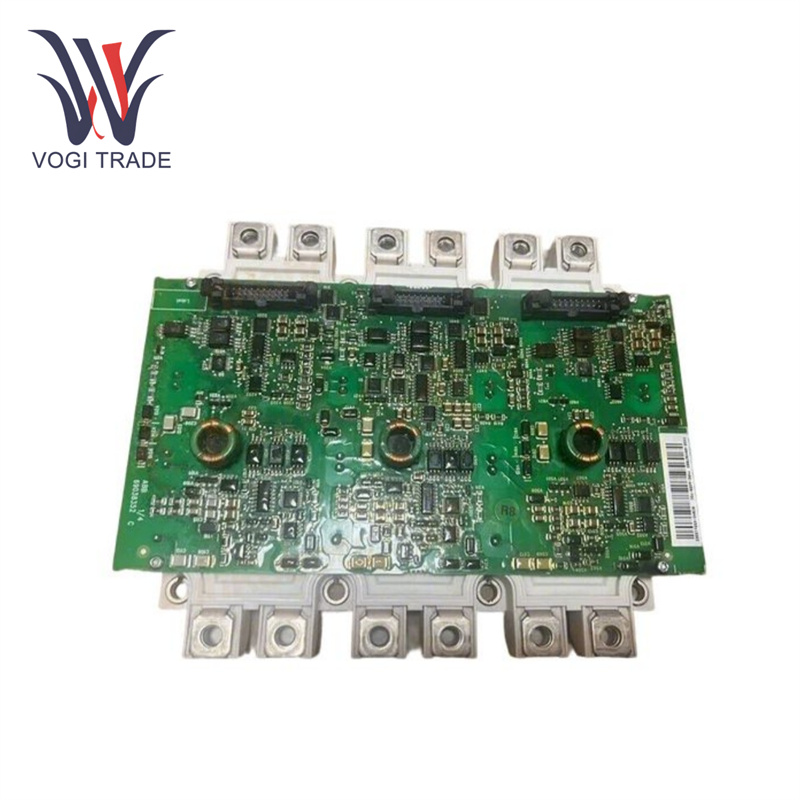

Brand: ABB Description: IGBT Drive Module Condition: Brand New Certificate:COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB AGDR-72C is an IGBT module that enables smoother motor control and better system performance. It is compatible with a variety of industrial drive systems.
Manufacture |
ABB |
Model Number |
AGDR-72C |
Ordering Number |
68569427 |
Catalog |
VFD Spares |
Country Of Origin |
Sweden |
HS CODE |
7326909000 |
Dimension |
12*4*1.5CM |
Packing Dimension |
14*6*3.5CM |
Weight |
1.1kg |
Technical parameters
Rated current: 72A
Rated voltage: DC 650V
Operating temperature: -40℃ to +175℃
Insulation resistance: ≥100MΩ
Load compatibility: Maximum 20kW
Switching frequency: Maximum 16kHz
Functional features
High reliability: ABB AGDR-72C has high reliability, all components are industrial grade and fully electrically isolated. Through IEC and other electromagnetic compatibility tests, it ensures that the product can operate stably in harsh industrial environments, with long service life and low failure rate.
Advanced thermal management: ABB AGDR-72C adopts advanced heat dissipation technology, which is more efficient under different working conditions, reduces the risk of overheating, and increases system uptime.
Seamless integration: Suitable for a variety of industrial drive system types.
High insulation level: With f-class insulation system, ABB AGDR-72C has good thermal stability and long service life, which can reduce long-term maintenance costs compared with standard IGBT modules.
Motor control: The overall system performance is improved, and the high switching frequency capability can achieve better efficiency and provide support for motor control. This makes ABB AGDR-72C an ideal choice for applications that require precise speed regulation and torque control.
Application Scope
Industrial field: Power electronic devices such as inverters and converters, high-precision and efficient motor control systems, industrial automation production lines, etc. all require reliable and efficient power conversion and control solutions
Renewable energy: ABB AGDR-72C can also be used in renewable energy power generation systems such as solar power generation and wind power generation to improve the efficiency and stability of power conversion and transmission.
Rail transit: ABB AGDR-72C used in traction converters and auxiliary power systems of rail transit vehicles such as subways and light rails to provide power for the vehicle's traction motor and for the vehicle's auxiliary equipment to ensure the safe and efficient operation of rail transit vehicles.
