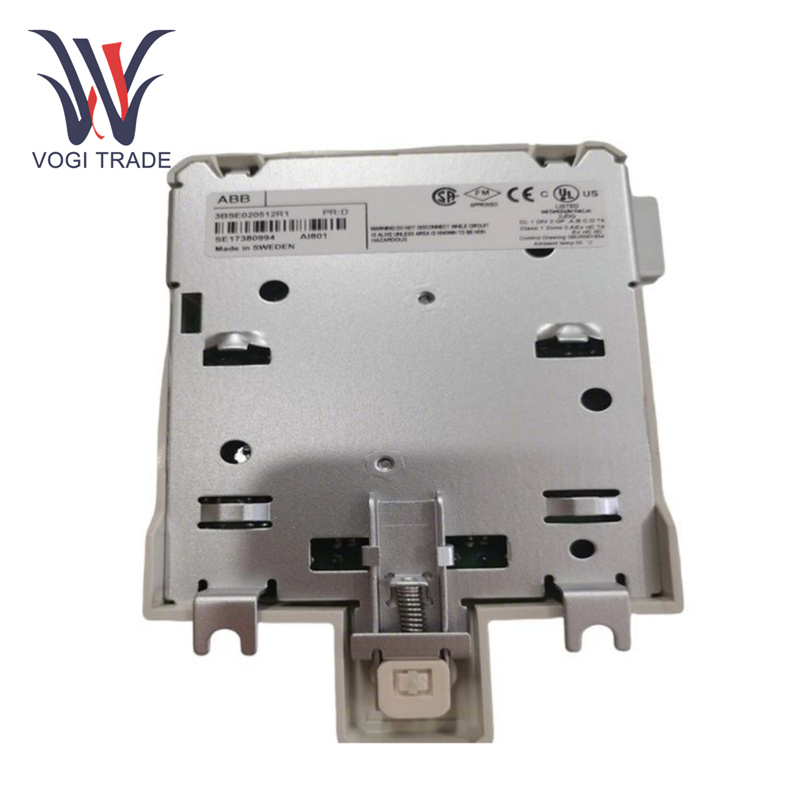

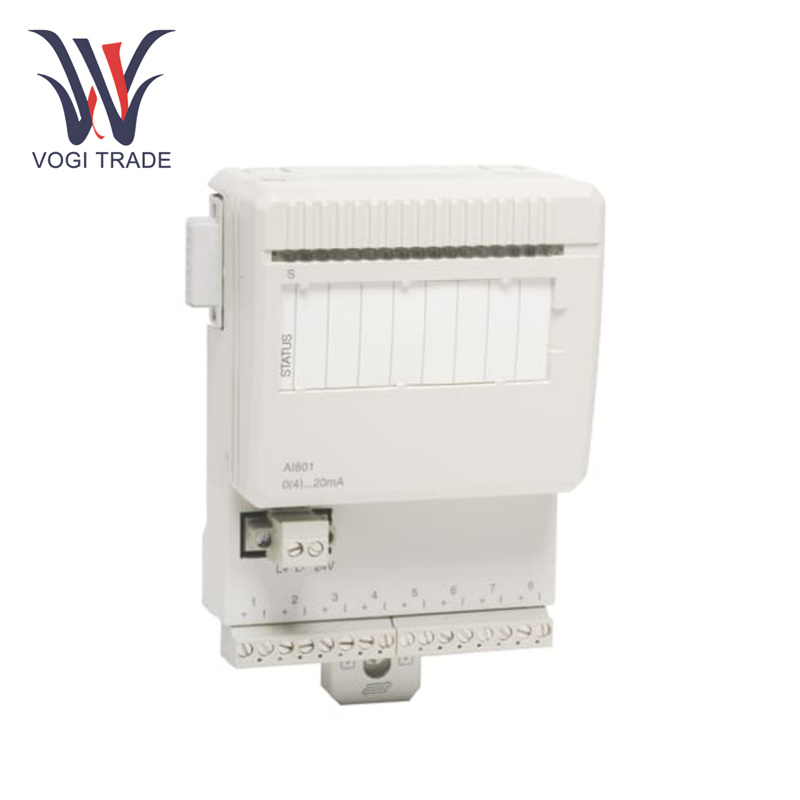

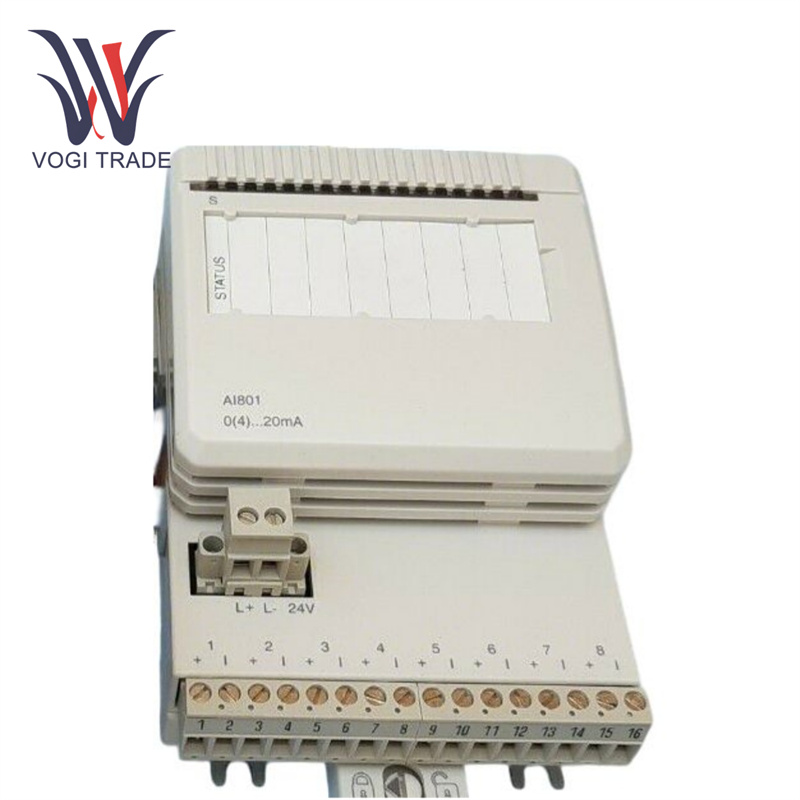

ABB AI801

Technical parameters

Input signal type: ABB AI801 supports a variety of analog input signals, and more importantly, its compatibility covers most sensors and measuring devices that produce those common analog signal formats.

Resolution: AI801 generally has a higher resolution which can accurately define the input analog signal.

Accuracy: The structure achieves excellent accuracy, usually within +/- 0.1% , and can provide reliable and reliable measurement results for important industrial processes

Isolation: Input and output are electrically isolated, and the isolation voltage is generally 1500V AC， which can eliminate electrical interference and provide protection in more complex electrical environments.

Response time: the product response time is relatively fast 12 milliseconds, and ABB AI801 can quickly give corresponding electrical signals according to changes in input signals to update the connected control system.

Features

Effective signal conditioning: ABB AI801 has good signal conditioning capabilities. It is able to amplify, filter and linearize the input analog signal, improving its quality and making it suitable for control system processing. By doing so, noise is minimized and the overall utility of the measured data is improved.

Diagnostics and monitoring: It provides complete diagnostic capabilities by detecting sensor failures, open circuits or incorrect ranges in the signal. ABB AI801 also monitors its own internal health and uses its communication interface to send any problems or alarms to operators or central control systems.

Scalable configuration: The product can provide flexible configuration according to different application requirements. ABB AI801 allows users to configure parameters such as input signal range, scaling factor and filter options through its intuitive software interface or configuration options on the device, making it suitable for a variety of industrial applications.

Compatible communication: Supports multiple communication protocols, Profibus, Modbus, etc. It allows easy integration with other automation hardware, PLC (Programmable Logic Controller) and manufacturing control systems to easily exchange data and provide synchronous work.

Application Areas

Process Control: In industrial areas such as chemical manufacturing, food and beverage processing, and water treatment, the ABB AI801 collects data from temperature sensors, pressure sensors, flow meters, and other types of analog measurement devices. The control system then uses this data to regulate the process and maintain optimal operating conditions.

Automation Systems: In factories, devices like the ABB AI801 interface with sensors on the production line. For example, it can read data from position sensors on a robotic arm or load cells on a conveyor belt to verify accurate positioning and correct material handling.

Building Management: In HVAC systems in commercial buildings, it accepts input from temperature and humidity sensing devices and passes that information to the building automation system. It adjusts heating, ventilation, and air conditioning (HVAC) settings to optimize energy consumption while maintaining an ideal indoor climate.
