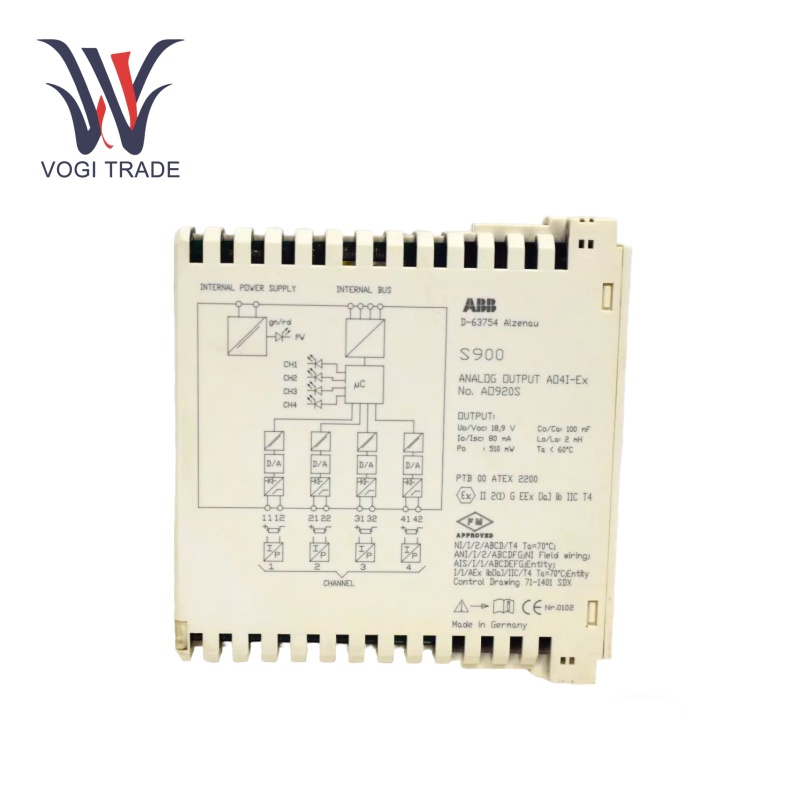

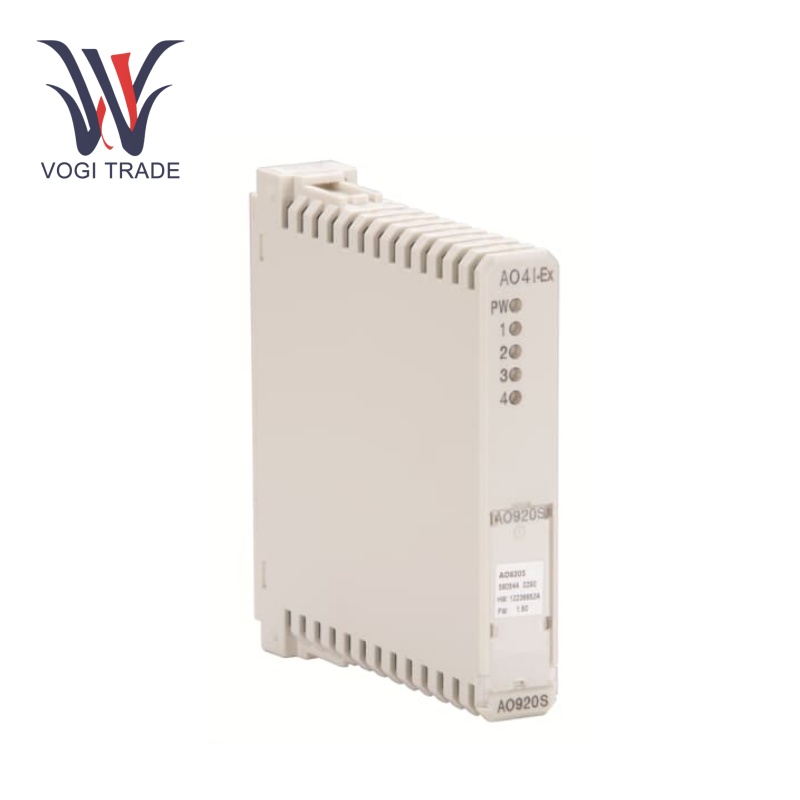

ABB AO920S

Operating Parameters

Power Supply:24V DC power supply

Output Channels:four output channels

Signal Processing:Each channel is equipped with a 16-bit digital to analog converter.

Output Signal Range:4 - 20 mA output current range

Resolution: With a 12 - bit resolution

Load Impedance: It can handle a load impedance of up to 500 Ω

Product Features

Accurate Signal Generation:The ABB AO920S main purpose is to give off accurate 4 - 20 mA analog output by controlling the digital signals from the controller. The output is 100% accurate because this is a very precise function that converts the readings into a control desired value. In a manufacturing process, it can convert these commands for motor speed or robotic arm position into the desired current signals.

Redundancy:The ABB AO920S with redundancy in power and communication. Such redundancy feature adds another layer of security and reliability. In the case of critical industrial applications such as power generation or oil refineries, where downtime can be costly, redundant systems ensure continuous operation in the event that one power source or communication link fails.

Diagnostic Capabilities:ABB AO920S can have built-in diagnostic features that check on the health of the module and the output signals. It is capable of detecting faults such as short circuits and open circuits in the output cable. With detection of short circuits, the module can inform the control system and facilitate prompt maintenance to avoid further damage to the connected equipment.

Hot Configuration and Hot Swap Functionality:ABB AO920S supports hot configuration in run, hot swap function. Also, hot swap feature allows to replace the module while the system already running. Such knowledge is extremely valuable in sectors where operating non-stop is essential to minimize downtime and reduce the damage to production losses.

Actuator Control: The ABB AO920S ability to produce analog output signals allows for the effective control of actuators, essential for controlling variable parameters in industrial processes.

Isolation: Getting rid of the noise between output, bus, and power.

Installation

Mounting:The module is primarily designed to fit a DIN rail for simple mounting of the module in an industrial control panel

Wiring:The wiring of the ABB AO920S is particularly important, as it must be connected to both the controller and the output devices. These 4 - 20 mA signals are clearly labeled on the output terminals, and power terminal should be connected accordingly. The wires you use should have adequate EMS shielding to prevent electrical noise. Long cables: Long cables must be accounted for, as long cable effects will affect the quality of the signal.

Configuration: After physical installation, the module needs to be configured in the control system. This configuration typically involves setting parameters such as the output signal range, the address in the communication network, and any redundancy settings.

Application range

Process Control: Regulating actuators in chemical, petrochemical, and pharmaceutical industries.

Energy: From feeding actuators to power plants and grids.

Safety Systems: Integration with safety systems with strict actuator control in dangerous environments.

Troubleshooting

Fault Detection: ABB AO920S are first line of defense with its built - in diagnostic functions. Short detected in the output wiring leads to an error signal being generated by the module if an open circuit is detected. If the output signals are interrupted, it should also notify the control system in case the module stops working because of power supply or communication errors.

Signal related Issues:Signal troubleshootingIf the output signal does not pass the signal to other devices, check if the wiring of output devices is connected correctly. Make sure the wires are connected correctly and not broken, and that the load impedance is not out of bounds.

Communication Issues: In communication-related faults, check communication cables for damage or loose terminals. Verify that the communication settings and control system are configured correctly.

Module specific Faults: If the module itself appears to be malfunctioning, check the power supply to ensure it is within correct specs. You can also replace AO920S with the known good module to test if it is the module side issue.
