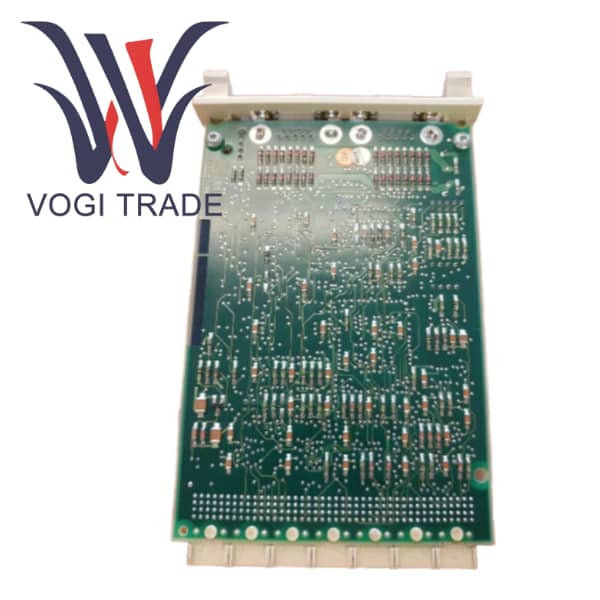

ABB CI531 3BSE003825R1

Product Overview

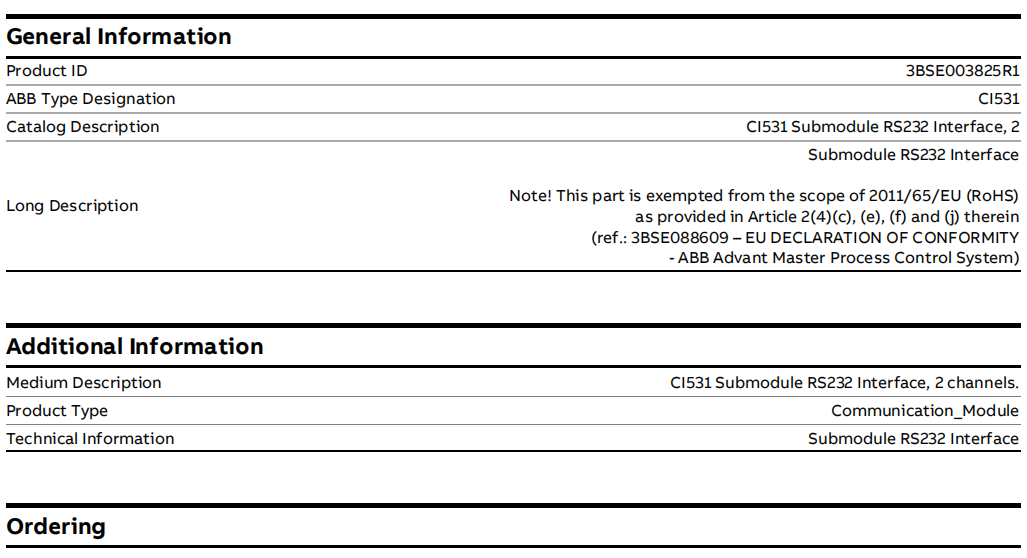

CI531 is a dedicated serial communication extension component in the ABB Advant Master distributed process control system. 3BSE003825R1 is defined as Submodule RS232 Interface, 2 channels. The core function is to provide two independent asynchronous serial communication ports that comply with the EIA-232 standard for the Advant Controller 410/450 series controllers.

In the field of industrial automation, although Ethernet has become mainstream, there are still a large number of outdated smart devices that only support RS-232 as their sole communication interface. The CI531 module is precisely designed to meet the demand for integration with non-standard or legacy devices. As a Submodule, it usually needs to be inserted into a dedicated slot of the main communication module, with the main module providing backplane connection and basic processing capabilities, while CI531 focuses on handling the RS-232 signal transmission and reception at the physical layer.

Comparison of Advantages and Disadvantages

Advantages

As an original ABB component, CI531 has undergone rigorous industrial environment tests to ensure stable operation under harsh conditions such as electromagnetic interference and temperature changes.

The status can be monitored by the DCS system, and the communication program can be directly written in the control logic of the controller, achieving integrated management from hardware to software.

3BSE003825R1 allows factories to easily integrate new or legacy serial devices without replacing the entire DCS, thus extending the service life of the system.

Disadvantage

The platform is highly dependent. The value is fully bound to the Advant Master/AC 400 platform. It is of no use for new projects or systems of other brands.

The single function only provides the RS-232 interface at the physical layer. All protocol parsing work requires users to program and implement it themselves, which increases the complexity of application development.

RS-232 itself is a point-to-point, short-range, and low-rate communication standard, which has gradually been replaced by RS-485, Ethernet, and even wireless technology in modern industrial networks.

Installation Guide

Preparations before installation

Confirm the compatibility of the main module. It is necessary to confirm that the main communication module you are using has available sub-module slots and its firmware supports CI531.

Installation steps

Step 1: Wear an anti-static wristband. Find the sub-module slot on the main communication module.

Step 2: Align the CI531 sub-module with the slot and press it down carefully and vertically until it is fully in place and locked.

Step 3: Use screws to fix the CI531 onto the main module.

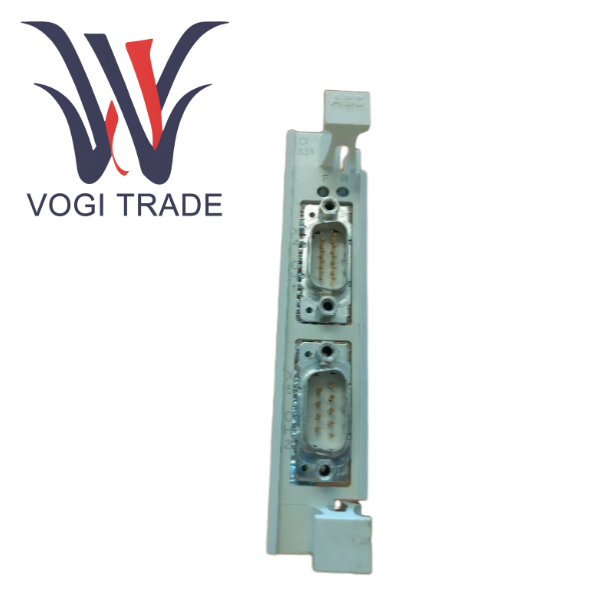

Step 4: Use the appropriate RS-232 cable to connect the field equipment to the corresponding channel port on the CI531 front panel. Be sure to confirm the pin definitions.

Step 5: In the Composer/PG2 software, find the corresponding main communication module, add the CI531 sub-module under its hardware configuration, and set the correct communication parameters for each channel.

Key points to note

Electrostatic protection. Any operation of electronic modules must comply with ESD protection regulations.

CI531 is a sub-module and cannot operate independently. It must be attached to a compatible main module.

Wiring errors of RS-232 are the most common cause of communication failure. Be sure to cross-connect.

The maximum reliable communication distance of the RS-232 standard is approximately 15 meters. If a longer distance is required, the use of RS-485 or an external RS-232/485 converter should be considered.

ABB will provide a library of functional blocks for serial communication, but the specific protocol parsing logic needs to be written by engineers themselves according to the equipment manual.
