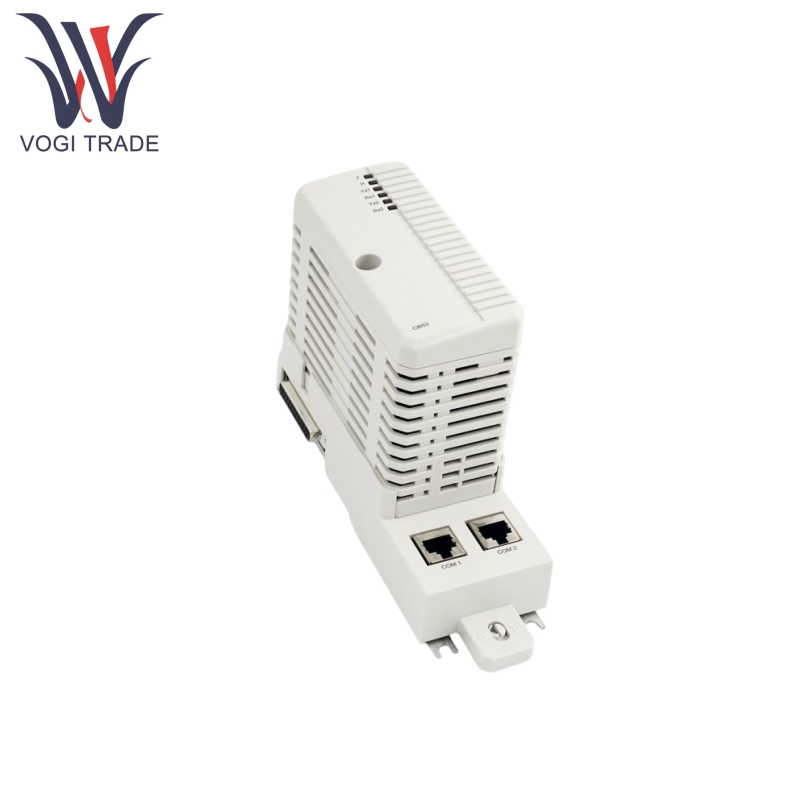

Brand: ABB Description: Profibus DP Interface Kit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB CI851K01 3BSE018101R1 core function is to enable high-speed data interaction between field devices and AC 800M controllers, supporting the PROFIBUS-DP protocol, and is suitable for industrial scenarios that require high-reliability communication.
|
Manufacture |
ABB |
|
Model Number |
CI851K01 |
|
Ordering Number |
3BSE018101R1 |
|
Catalog |
800xA |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
22*18*10cm |
|
Weight |
0.4kg |
Product Features
ABB CI851K01 3BSE018101R1 is equipped with a maximum communication rate of 12 Mbit/s to support the PROFIBUS-DP protocol, which corresponds to a response time in real-time control.
ABB CI851K01 3BSE018101R1 supports AC 800M hardware versions 2.1, 3.0 that can be used with multiple controllers.
ABB CI851K01 3BSE018101R1 features an RJ45 interface (8-pin), enabling quick connection to controllers and field devices.
ABB CI851K01 3BSE018101R1 supports hot-swapping, facilitating maintenance and upgrades. It meets the IP20 protection rating, making it suitable for industrial environments with dust and foreign object ingress, and offers strong interference resistance, making it ideal for complex electromagnetic environments.
ABB CI851K01 3BSE018101R1 includes built-in LED indicators that display real-time power, communication status, and fault information, simplifying maintenance processes.
Product Using Principle
ABB CI851K01 3BSE018101R1 serves as a communication gateway, connecting to S200 I/O modules, sensors, or actuators via the PROFIBUS-DP bus on one end, and to the controller via the AC 800M backplane on the other end, enabling data acquisition and command transmission.
It supports both periodic data exchange and non-periodic communication, ensuring real-time control.
It can be parameterized using ABB 800xA Control Builder software, including baud rate, slave address, data mapping, and more.
Product Parameter
The following detail is for ABB CI851K01 3BSE018101R1 Profibus DP Interface Kit.
Power Supply: Powered via the AC 800M backplane, 24V DC
Communication Rate: Supports dynamic configuration from 300 bps to 12 Mbit/s
Protocol Compatibility:
PROFIBUS-DP master/slave mode, supporting multi-device networking
Can be extended to support Modbus RTU (requires software configuration)
Isolation Characteristics:
Adopts photoelectric isolation design with an isolation rating of 500V, effectively avoiding ground loop interference
Operating temperature: -25°C to +70°C (industrial-grade wide temperature range)
Humidity: 5%-95% non-condensing, complying with the ISA 71.04 G3 corrosion protection standard
