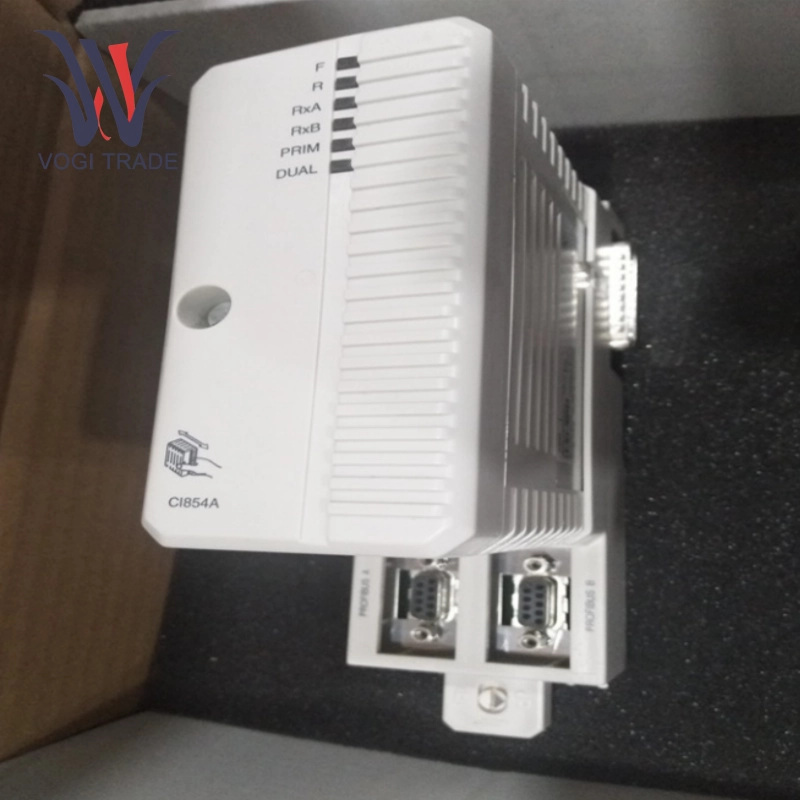

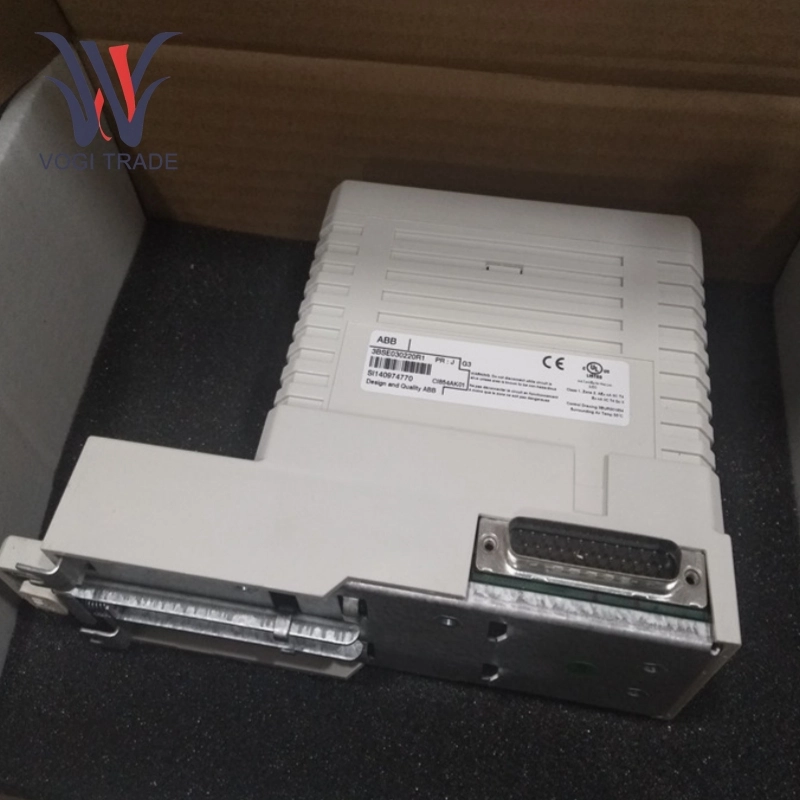

Brand: ABB Description: 4-channel Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen ABB CI854AK01 3BSE030220R1 is used to connect devices to support industrial automation communication.
|
Manufacture |
ABB |
|
Model Number |
CI854AK01 |
|
Ordering Number |
3BSE030220R1 |
|
Catalog |
AC 800M I/O System |
|
Country Of Origin |
Sweden |
|
HS CODE |
8473309000 |
|
Dimension |
11*6*2.5CM |
|
Packing Dimension |
13*8*5CM |
|
Weight |
0.2KG |
Technical parameters
Communication protocol: Support PROFIBUS DP/V1, rate 9.6 kbps to 12 Mbps; compatible with Modbus TCP, Ethernet/IP
Power supply: 24V DC (±10%), power consumption 3-5W
Interface type: Dual PROFIBUS ports (support line redundancy), Ethernet interface (rate 10/100 Mbit/s)
Connection capacity: Maximum 128 PROFIBUS DP devices or 63 Modbus TCP devices
Environmental adaptability: Working temperature -40°C to +70°C (storage temperature -40°C to +85°C), humidity 5%-95% non-condensing
Protection level: IP30, shock resistance 30g/11ms, vibration resistance 5g/10-500Hz
Functional features
1. High-speed redundant communication
ABB CI854AK01 3BSE030220R1 support line redundancy and master station redundancy (requires dual module configuration), ensuring seamless switching of communication links in case of failure, significantly improving system reliability
2.Wide industrial compatibility
Compatible with AC800M controller and S800 I/O system, ABB CI854AK01 3BSE030220R1 can connect PROFIBUS DP instrument, FOUNDATION Fieldbus equipment and remote I/O, and support hot-swap maintenance
3.Industrial-grade rugged design
ABB CI854AK01 3BSE030220R1 has built-in overload, short circuit and surge triple protection (-40°C to +70°C wide temperature operation), adapting to long-term stable operation in harsh environments such as petrochemical and power
4.Intelligent diagnosis and scalability
Real-time communication status monitoring and fault self-diagnosis functions, combined with LD 800P equipment to expand PROFIBUS PA function to meet the needs of complex control scenarios
Application scenarios
Process industry: PROFIBUS control of chemical plant reactors, data collection of refinery instruments
Manufacturing automation: robot collaboration in automobile production lines, PLC communication of semiconductor equipment
Energy management: DCS system monitoring of power plants, smart grid diagnosis of substations
Heavy machinery: signal control of port cranes, redundant communication network for rail transit
