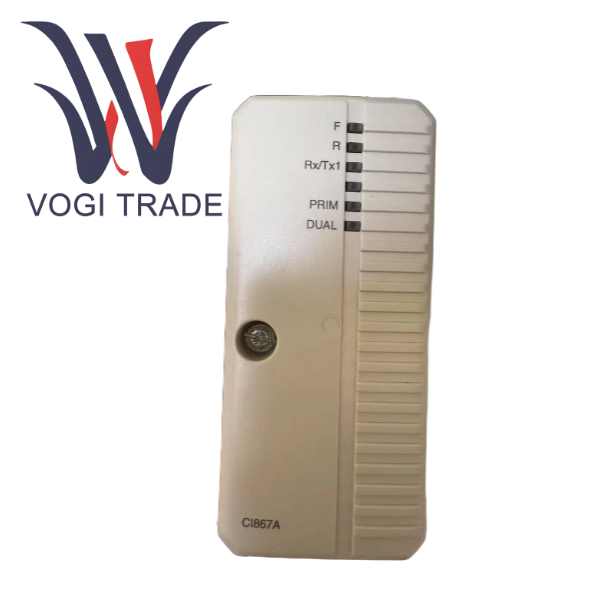

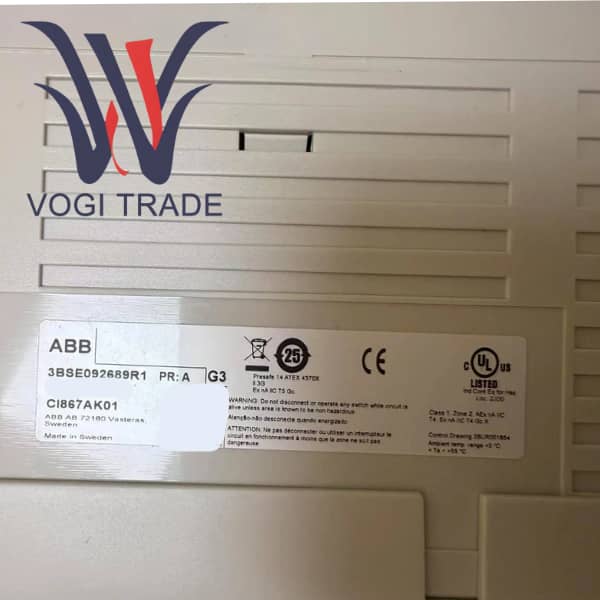

ABB CI867AK01 3BSE092689R1

Product Overview

CI867AK01 is a high-performance MODBUS TCP communication interface module launched by ABB, specifically designed for AC 800M high-performance process controllers. As a key component of the AC 800M I/O expansion station, the 3BSE092689R1 enables the AC 800M controller to seamlessly exchange data with any third-party device that supports the MODBUS TCP standard.

This module plays the role of a "protocol gateway" in industrial networks. 3BSE092689R1 can be configured as MODBUS TCP Master or MODBUS TCP Slave. As a Master, it can actively poll multiple downstream Slave devices, read their data or write control commands to them. As a Slave, the CI867AK01 can package the process data inside the AC 800M into MODBUS registers for reading by the upstream SCADA system or DCS. This two-way and flexible communication capability greatly enhances the openness and integration ability of the AC 8000M system, and it is a core component for building modern and interconnected industrial automation solutions.

Product Functional Features

Dual-channel independent communication architecture

Physical isolation and functional separation: Two independent Ethernet ports allow users to physically isolate different devices or networks. For instance, Channel 1 can be connected to the factory's backbone control network for communication with DCS or SCADA. Channel 2 can be connected to a local device subnet, specifically designed for polling on-site smart meters. This design enhances the security and reliability of the network and prevents a single network failure from affecting all communications.

The flexible topology supports various network topologies such as star and Daisy chain, facilitating on-site cabling.

Master/slave dual-mode and powerful master station functions

As the Master, the CI867AK01 module is equipped with powerful master logic and can manage up to 256 MODBUS transactions. The 3BSE092689R1 can automatically handle complex tasks such as polling, timeout retry, and error diagnosis, liberating engineers from the cumbersome low-level communication programming.

As a Slave, it provides standard MODBUS register mapping, making the data of the AC 800M clearly visible to any standard MODBUS client and greatly simplifying the integration with third-party systems.

Advanced system integration features

Seamlessly integrated into the AC 800M architecture, the CI867 module exchanges data with the AC 800M CPU via the high-speed CEX bus, with extremely low communication latency. In Control Builder, MODBUS data points can be directly mapped to the variable labels of the controller, as simple as operating local I/O.

For critical applications with extremely high availability requirements, the 3BSE092689R1 can be configured with two CI867 modules to achieve communication redundancy. When the main communication module malfunctions, the system can automatically and seamlessly switch to the backup module to ensure that communication is not interrupted.

Hot-swapping support enables the replacement of faulty modules without stopping the entire control system, minimizing unplanned downtime and ensuring the continuity of production.

Comparison of Advantages and Disadvantages

Advantages

Outstanding integrated experience. In ABB's Control Builder engineering environment, the configuration of MODBUS communication becomes extremely simple. Engineers only need to define the device, register address and data type, and the system will automatically generate communication tasks, greatly reducing the complexity and error rate of engineering implementation.

High reliability and availability, the three major features of dual-channel, module redundancy and hot-swapping together form a highly available communication solution, meeting the strict requirements of modern factories for continuous operation.

The performance is guaranteed. As an original factory module, the 3BSE092689R1 has fully optimized the data throughput and real-time performance between it and the AC 800M CPU, avoiding the performance bottleneck that may be brought by using an external general-purpose gateway.

Sharing the same spare parts, diagnostic tools and software update paths with the AC 800M system simplifies the operation and maintenance management of the factory.

Disadvantage

The platform locks that this module can only be used in ABB's AC 800M system. In an automation project that is not ABB, the CI867AK01 is completely ineffective.

3BSE092689R1 only supports MODBUS TCP. If there are other protocols on site, additional dedicated communication modules or external protocol gateways are required, which increases costs and complexity.

As an original factory-specific module, its procurement cost is usually higher than that of the commonly used MODBUS TCP gateway in the market.

Relying on specific software, configuration must be carried out using ABB's Control Builder. There is a learning curve for engineers who are not familiar with this tool.

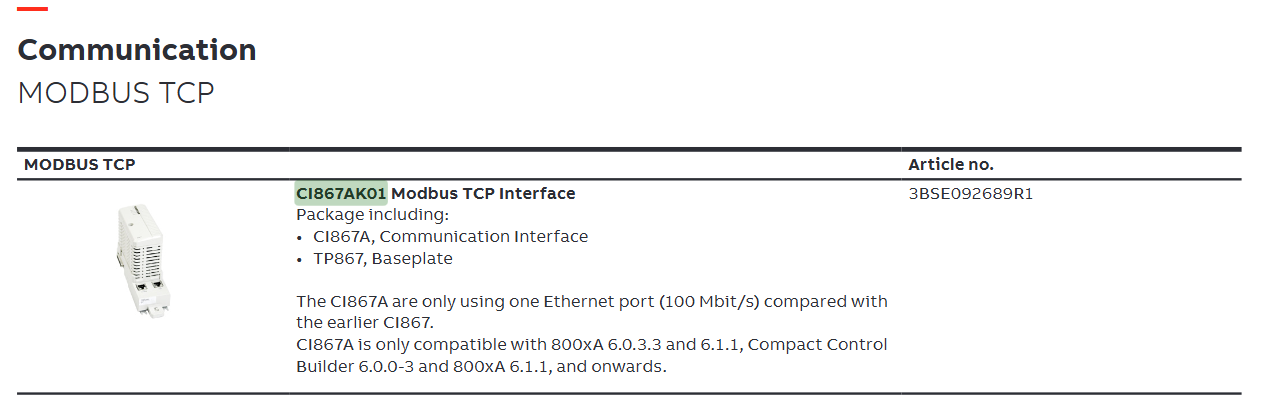

DataSheet DownLoad
