ABB CP502

Technical Parameters

Resolution: ABB CP502 has 320 x 240 pixels, so it can accurately display operators using detailed graphics, text and process data, providing precise visual feedback to operators;

Memory: Comes with ARM-based processor chip, which is sufficient to cope with processing tasks. In addition to sufficient internal memory 64 MB RAM and 128 MB flash, ABB CP502 can also save and run the required programs and data to provide services correctly.

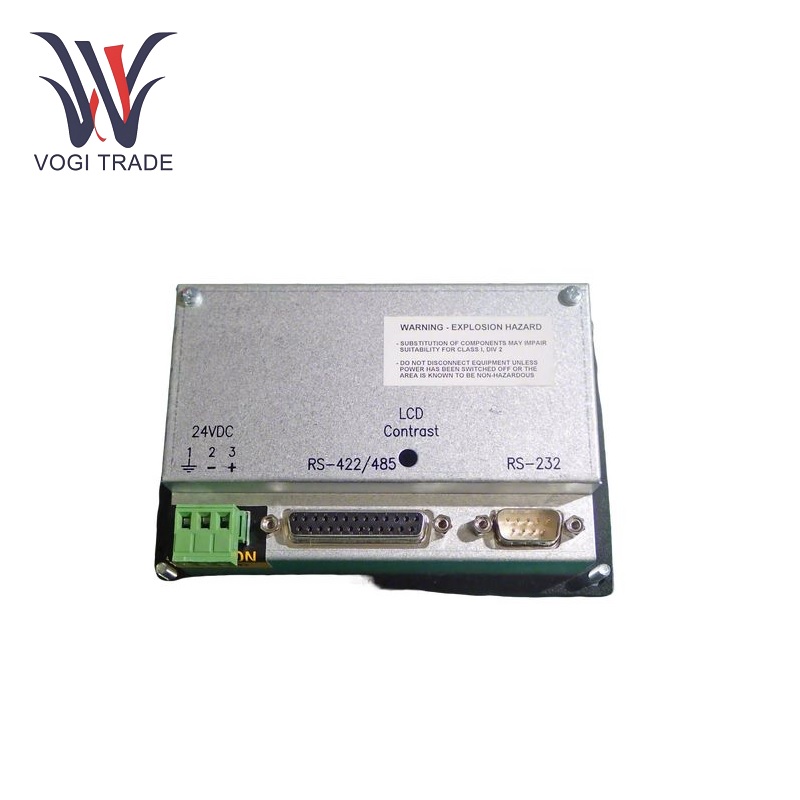

Communication interface: CP502 providesapplicable common interfaces such as Ethernet, RS232, RS485, etc. communication interfaces, which can be connected to other devices such as programmable logic controllers , sensors and other automation devices to seamlessly exchange data and integrate into industrial networks.

Features

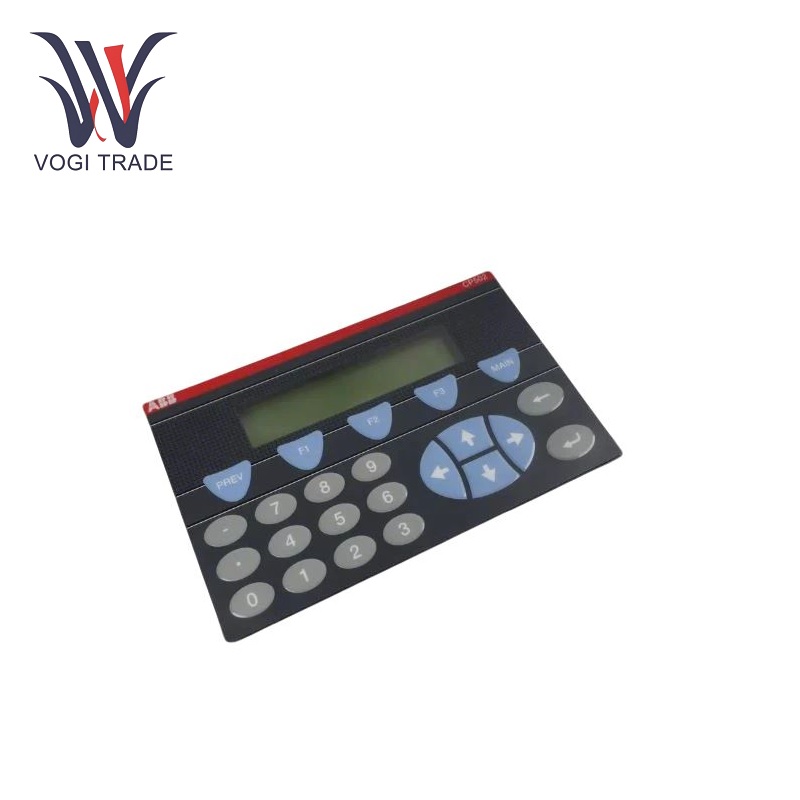

Customizable interface: It comes with an easy-to-use graphical interface that can be customized according to user requirements. Intuitive touch screen or keyboard control (depending on the model) allows operators to quickly navigate menus, access functions and set parameters, thereby shortening the learning curve and improving operational efficiency.

Data visualization: The device is very good at data visualization, and ABB CP502 devices have it all. This enables operators to understand industrial processes at a glance, including identifying trends and discovering abnormal situations.

Programming function: ABB CP502 supports programming, and users can use it to develop customized applications or set specific control logic. This flexibility makes it suitable for a variety of situations from simple automation tasks to more complex process control implementations, and adjust its functions to meet specific needs.

Alarm and event management: It is equipped with an alarm and event management system that monitors different parameters and triggers alarms when certain preset thresholds are exceeded. It also records events for future analysis, allowing operators to take timely corrective actions and improve the reliability and safety of industrial systems.

Application Scope

Control process: The CP502 is often seen in manufacturing plants in different fields, including automotive, electronic and mechanical production. It can act as a human-machine interface (HMI) for operators to check and manage production lines, implement HMI to adjust processes of PLCs, and visualize various equipment performance to improve productivity and quality control.

Process industry: In process industries (such as chemical, pharmaceutical and food-related), accurate control of processes is a key requirement, and the CP502 helps to visualize and set parameters (such as temperature, pressure, flow). The ABB CP502 allows operators to understand what is happening in the process, allowing them to make decisions that help stabilize and protect the production process.

Smart buildings: Building automation is another area where this technology can be adopted to manage and monitor systems such as heating, ventilation, air conditioning (HVAC), lighting and access control. Through its interface, building managers can remotely control these systems, optimize energy usage, and resolve any issues or alarms that arise in real time.
