ABB CS513 3BSE000435R1

Product Overview

CS513 is a key network communication component in the ABB Advant Master distributed process control system. 3BSE000435R1 is defined as IEEE 802.3 LAN-Module. Its core function is to provide a standard Ethernet communication interface for the Advant Controller 410/450 series controllers, enabling them to access factory-level local area networks based on the IEEE 802.3 protocol.

In the early stage of the life cycle of the Advant Master system, its internal communication mainly relied on the proprietary MasterBus 300 bus. However, with the increasingly obvious trend of the integration of information technology and operational technology, as well as the popularization of office networks and management information systems, DCS systems urgently need a standardized way to exchange data with the outside world. The CS513 module emerged as The Times required. It serves as a network bridge between Advant Master, this "industrial island", and the external "ocean of information". Through CS513, the controller can achieve high-speed and reliable communication with operator stations, engineer stations, historical database servers, management information systems, and even remote diagnosis centers.

Product Specifications and Parameters

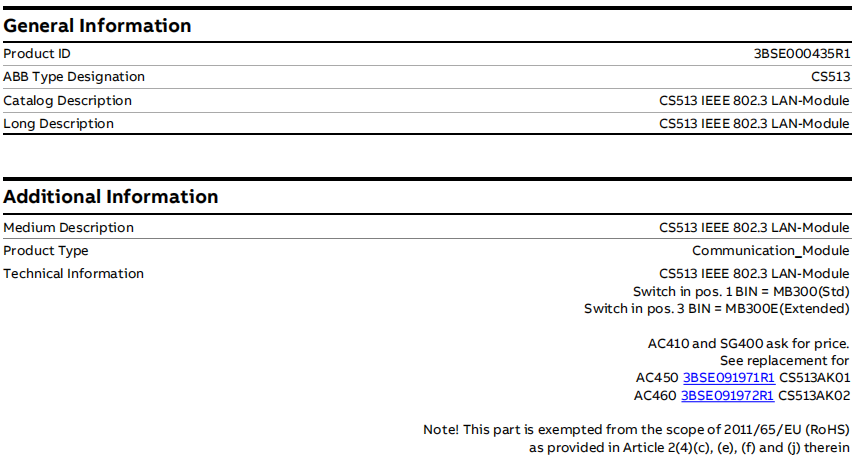

Product Model           CS513

Ordering Number      3BSE000435R1

Product type             IEEE 802.3 LAN-Module

System to which        Advant Controller 410 / Advant Controller 450 / AC 400-Communication Modules → CS513 MasterBus 300 Interfaces

Physical dimensions

Net length/depth      234 mm

Clear width              108mm

Clear height             18mm

Net weight              0.2 kg

WEEE                     5 categories

Product Functional Features

Standardized network access

IEEE 802.3 compatibility means that the CS513 uses the same underlying Ethernet technology as office computers and can be seamlessly connected to standard industrial Ethernet switches and network infrastructure.

Breaking down the information barriers makes the Advant Master system no longer an information island. Key production data can be collected and utilized by the upper-level system through standard network protocols, which greatly enhances the informatization level of the factory.

LAN interface and MB300 interface

The document classifies it under CS513 MasterBus 300 Interfaces, which reveals its internal architecture. One end of the CS513 is connected to the MasterBus 300 internal bus of the controller through the backplane, while the other end provides a standard Ethernet interface. Essentially, it is a protocol gateway, responsible for data conversion and routing between the internal MB300 protocol and the external TCP/IP protocol.

Support system redundancy and scalability

The MB300 or MB300E mode can be selected through the DIP switch. The MB300E mode is typically used to support larger-scale systems or specific redundant configurations, providing more flexible network topology capabilities.

In large-scale systems, multiple CS513 modules can be installed to connect different network segments, achieving network isolation and load sharing.

Applicable Industry Scope

The application scenarios of CS513 cover all industries that have deployed ABB Advant Master/AC 400 DCS systems and hope to achieve information integration.

The energy and power department uploads the operation data of the power plant DCS to the plant-level monitoring system or the group data center.

The integration of DCS and MES in the petroleum, natural gas and chemical industries is used for production scheduling, material balance and performance analysis.

The DCS in the central control room of the mining and metallurgy connection is linked to the remote mining or beneficiation sub-stations.

Any factory that needs to share, monitor or remotely access the data of the Advant Master system through a standard network.
