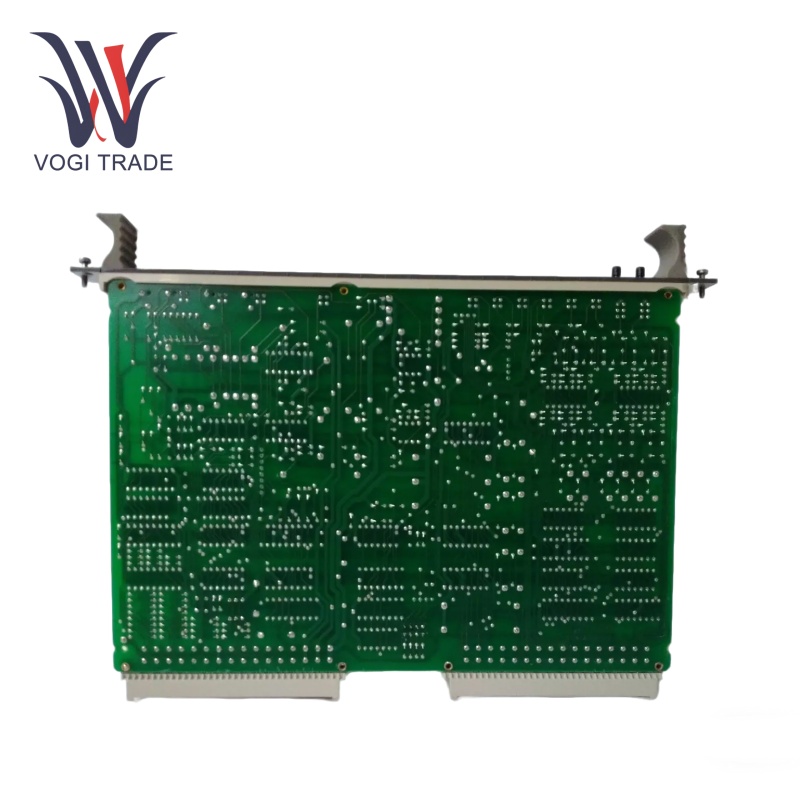

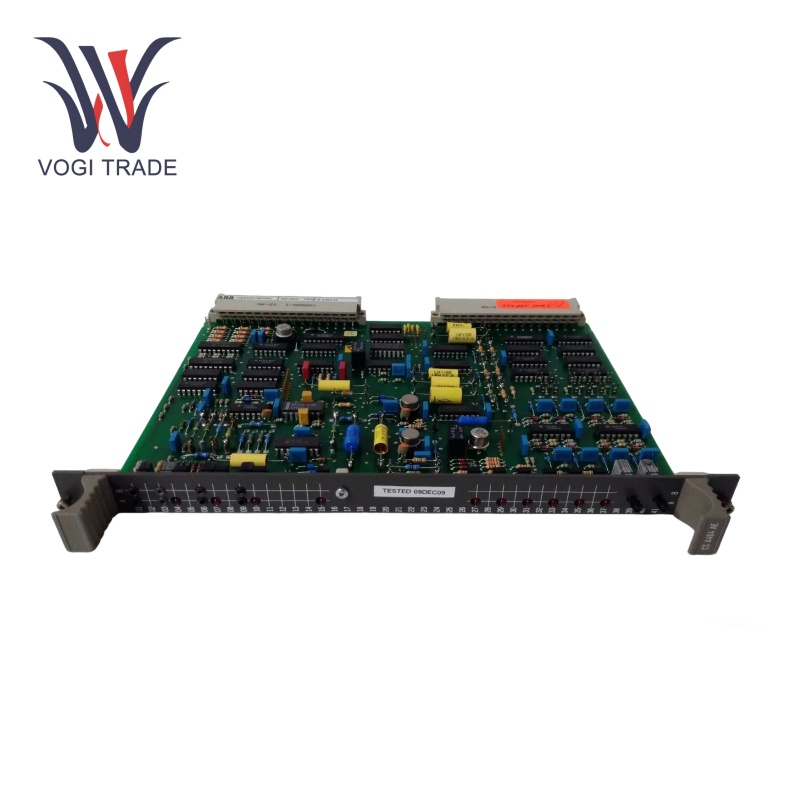

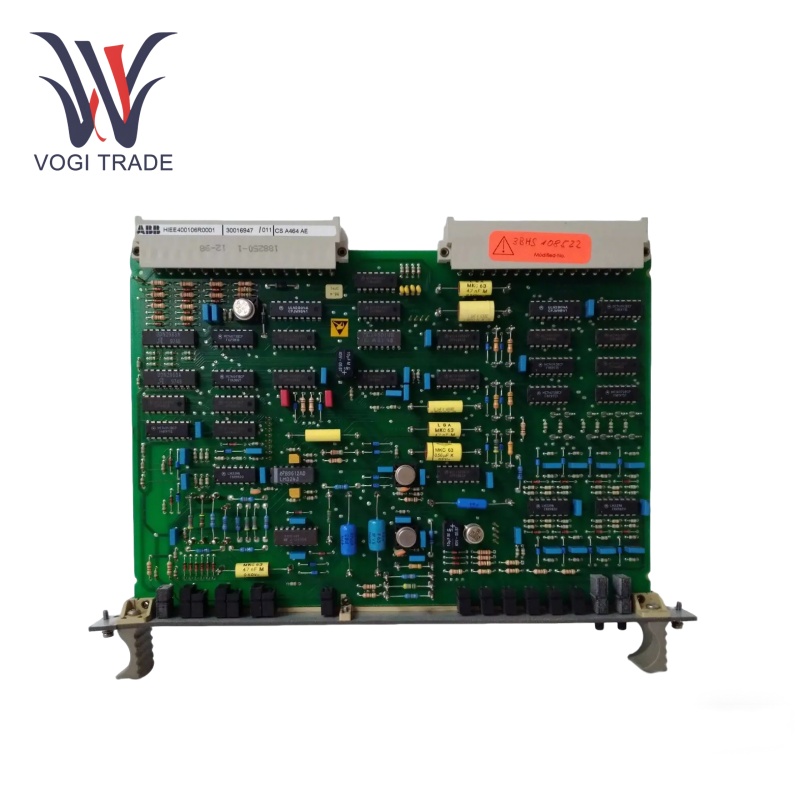

ABB CSA464AE

Operational Parameters

Voltage Rating: 110V to 230V AC

Current Rating: 63A

Operating Temperature: -20°C to +60°C

Frequency Range: 50/60 Hz

Protection Class: With an IP20 protection rating

Product Features

Precision Sensor Signal Conditioning: The ABB CSA464AE is passive sensor signal conditioning table. It capable of managing various analogue and digital inputs from various types of sensors, including pressure sensors, thermocouples, and accelerometers.

Robust Communication Interfaces:The ABB CSA464AE comes with multiple communication interfaces, including Modbus TCP/IP and EtherCAT. As a result, newer Industrial Automation setups make use of these advanced communication protocols for seamless integration in the Industry. In a smart factory, it may interact with programmable logic controllers, industrial PCs, and other networked devices. The real-time data interchange makes it possible to control processes from a distance and monitor them, which contributes to increased productivity and improved performance.

Built in Fault Detection and Alarming: ABB CSA464AE is provided with fault detection mechanisms built in. LEDs on the device also indicate various operating conditions, such as the status of the power supply, correctness of the communication link, or sensor input error. It can also generate audible and visual alarms for central control system transmission. In the event of a sensor failure or a communication disruption, operators are instantly notified, allowing timely corrective measures to reduce downtime.

Overcurrent Protection:ABB CSA464AE can even monitor the current levels and trip the circuit if the current levels exceed the preset threshold. Doing this protects circuits from potential overloads or faults that can damage electrical equipment.

Overvoltage Protection:In case of overvoltage, the ABB CSA464AE will trip to protect sensitive equipment from a voltage onslaught that might otherwise try to damage them.

Manual and Automatic Reset:Depending on user preference and application requirements, the CSA464AE can be set for either manual or automatic reset after tripping.

Diagnostic Functions: The relay logs fault events for performance analysis.

Installation

Mounting:The DIN rail mounted design makes it easy to install in control cabinets.

Wire:Refer to the wiring diagram in the user manual to connect power supplies, motor circuits and communication cables properly. Get the grounding right to be no electrical interference.

Configuration:Use the front-panel interface or software tools to configure the motor parameters, protection set points, and communication settings.

Testing: After the installation is complete, carry out a functional test to ensure that the motor is operating correctly and that the protection settings are functioning properly.

Application range

Application in Power Distribution:The relay is used extensively in power distribution systems.it protects transformers, switchgear, and electrical panels from overloads, under-voltage, and short circuit situations.

Industrial Automation:The ABB CSA464AE is perfect for protecting automation systems, machines and motors to ensure that your business runs smoothly and that your operations are protected from electrical faults.

HVAC Systems:In heating, ventilation, and air conditioning equipment, the ABB CSA464AE is employed to safeguard critical components including power supply, compressors, and motors from overcurrent, under-voltage, or short-circuit faults.

Use in Renewable Energy:It is utilized in solar power plants, wind farms, and other renewable energy systems to ensure that electrical circuits remain secure and work within the necessary limits.

Infrastructure Development:It is designed to safeguard the electrical systems powering lighting, elevators, security, and other essential systems in large commercial or residential buildings from faults.

Transportation:Relay technology is also used in transportation systems, such as railway electrification and electric vehicle charging stations, where reliable and fault-free operation of electrical systems is paramount.

Troubleshooting

Relay Not Tripping:Verify power supply, Make sure that the relay is getting a proper and stable input voltage.

Check connections:If any of the wires connecting your relay is loose or incorrectly wired, that may stop your relay from working. Ensure that all connections are secure and properly aligned with the wiring diagram

Ensure configuration settings are appropriate:If the trip thresholds or settings are not configured correctly, the relay will not detect faults. Check that the relay's protection settings are correct.

Overload or short circuit:Check for any short circuit or overload conditions in the connected circuit. In the case of a clamp meter, test for the current flow exceeding setting trip threshold.

Faulty equipment: If the relay is protecting equipment, make sure the equipment is not defective and causing a false trip.

Settings Adjustment:Incorrect trip times require modifications to the time delay settings to match the specific system needs in terms of overcurrents.

Faulty sensors:These sensors may not always transmit a response unless they are in working condition.

Cable integrity:Check for damaged, loose cabling, poor signal integrity in cables, which may affect communication.
