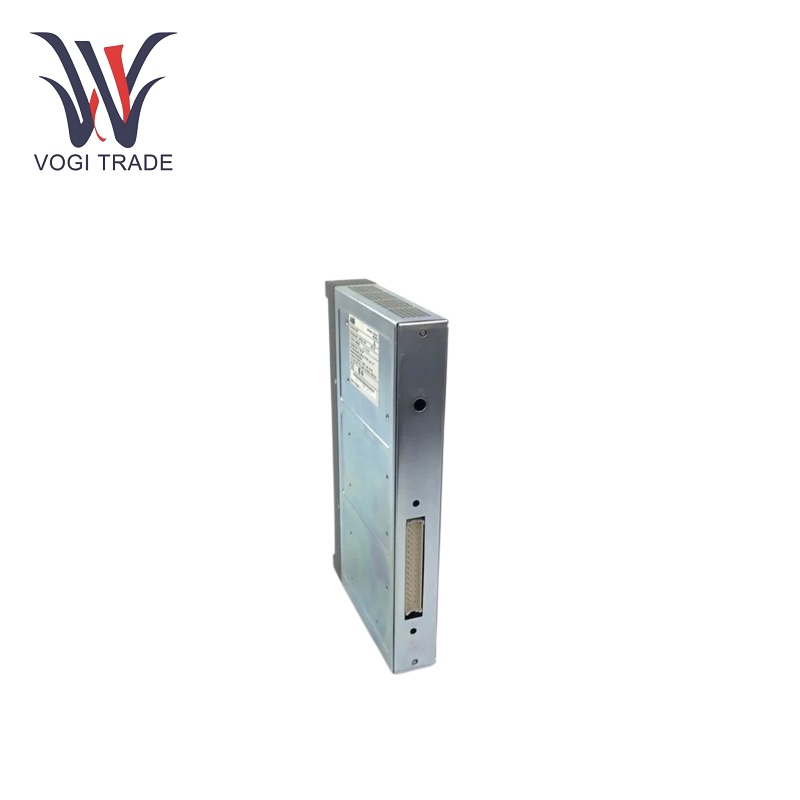

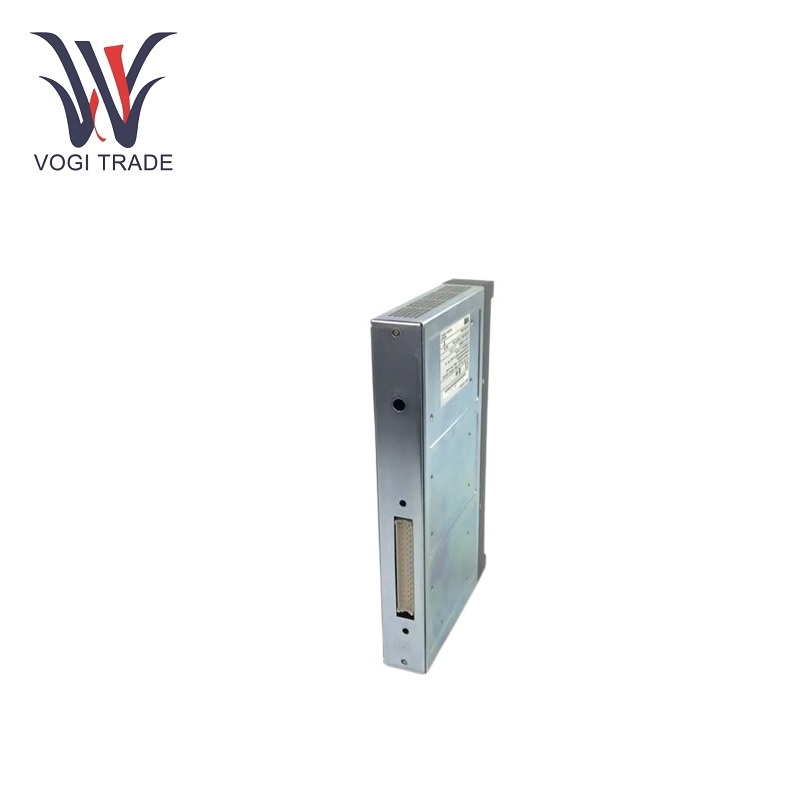

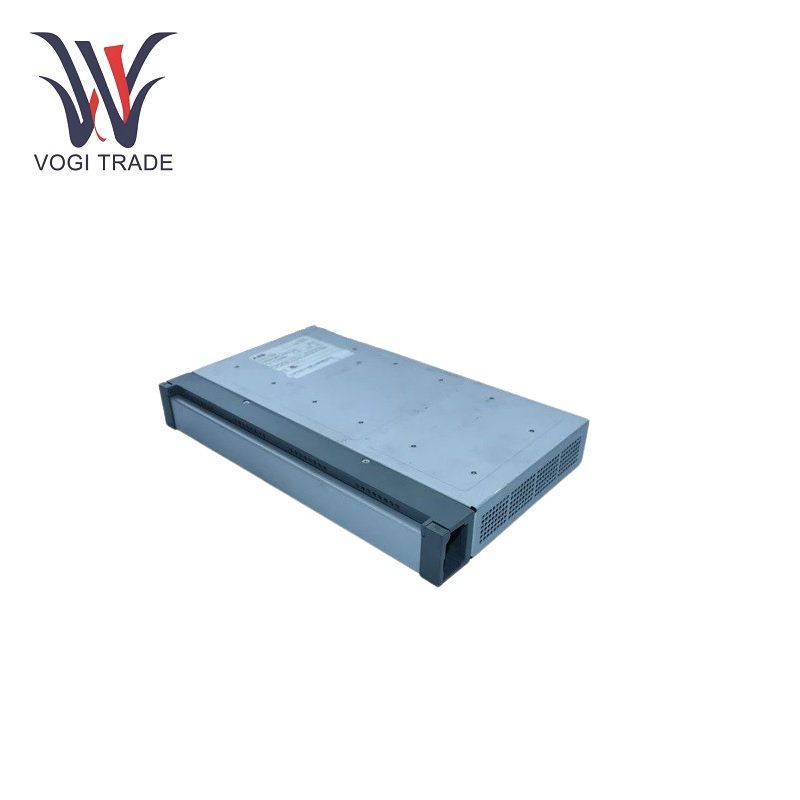

ABB DAI05

Working Parameters

Analog Input Channels: It has 4 isolated analog input channels, which can collect multiple analog signals simultaneously.

Input Range: It can accept input ranges of 0 - 10V, 4 - 20mA or ±10V, making it versatile in terms of sensors and sensor interfaces.

Accuracy: The accuracy is ±0.1% of full scale, which provides accurate and reliable data acquisition, which is essential for precise control and monitoring applications.

Resolution: 16-bit resolution, which can accurately measure and distinguish input signals

Low noise and low crosstalk specifications: <0.1% fs noise, <0.05% fs crosstalk

Response Time: The response time is fast, PMJapanese906ms, so it can be monitored and controlled in real time in fast-moving industrial processes.

Power Supply: It adopts 24 VDC power supply, and the internal power consumption is 24V/2.4W, which is compatible with different industrial power distribution systems.

Operating temperature range: Operation over a wide temperature range of -40 to 70 °C (-40 to 158 °F) ensures reliable operation in harsh industrial environments

Product features

Three analog inputs for conversion: The primary purpose of the ABB DAI05 is to convert analog outputs produced by field devices such as sensors and transmitters into a form suitable for processing by the control device. This allows the integration of analog components into digital control architectures.

Finite impulse response digital filter: This significantly reduces noise and interference on the input signal, compensating for any signal distortion. Similar to the previous changes, the result is more accurate and reliable data that the control system can operate on.

Compatibility and integration: The ABB DAI05 can be seamlessly integrated into automation systems, including ABB's Freelance and other control systems. Its modularity is reflected in its easy installation on a DIN rail or mounting plate, allowing configuration from the system.

Scalability: With its multi-channel capability, adding analog inputs to a control system is simple with this module. The number of ABB DAI05 modules can be increased as needed to increase the number of analog signals to be monitored and controlled, making it suitable for applications with growing or changing requirements.

Applications

Manufacturing: ABB DAI05 is used in manufacturing plants to monitor and control production processes. It can be connected to sensors that can measure parameters such as temperature, pressure, flow rate and liquid level, which helps to accurately control manufacturing operations and ensure product quality and process efficiency.

Energy sector: ABB DAI05 is used in power generation, distribution and management systems to monitor electrical parameters such as voltage, current and power. It can also be used in energy management systems to quantify and control energy consumption, which helps save energy and effectively manage power systems.

Chemical industry: ABB DAI05 is essential for tracking important characteristics such as chemical concentration, pH value and response temperature of chemical processes. Providing accurate and up-to-date data to the control system ensures the safety, stability and quality of chemical production processes.

Water treatment: In water treatment plants, it is used to measure water quality parameters such as turbidity, dissolved oxygen and conductivity. In fact, today, the measurement and control of these parameters play a vital role in producing clean and safe water.
