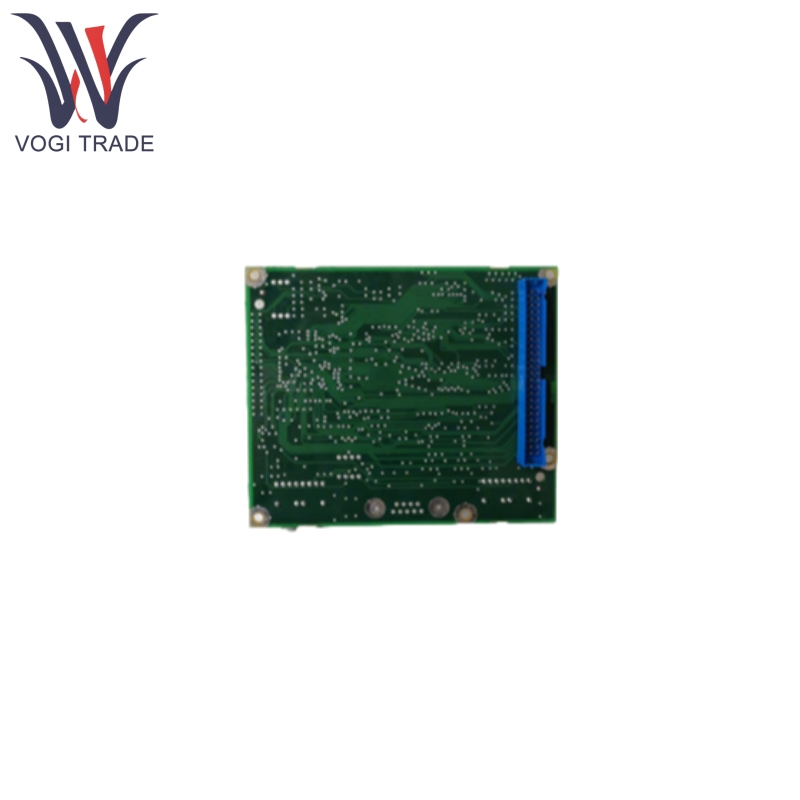

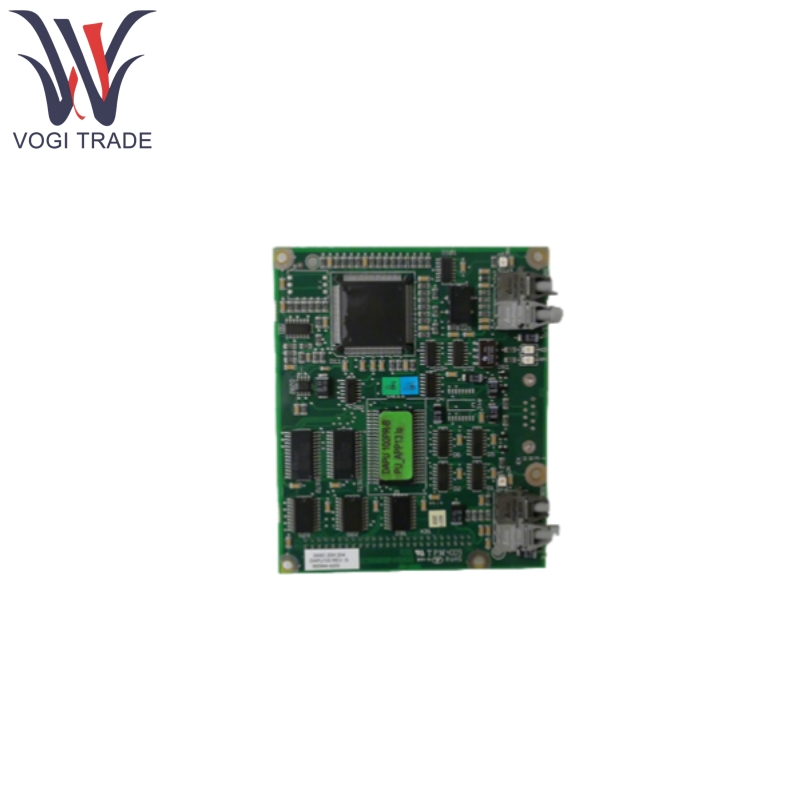

Brand: ABB Description: Control Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB DAPU100 3ASC25H204 has multi-channel digital input and output capabilities, supports a variety of communication protocols, and can be flexibly configured to meet the needs of different industrial scenarios. Its design goal is to realize high-precision and high-reliability automation control in harsh environments, and it is suitable for production lines, logistics management, robot systems and other fields.
|
Manufacture |
ABB |
|
Model Number |
DAPU100 |
|
Ordering Number |
3ASC25H204 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
10*10*4cm |
|
Weight |
0.4kg |
ABB DAPU100 3ASC25H204 is equipped with a 32-bit microprocessor that supports rapid processing of complex algorithms and control tasks, with a processing speed of up to 550μs (specific models) and an output frequency of 100Hz.
ABB DAPU100 3ASC25H204 integrates Ethernet, Modbus, Profibus and other interfaces, and is compatible with Modbus RTU, DeviceNet, CANopen and other protocols, realizing seamless connection with third-party devices.
ABB DAPU100 3ASC25H204 provides multi-channel digital inputs and outputs, supports relay outputs (maximum load of 2A per channel), and can be connected to sensors, actuators and other devices to meet diversified control needs.
ABB DAPU100 3ASC25H204 supports customized development in various programming languages and is suitable for customized control logic.
Product Using Principle
ABB DAPU100 3ASC25H204 outputs control commands to actuators by collecting sensor signals and analyzing and processing them in real time by a microprocessor. Its core functions include digital flow counting, signal conditioning and logic operations, and it is suitable for closed-loop control systems.
Input voltage: 24VDC
Communication interfaces: Ethernet, Modbus, Profibus
Number of channels: Multiple input and output channels (specific number varies by model)
Output type: Relay output, 24V DC
Operating temperature: -40℃~70℃
Protection class: IP30 (for some models)
Processing speed: 550μs (for specific models)
Program capacity: 3MB (for some models)
Product Application
In automotive assembly lines, electronic component production lines and other scenarios, ABB DAPU100 3ASC25H204 can collect real-time signals such as conveyor speed, workpiece position, and robot arm movement status through multi-channel I/O interfaces, and after high-speed processing at the 550μs level, it outputs relay control commands to drive solenoid valves, motors, and other actuators to complete accurate sorting, welding sequence control or assembly step switching to ensure stable production beats.
In the sorting system of intelligent warehousing, ABB DAPU100 3ASC25H204 can be accessed through photoelectric sensors, barcode scanners and other equipment, real-time identification of cargo information and calculation of the sorting path, and then communicate with the conveyor equipment through the Modbus or Profibus protocol to control the conveyor belt steering, elevator start and stop, to realize the goods according to the destination of the automatic diversion to enhance the efficiency of the warehouse turnover.
In food processing, plastic molding and other temperature-sensitive production processes, ABB DAPU100 3ASC25H204 can be connected to thermocouples, RTDs and other temperature sensors, through the built-in PID algorithm real-time adjustment of the output of the heating pipe or cooling system, the temperature fluctuations will be controlled within ± 0.5 ℃, while uploading the data to the MES system through the Ethernet, to meet the needs of the process traceability.
