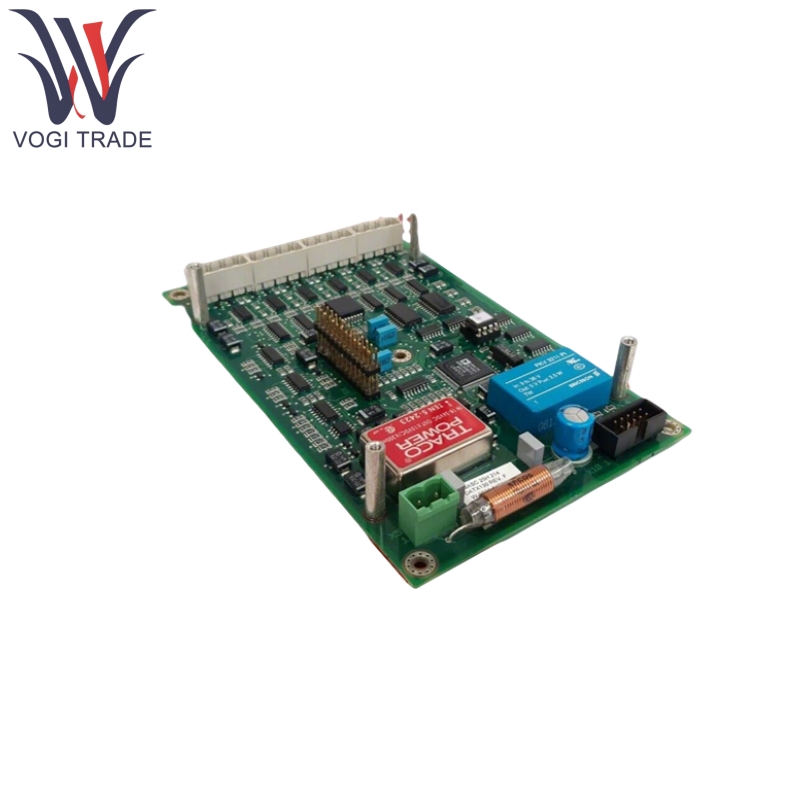

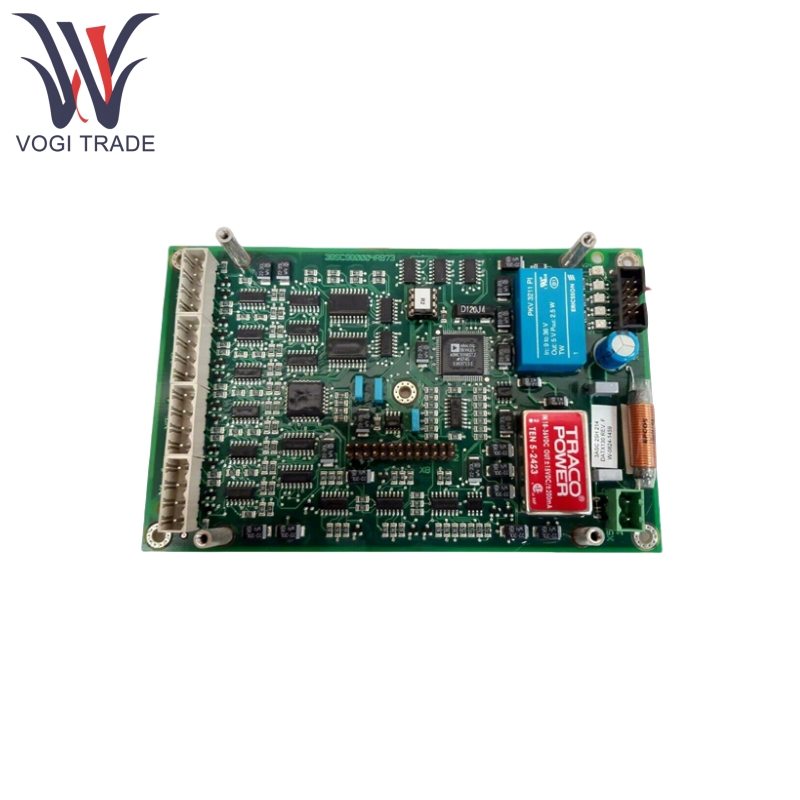

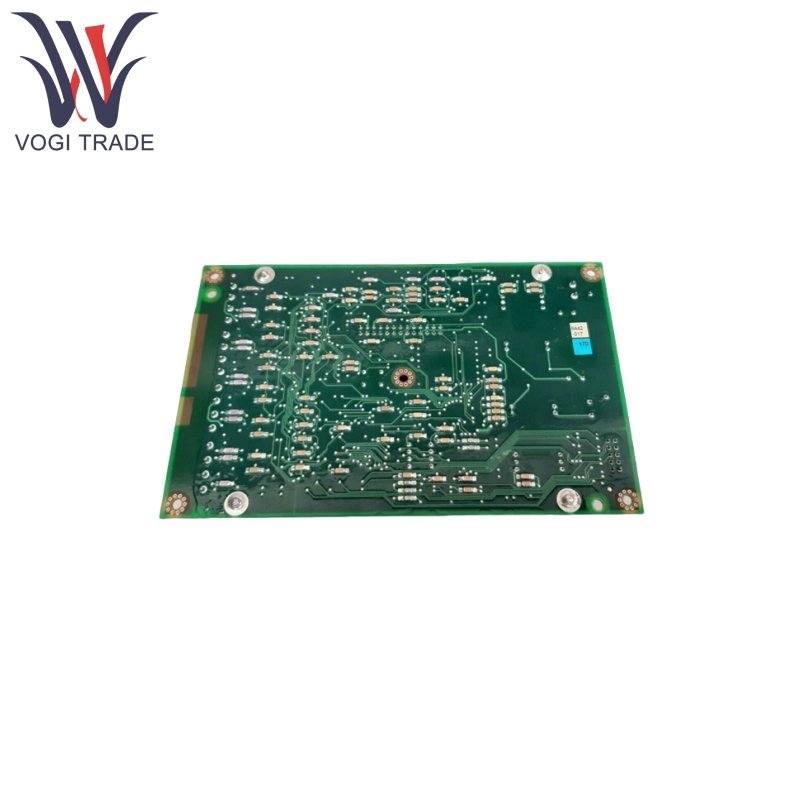

Brand: ABB Description: Rotor Feedback Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB DATX130 3ASC25H214 can monitor and control the rotor position, speed and angle information of rotating equipment in real time. It converts the collected physical signals into digital data through high-precision sensor interfaces and multi-protocol communication capabilities, providing closed-loop feedback to the control system to ensure the stability and accuracy of equipment operation.
|
Manufacture |
ABB |
|
Model Number |
DATX130 |
|
Ordering Number |
3ASC25H214 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9032900090 |
|
Dimension |
14*10*4cm |
|
Weight |
0.8kg |
Product Features
ABB DATX130 3ASC25H214 supports mainstream industrial protocols such as Ethernet/IP, Profinet, Powerlink, RS485, Modbus, Profibus, etc., which can be seamlessly connected to the control systems of different brands and realize efficient data interaction between devices.
ABB DATX130 3ASC25H214 can support IEC 61131-3 standard programming language through ABB Automation Builder and other software tools, and can customize complex control logic to meet diversified application requirements.
With 16-bit resolution, ABB DATX130 3ASC25H214 ensures high accuracy in position and speed monitoring with an error of less than 0.01%.
With 500kHz sampling rate, ABB DATX130 3ASC25H214 can capture rotor dynamics in real time, which is suitable for high-frequency response scenarios.
ABB DATX130 3ASC25H214 has 16 input channels, supports mixed analog and digital inputs, and can connect multiple sensors at the same time to realize multi-axis cooperative control.
Product Using Principle
ABB DATX130 3ASC25H214 can be connected to sensors such as resolver and encoder through a special interface to collect the position and speed signals of the rotor in real time.
ABB DATX130 3ASC25H214 built-in microprocessor filters, calibrates and transforms the raw data to generate standardized control instructions.
The processed data is sent to the PLC or DCS system through the selected communication protocol, and at the same time receives the instructions from the control system to realize closed-loop control.
The built-in self-diagnostic function monitors the sensor connection status and module operation health in real time, and sends alarm signals through LEDs or communication interfaces in case of abnormality.
Product Application
ABB DATX130 can be used for position feedback of joint motors to ensure the motion accuracy of robot end-effector.
ABB DATX130 can monitor the rotor speed of generators and work with inverters to achieve maximum power tracking and grid synchronization control.
In conveyor lines, robotic arms and other equipment, ABB DATX130 can optimize the motion trajectory through real-time feedback to improve production efficiency and product consistency.
ABB DATX130 can be integrated into power plant DCS systems to monitor turbine rotor status and prevent vibration overruns and mechanical failures.
ABB DATX130 can realize closed-loop control of motor speed to ensure smooth and safe operation.
