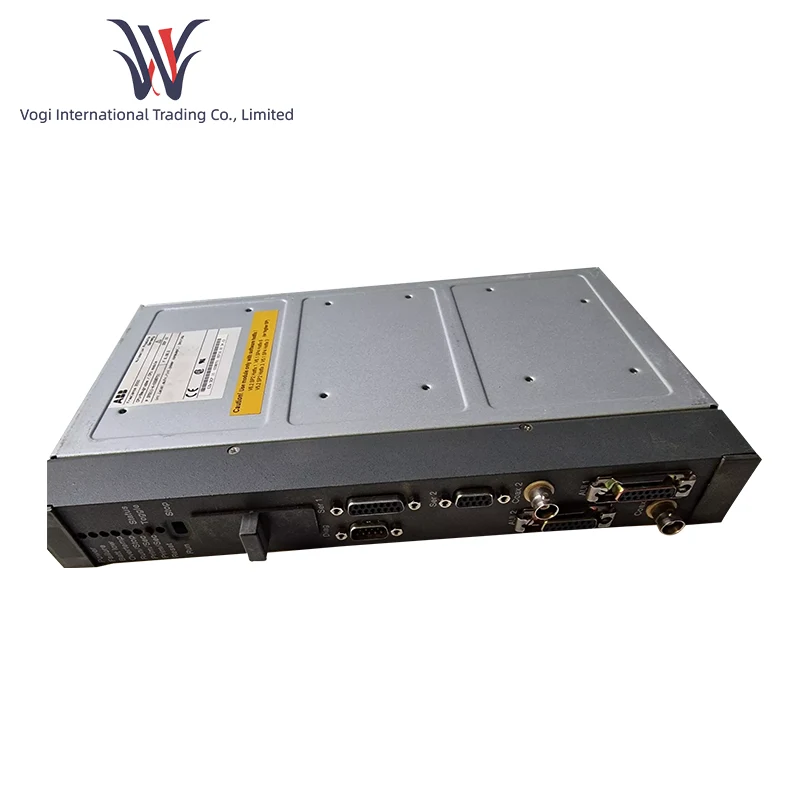

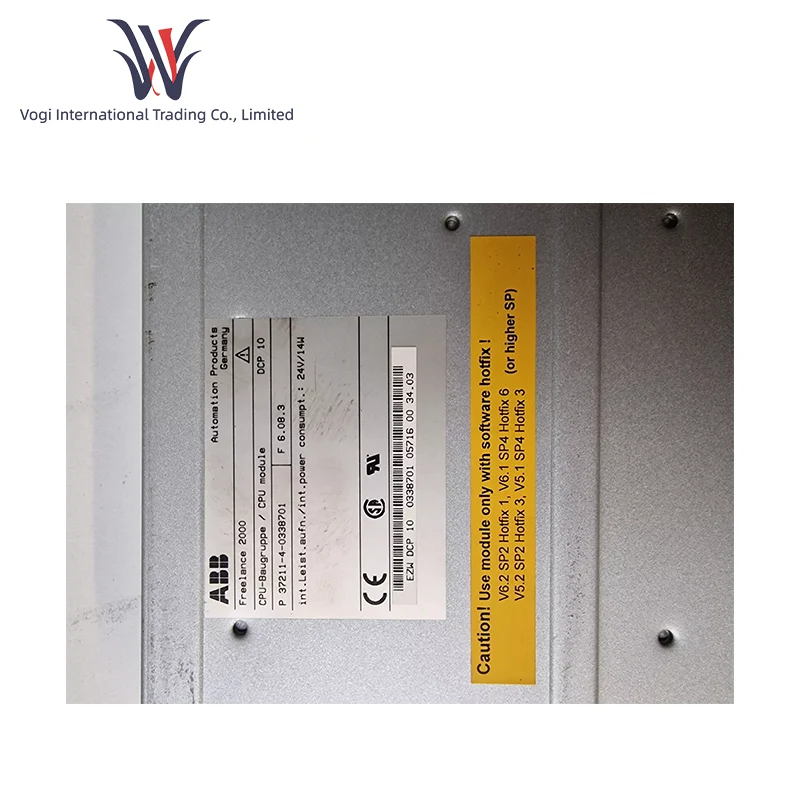

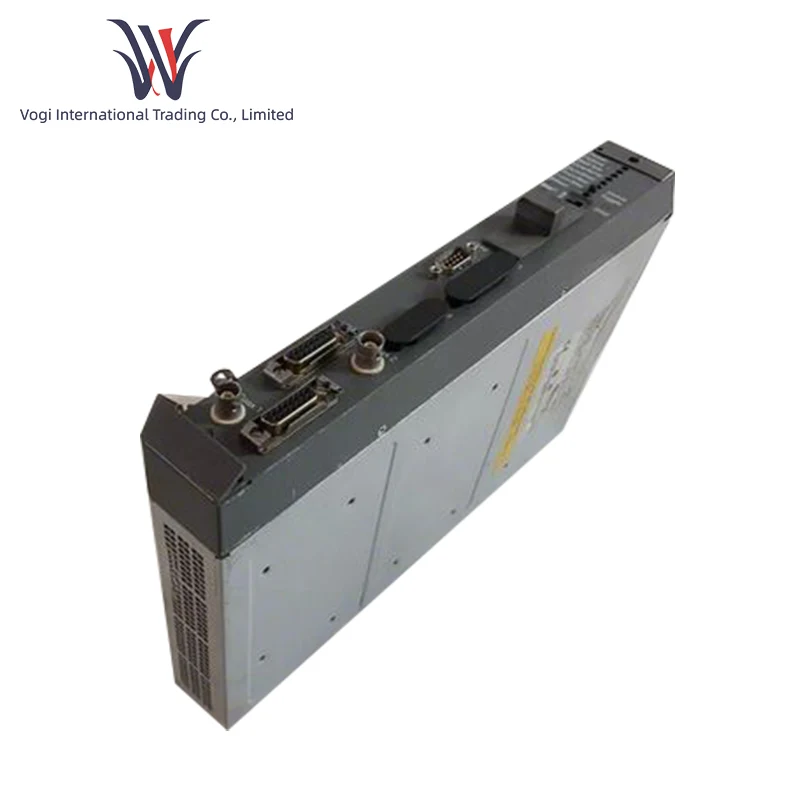

Brand: ABB Description: Communication Processing Module Condition: New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment term: T/T Shipping Port: ShenZhen ABB DCP10 has multiple power input modes, good power characteristics, supports multiple communication protocols, has high reliability and stability, is easy to maintain, has fast response speed, and is highly adaptable and easy to install.
|
Manufacture |
ABB |
|
Model Number: |
DCP10 |
|
Ordering Number |
Y0338701M |
|
Catalog |
VFD Spares |
|
Country Of Origin |
Sweden/USA |
|
HS CODE: |
8538900000 |
|
Dimension |
11*11*2 CM |
|
Packing Dimension |
13*13*4CM |
|
Weight |
0.135kg |
Technical parameters
Electrical characteristics
Operating voltage: 24VDC
Power consumption: typical 6W, minimum 4W, maximum 10W
Surge current: 6A peak (2ms stabilization time)
Output frequency: 30Hz (communication) / 2kHz (control response)
Operating temperature: -10°C to +60°C (industrial wide temperature range)
Humidity tolerance: 5–95% RH (no condensation)
Memory capacity: 8MB (supports complex calculations and big data processing)
Communication interface: Dual RS-485 redundant channels, support Profibus DP, DeviceNet, CANopen protocols
Display interaction: 4-line 20-character LCD screen with bar graph status indication
Analog output: 2-way 4-20mA isolated signal (±5% accuracy, load ≤500Ω)
Functional features
1. Real-time control and high-precision feedback
ABB DCP10 dynamically adjusts equipment operating parameters (such as voltage and temperature) through millisecond-level data acquisition and processing to ensure the stability and continuity of industrial processes
2. Industrial-grade environmental adaptability
With die-cast aluminum housing design, ABB DCP10 has IP protection level, anti-electromagnetic interference, vibration and dust erosion resistance, suitable for harsh scenarios such as substations and production lines
3. Open architecture and multi-brand compatibility
Developed based on the .NET framework, ABB DCP10 seamlessly integrates third-party systems such as ABB AC31 series controllers, Siemens PLC, Rockwell DCS, etc., and supports remote diagnosis and cross-platform configuration
4. Redundant safety and fault protection
With built-in overvoltage/overcurrent/overtemperature triple protection mechanism, combined with dual-channel communication redundancy, ABB DCP10 can automatically switch or shut down in abnormal situations, minimizing the risk of equipment damage
Application scenarios
Power system monitoring: used for substation DC power management, distribution equipment overload protection and real-time data acquisition
Industrial production line control: integrated PLC system to achieve robot motion feedback, production line voltage regulation and fault diagnosis
Energy infrastructure: Optimize power output stability in wind power/photovoltaic inverters and support grid-connected communication protocols
Traffic signal system: Control the electrified railway power supply network, monitor contact network voltage fluctuations in real time and trigger protection mechanisms
