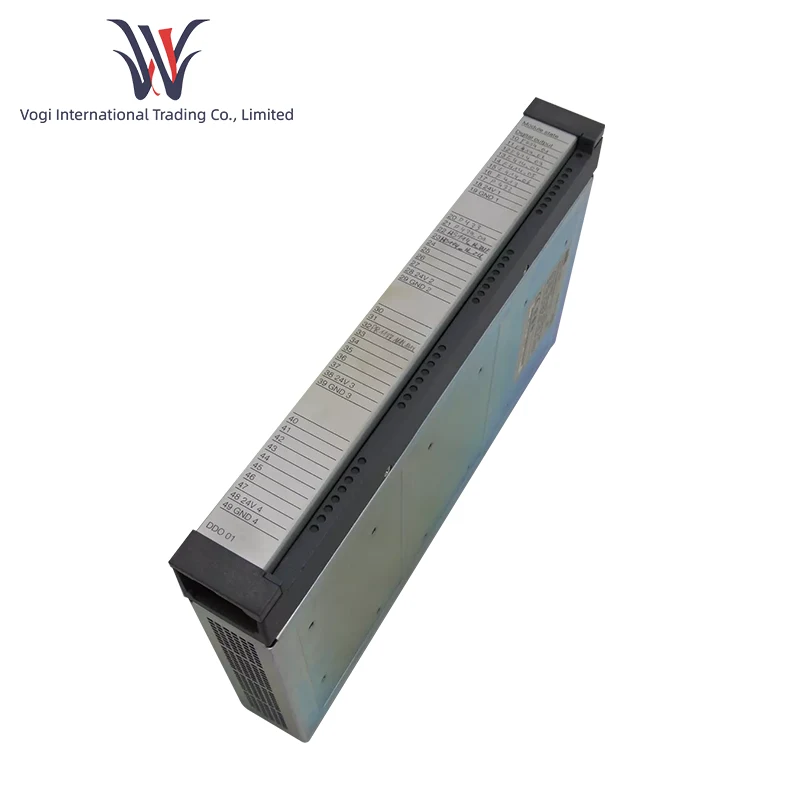

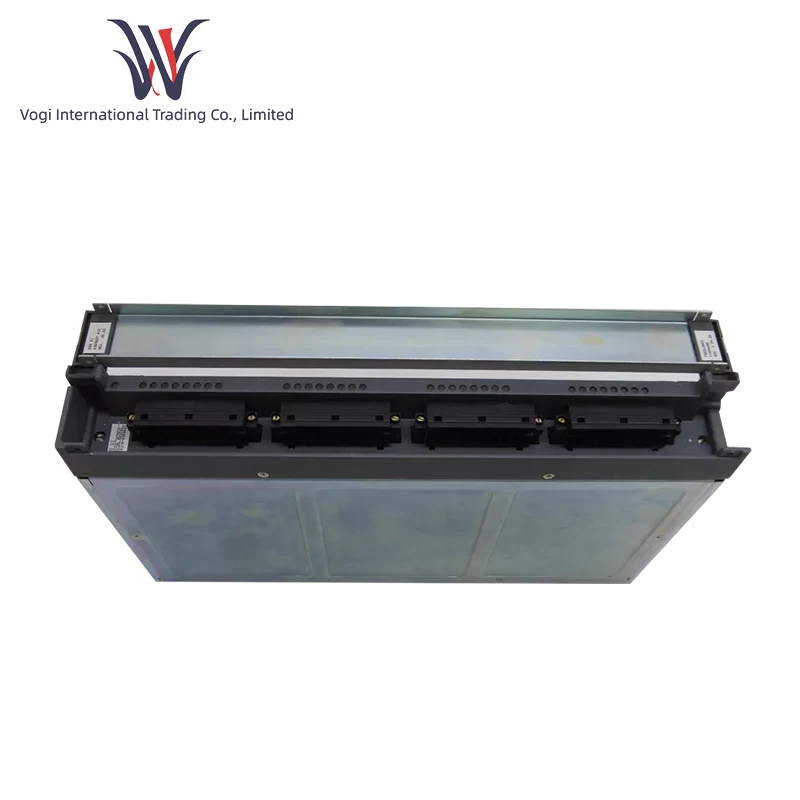

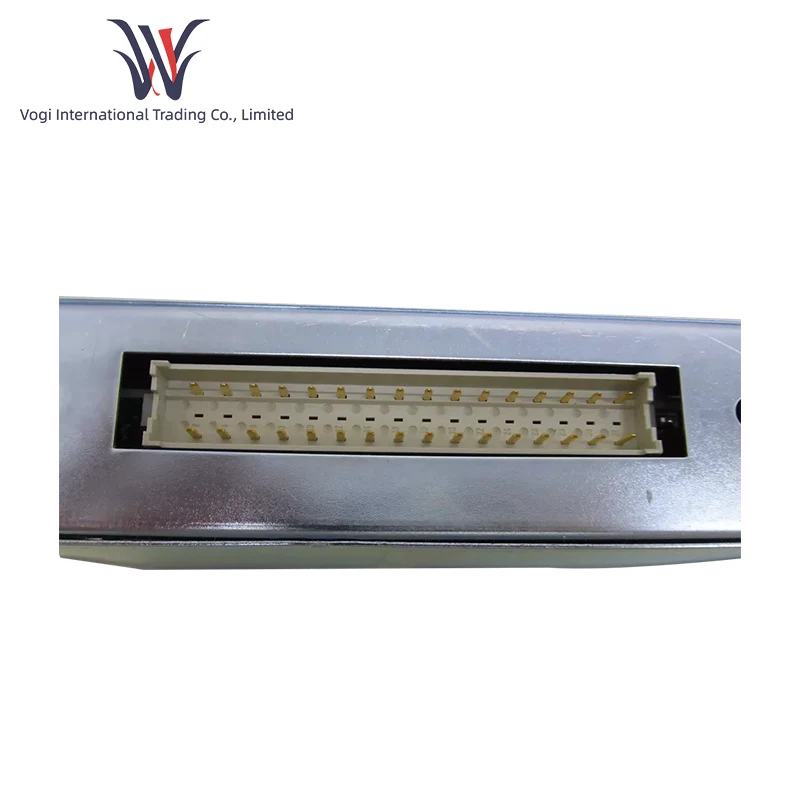

Brand: ABB Description: Digital Output Module Condition: New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Payment term: T/T Shipping Port: ShenZhen ABB DDO01 supports multi-channel signal input, each channel is independent of each other, has strong anti-interference ability, adapts to complex environments, has low module power consumption, supports multiple communication protocols, has high reliability and stability, is easy to maintain, has fast response speed, and has strong adaptability and is easy to install.
|
Manufacture |
ABB |
|
Model Number: |
DDO01 |
|
Ordering Number |
P37151 - 4 - 0369627 |
|
Catalog |
Freelance 2000 |
|
Country Of Origin |
Sweden/Germany |
|
HS CODE: |
85389091 |
|
Dimension |
33*20*5 CM |
|
Packing Dimension |
35*22*7CM |
|
Weight |
1.7kg |
Technical parameters
Input voltage: 24VDC (wide range: 18–30VDC, supports ±25% fluctuation)
Output voltage: 0–10VDC (adjustable, supports constant voltage/constant current output mode)
Output current: 0–1A (single-channel maximum load capacity)
Switching frequency: 2kHz (high-speed response, supports pulse control)
Power consumption: ≤2W (static power consumption 0.5W, dynamic peak power consumption 2W)
Operating temperature: -20℃ to +60℃ (industrial wide temperature range)
Protection level: IP20 (suitable for installation in control cabinet)
Number of channels: 8 isolated digital outputs (500VAC channel isolation)
Load type: supports inductive/resistive loads such as relay coils, solenoid valves, indicator lights, etc.
Status indication: independent LED indicator for each channel
Functional features
1. High-speed real-time control capability
ABB DDO01 achieves millisecond-level response through a 2kHz switching frequency, accurately drives actuators (such as start-stop motors, switch valves), and ensures the synchronization of production line processes.
2. Industrial-grade protection design
With a die-cast aluminum housing and wide temperature range support (-20℃ to +60℃), ABB DDO01 is resistant to vibration, dust and electromagnetic interference, and is suitable for harsh environments such as substations and oil platforms.
3. Multi-protocol compatibility and flexible integration
Supporting communication protocols such as Modbus RTU and Profibus DP, ABB DDO01 can be seamlessly connected to ABB Freelance2000 DCS, Siemens PLC and Rockwell control systems to achieve cross-platform collaboration.
4. Modular safety redundancy
With 500VAC electrical isolation and dual power supply redundant interface design between channels, ABB DDO01 automatically cuts off the output in case of overcurrent/short circuit to ensure continuous operation of the system.
Application scenarios
Industrial production line control: drive the start and stop of the conveyor belt motor and the switch of the robot arm gripper to realize the automation process of the assembly line.
Power system protection: Control the circuit breaker opening and closing coils, and link the overload protection device to perform power-off operations.
Building intelligent management: Output signals to control the start and stop of fire pumps, the on and off of lighting circuits, and the switch of exhaust valves.
Robot signal linkage: Feedback the robot arm position signal to the PLC (such as DO018 origin detection
