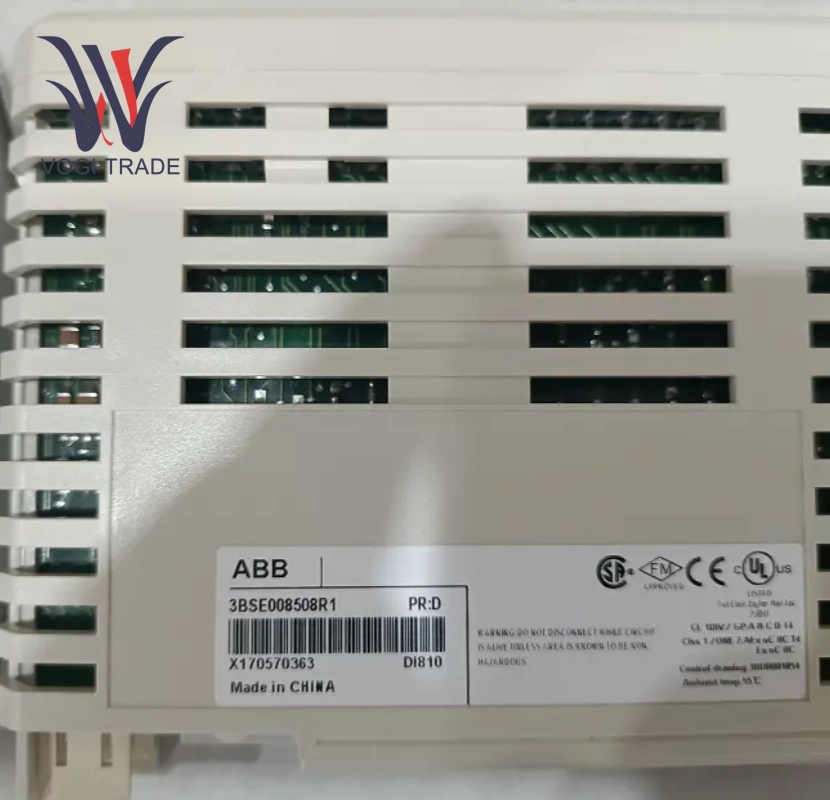

Brand: ABB Description: Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen ABB DI810 3BSE008508R1 is a high-performance digital input module designed by ABB. It belongs to the S800 I/O series and is designed for industrial automation control systems. It is suitable for discrete signal acquisition and processing in the fields of power, petrochemical, metallurgy, etc.
|
Manufacture |
ABB |
|
Model Number |
DI810 |
|
Ordering Number |
3BSE008508R1 |
|
Catalog |
AC 800M |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
13*12*6CM |
|
Packing Dimension |
15*15*8CM |
|
Weight |
0.3kg |
Technical Parameters
Number of input channels: 16 channels, ABB DI810 3BSE008508R1 support 24V DC switch signal input, isolation voltage 500V AC (isolated in two groups of 8 channels).
Input current: about 6 mA per channel, input impedance ≥ 20 kΩ, filter time 1 ms, maximum input frequency 100 kHz.
Power supply requirements: 24V DC power supply, power consumption less than 5 W.
Environmental adaptability: working temperature -40°C to +70°C, storage temperature -40°C to +85°C, humidity 5%~95% without condensation.
Expansion and compatibility: compatible with ABB AC800M, AC500 series control systems, support for use with terminal units such as TU810, TU830.
Product Features
Anti-interference design: industrial-grade protection (IP20), strong anti-electromagnetic interference ability, suitable for harsh environments such as dust and high temperature.
Hot-swap function: ABB DI810 3BSE008508R1 support online module replacement to reduce system downtime.
Real-time monitoring: each channel is equipped with an LED status indicator for quick fault diagnosis .
Certification and safety: Certified for use in hazardous areas as intrinsically safe under ATEX/IECEx Zone 2.
