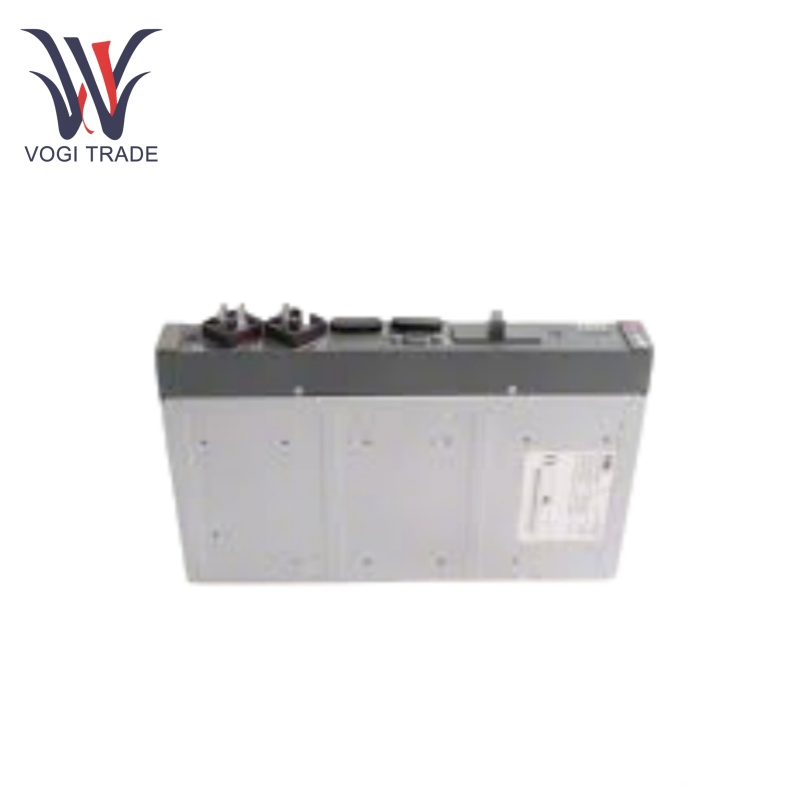

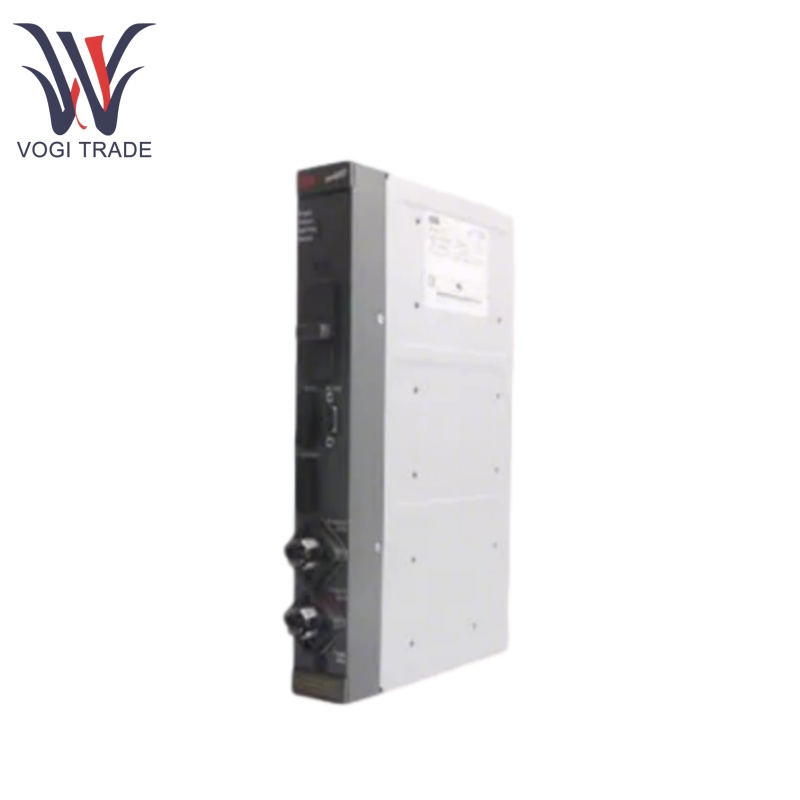

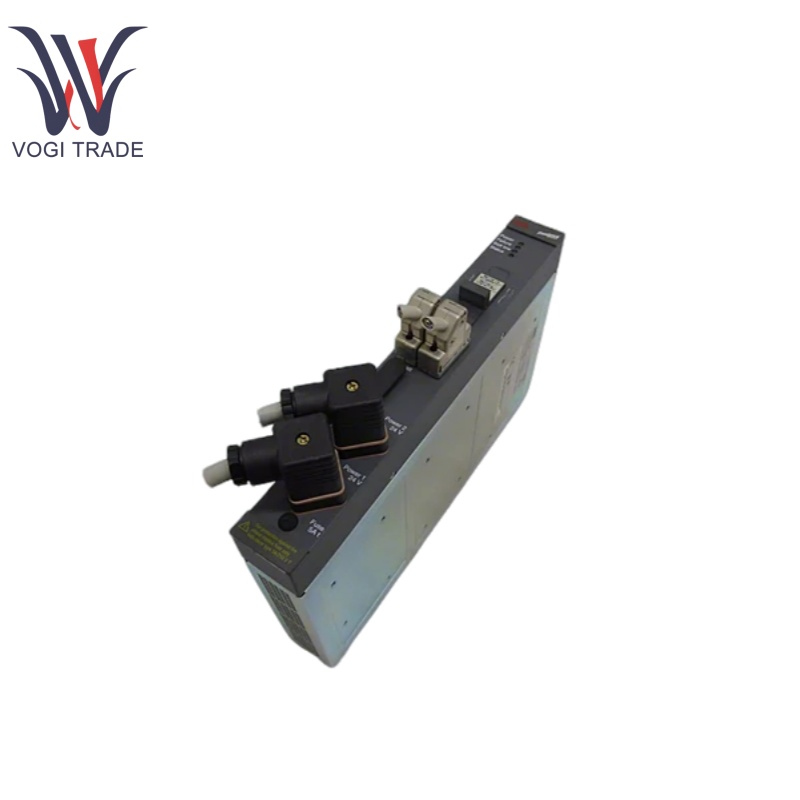

Brand: ABB Description:link module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 9 Payment Term: T/T Shipping Port: ShenZhen ABB DLM02 is a high performance link module especially suitable for applications involving programmable logic controllers. It facilitates data processing and signal conversion, enabling seamless communication between different components in an automation setup.
|
Manufacture |
ABB |
|
Model Number |
DLM02 |
|
Ordering Number |
0338434M |
|
Catalog |
Freelance 2000 |
|
Country Of Origin |
Sweden |
| HS CODE |
8543909000 |
|
Dimension |
25cm*15cm*5cm |
|
Packing Dimension |
27cm*17cm*7cm |
|
Weight |
1kg |
Operating Parameters
AC Input: 85–264 VAC ±10%, 50/60 Hz
DC Input: 24 VDC ±20%
Power Consumption: ≤10 W
Voltage Range: 9–30 VDC high level, 0–5 VDC low level
Response Time: ≤10 ms
Current Rating: 2 A per channel
Voltage Range: 30 VDC max transistor, 250 VAC/30 VDC relay
Operating Temperature Range:-25°C to +55°C
Extended:-40°C to +70°C
Product Functions
Data Conversion: Converts digital signals into analog outputs for compatibility with diverse control systems.
Signal Filtering: Employs advanced signal processing techniques to filter and process signals, enhancing system performance.
Digital Logic Control:The ABB DLM02 main function is a control for digital logic. It may communicate with all sorts of computerized input and output devices, making possible the implementation of sophisticated control logic. For example, in a manufacturing plant, ABB DLM02 can receive signals from limit switches, proximity sensors, and other digital sensors, and based on these inputs, control motors, valves, and other actuators via its digital outputs.
Built in Data Storage and Retrieval: Retention of operational data, allowing you to query it for analysis or troubleshooting. In a power generation facility, for example, it can log the status of different systems over time.
In terms of Communication Interfaces: ABB DLM02 provides several communication interfaces. Ethernet, RS-485 are common standards supported by different devices. In a smart factory satellite, it can communicate real time data to a cloud-based management platform for remote analysis and decision making.
Installation
Cleaning: Clean the surface where you are to apply the new adhesive.
Mount: The DLM02 should be mounted inside the control panel or directory enclosure per the manufacturer's specifications.
Wiring: Make electrical connections as shown in wiring diagrams in user manual.
Grounding: Make sure that you ground the module properly to avoid any electrical hazards.
Control: Use the required control system interface to configure the necessary parameters.
Application Scope
Industrial Automation: Heavily utilized in factory automation systems to control processes and machinery.
Process Control: ABB DLM02 Used in process industries to monitor and control the parameters.
Robotics: Integrated into robotic systems for precise control and data processing.
Energy Management: ABB DLM02 Utilized in energy distribution systems for efficient data handling and control.
Troubleshooting
Power Save: Check that input voltage is in spec.
Look for Connections: Tighten all electrical connections and insulate them to prevent short circuiting.
Signal Integrity: Ensure that the signals are within the acceptable range and free from noise or interference.
Diagnostic LEDs or Error Codes: Used to identify module specifics; refer to user manual for codes and interpretations
Environmental Conditions: Make sure that the device is operating within the suitable temperature range and is kept away from moisture and potentially hazardous materials.
