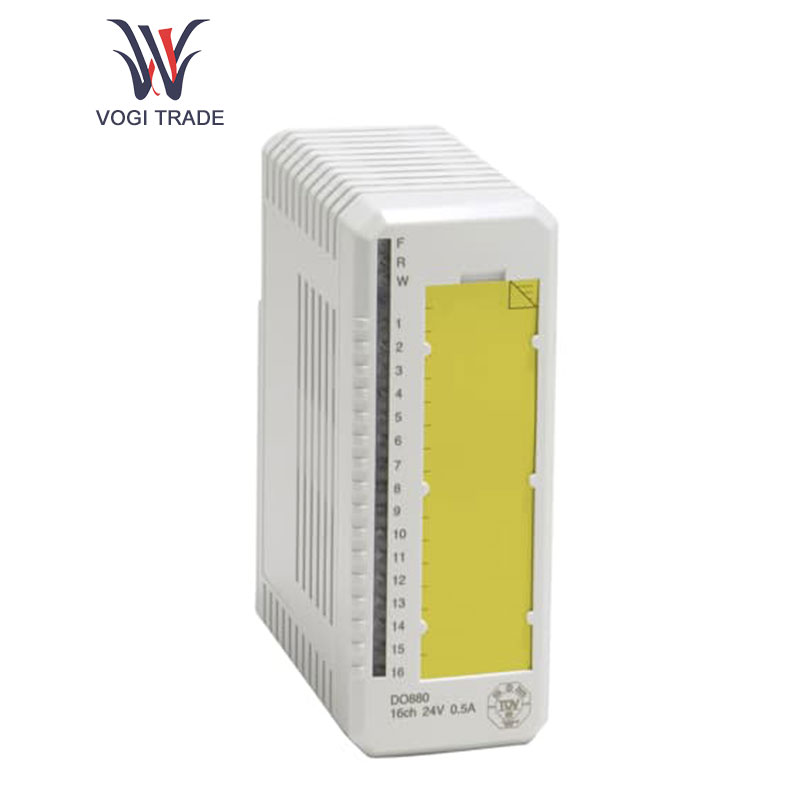

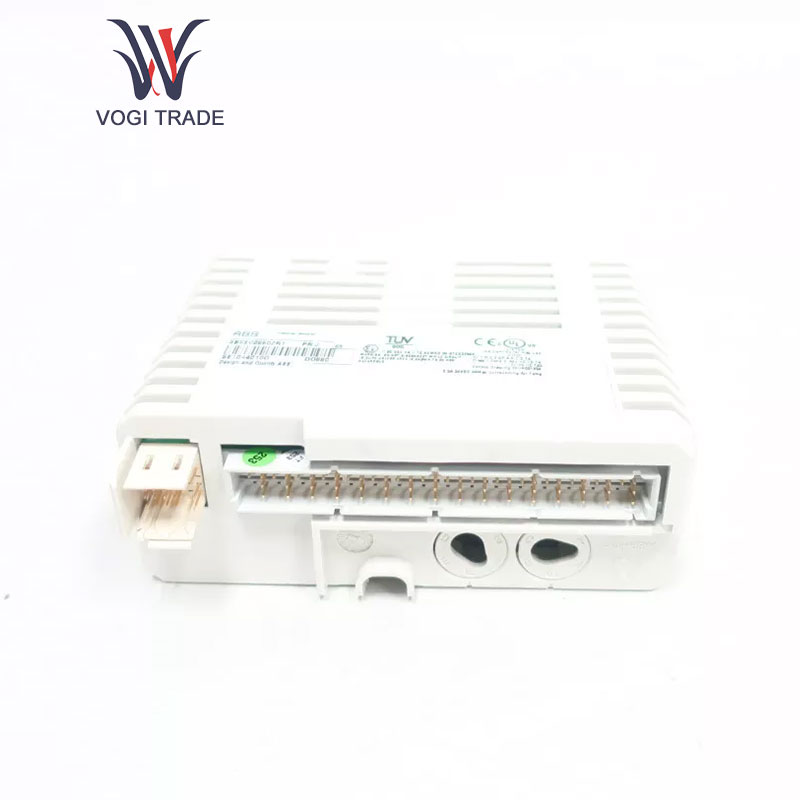

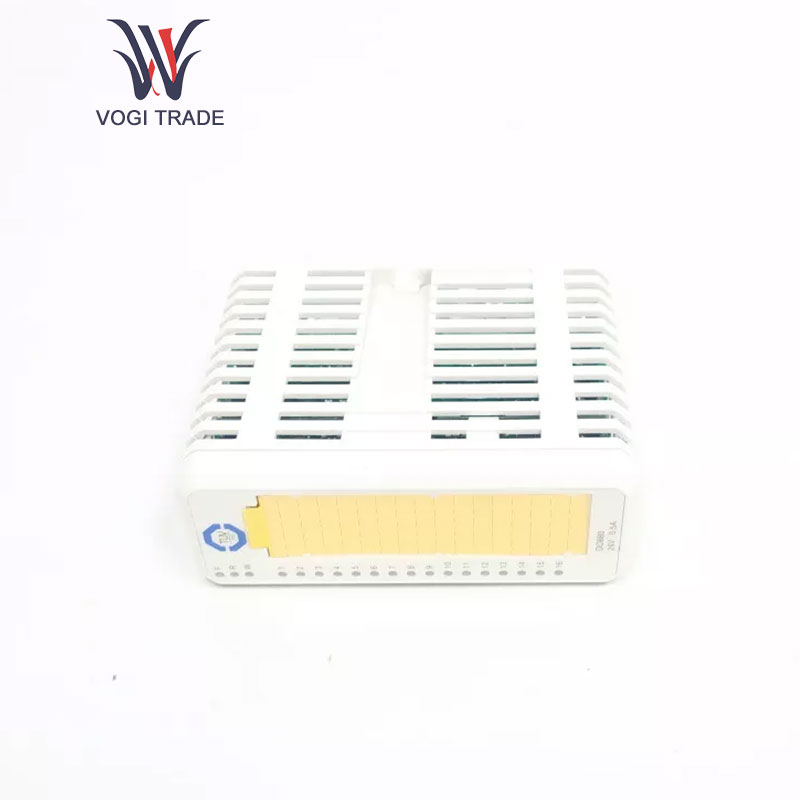

ABB DO880

Details

ABB DO880 Technical Documents

I. Product

ABB DO880 is a high-performance digital output module designed for industrial automation control systems. In industrial environments, DO880 plays an important role in converting control signals into digital outputs, driving various actuators (such as solenoid valves, contactors, indicator lights, etc.), and achieving precise control and status indication of industrial production processes.

II. Technical Specifications Output Channel

ABB DO880 has 8 digital output channels that work independently and can control all or any number of external devices at the same time to meet the multi-point control requirements of various industrial application scenarios. Output type and load capacity: The module supports two types: relay output and transistor output. Relay output can provide a maximum switching voltage of 250VAC or 30VDC and a maximum switching current of 2A, which is suitable for driving high-power AC or DC loads; transistor output can switch 30VDC at up to 0.5A. Its fast switching characteristics are suitable for the control of high-frequency, low-power DC loads, such as small solenoid valves or electronic indicator lights.

Reflection time

ABB DO880 generally has a relay output response time of about 10ms, while the transistor output response time is generally less than 1ms. Such an output response speed can meet the requirements of various industrial processes, so that the operation signal can be accurately transmitted and executed. Electrical isolation: Each output channel and each output channel and the internal circuit should have appropriate electrical isolation, with an isolation voltage of up to 1500VAC to eliminate signal crosstalk and prevent equipment from being damaged by external interference or equipment failure.

III.Functional features Status indication and monitoring

ABB DO880 has a corresponding status indicator for each output channel, so that the output status of the channel is clear at a glance, which is convenient for on-site operators to understand the operating status in real time. In addition, the module also supports the real-time status information of the output channel to be transmitted back to the upper control system, which is convenient for remote monitoring and fault diagnosis.

Diagnostic protection function

ABB DO880 integrates intelligent diagnostic function, regularly and in real time diagnoses the working status of the module, whether the output channel has short circuit, overload, open circuit and other faults. When an abnormality is detected, the corresponding protection measures are taken immediately, such as cutting off the output of the fault channel, alarming, etc., and the specific information of the fault is fed back to the host computer through the communication interface, so that maintenance personnel can troubleshoot and repair the equipment in time, minimize the equipment sleep time, and ensure the continuity of industrial production.

Communication interface

ABB DO880 integrates multiple standard communication interfaces such as Profibus-DP and Ethernet/IP, supports multiple industrial communication protocols, and can communicate and interact with upper control systems such as PLC, DCS and other equipment at high speed and stability, and effectively interact with the entire industrial automation network to achieve seamless connection with the entire industrial automation network, providing guarantee for the accurate transmission and execution of control instructions. 4. Installation and use Installation method: It adopts standard rail installation method, which can be easily installed on the rail of the industrial control cabinet without additional installation, saving installation time and space. Wiring method: Provide clear and clear terminal identification to facilitate users to correctly connect the cables of external load devices. When wiring, strictly follow the electrical installation guide to connect the cables, ensure that the cables are firm and not loose, and pay attention to the separate wiring requirements and specifications to ensure the normal performance and output of the module. Configuration and programming: Use ABB's dedicated programming software or host configuration tool to set the module parameters before use, such as selecting the output type, adjusting the output delay time, protocol configuration, etc., to meet the needs of industry applications. Monitor the output status of the module through the programming software, and change and optimize the control logic when the control system is operating normally.

Application field

ABB DO880 digital output module is widely used in power, chemical, petroleum, metallurgy, manufacturing, intelligent buildings, etc. For example, it is widely used in power systems to control the opening and closing operations of circuit breakers, disconnectors and other equipment in substations; provide drive for the solenoids of various valves to control the flow, pressure and other parameters of the vast space in chemical production; control the start and stop of motors and conveyor belts and the execution of various mechanical actions on manufacturing automation production lines; control the switch status of lighting systems, elevator operations, access control systems and other equipment in the field of intelligent buildings. This module provides digital output control for a wide range of applications as it greatly increases production methods, improves production efficiency, reduces labor costs, and at the same time helps the system to run better and safer.
