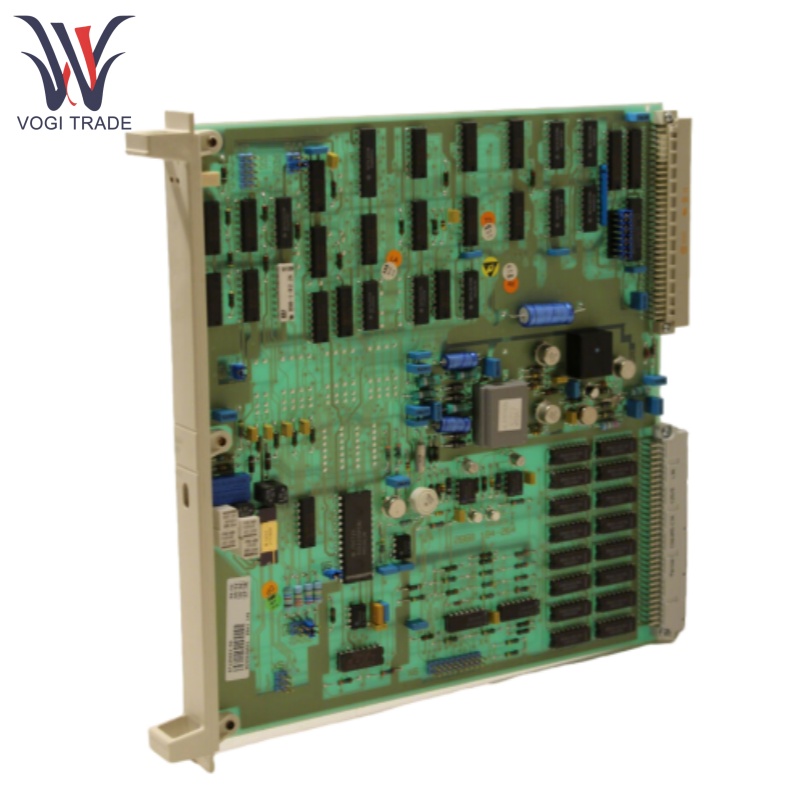

Brand: ABB Description: Analog Input Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen ABB DSAI145 is a high-performance Analog Input Unit suitable for industrial automation applications. It features 8 non-electrically isolated analog inputs, and the A/D converter has a resolution of 12 bits.
|
Manufacture |
ABB |
|
Model Number |
DSAI145 |
|
Ordering Number |
57120001-HA |
|
Catalog |
Advant OCS |
|
Country Of Origin |
Sweden |
|
HS CODE |
7326909000 |
|
Dimension |
40cm*40cm*6cm |
|
Packing Dimension |
42cm*42cm*8cm |
|
Weight |
1kg |
Technical Parameter
Operating Voltage: 24V DC.
Input Range: - 200°C to + 1500°C.
Accuracy: ± 0.1°C.
Response Time: Less than 1 second.
Current Consumption: Maximum 6mA.
Connection Type: BNC connector.
Environmental Conditions: IP20 rated.
Operating temperature： - 10°C to + 55°C.
storage temperature: - 20°C to + 70°C.
Functional Characteristics
High-Precision Measurement: ABB DSAI145 has a high - precision temperature measurement function, the resolution is 0.01°C, the accuracy is ± 0.1% of the measured value, can provide reliable temperature data on the harsh environment.
Wide Compatibility: ABB DSAI145 supports CU50 RTDs with a temperature coefficient of resistance of 0.385% per °C, being compatible with a variety of temperature sensors, which improves the flexibility of the system.
Modular Design: Modular I/O bus interface of ABB DSAI145 is easy to fill in existing control systems, adapt to system expansion and upgrade.
Configurable Inputs: The 8 analog input is electrically non-isolated, and can be individually set in a very big number of different operating modes, hence increasing the versatility of the module by allowing the input to act as digital inputs.
Application Areas
Process Industry: ABB DSAI145 is utilized extensively in the chemical, petroleum, and pharmaceutical industries to accurately measure and control the temperature of process media, ensuring the stability and safety of production processes.
Metallurgical Industry: In the metallurgical production process, it is used to detect the temperature of furnace and metal material which can improve the quality of metal products.
Power Industry: ABB DSAI145 is applied to the temperature monitoring of power generation equipment such as boilers and turbines, which is of great significance for ensuring the normal operation of power plants and improving power generation efficiency.
HVAC System: It is used to measure the temperature of the air and the water, and obtain the purposes of energy - saving and comfortable environment in the heating, ventilation and air - conditioning systems.
