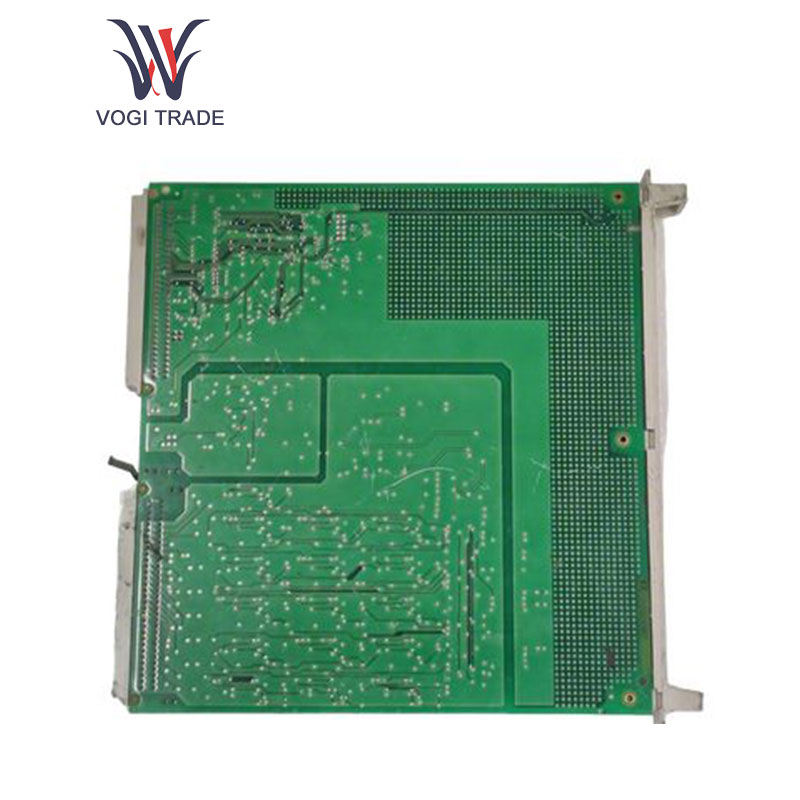

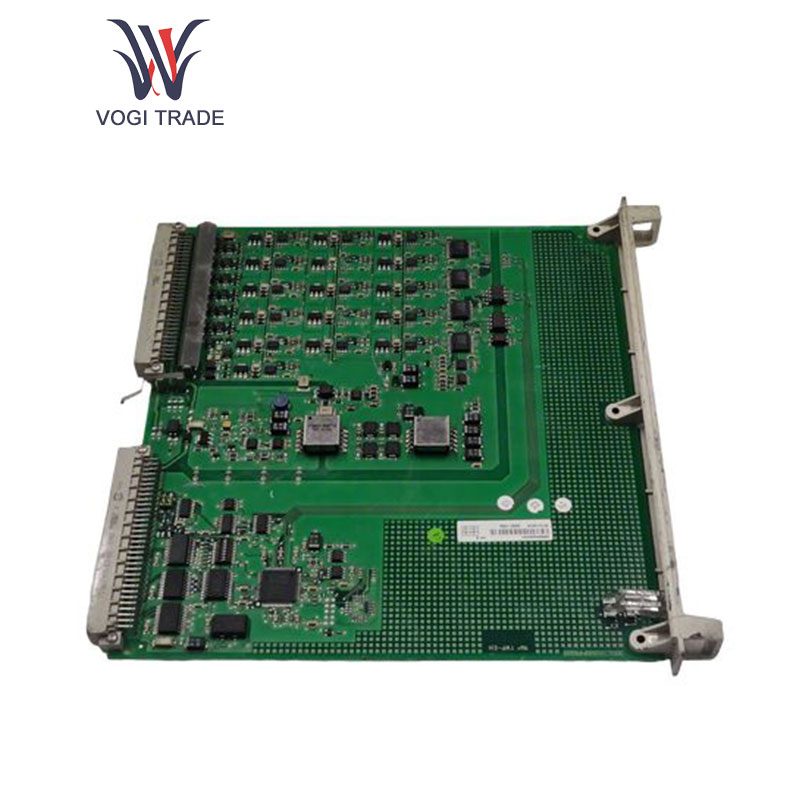

ABB DSAO130

Details

ABB DSAO130 Technical Documents

I. Product

ABB DSAO130 is a multifunctional analog output module that can be successfully integrated into various applications in industrial automation control. The main function of this module is to accurately forward digital signals in the form of analog output signals, provide control instructions for different actuators in the industrial process, and ensure efficient, stable and reliable operation of the production process.

II. Technical Specifications

Output Channels

ABB DSAO130 has 3 independent analog output channels, which can output to multiple devices at the same time, and can also control different control loops to achieve multi-point control of complex systems in industrial environments.

Signal Type and Range

ABB DSAO130 supports 0-10V voltage signal and 4-20mA current signal output. The voltage output accuracy can reach ±0.1%, and the current output accuracy can reach ±0.2%. This high-precision output capability can control the actuator very accurately, greatly improving the accuracy of industrial process control.

Resolution

ABB DSAO130 has 12-bit resolution. The voltage output and current output can present rich signal change levels in detail, providing strong support for fine-tuning parameters such as accurate response of processes such as flow and pressure.

Load capacity

The minimum load resistance of voltage output is [X] ohms, which can accommodate a variety of high-resistance load devices; the maximum load resistance of current output can reach [Y] ohms, which can adapt to various current drive requirements in different industrial occasions and ensure stable control of the actuator.

III. Functional features

Signal conversion, stable output

ABB DSAO130 can efficiently convert the digital signal of the control system into an analog signal, and still maintain stable output characteristics in a dynamic industrial environment, without being affected by the outside world, ensuring the reliability and accuracy of the actuator's control signal and the stability of the industrial production process.

Diagnosis and protection function

ABB DSAO130 has a built-in intelligent diagnosis mechanism, which can monitor the working status of the module itself in real time online, including the normality of the output signal or the subsequent discovery of internal circuit faults. To this end, the setting immediately takes protective measures when an abnormality is found, such as stopping the output of the abnormal channel and promptly transmitting the fault alarm information to the upper control system, so as to locate and handle the fault within a reasonable time, and minimize the occurrence of production infringement incidents caused by module failure.

Communication interface compatibility

The use of industrial standard communication interfaces such as Profibus-DP can seamlessly connect with the upper control system, comply with relevant communication protocols, achieve efficient data exchange, quickly respond to the control system's commands, and achieve dynamic and more precise control of industrial processes.

IV. Installation and use

Installation method

ABB DSAO130 adopts a standard rail installation design, which can be easily and quickly installed on the industrial control cabinet rail, saving installation space and facilitating later maintenance and repair.

Wiring point

The terminal identification is clear, which is convenient for users to accurately connect the output cable to the corresponding execution device. It should be noted that the electrical installation specifications must be strictly followed when wiring, and the cable shielding must be strictly done to reduce the impact of electromagnetic interference on the transmission quality and ensure that the output signal is stable and reliable.

Parameter configuration

Module output signal type, range, speed response and other parameters can be flexibly set through the supporting programming software or host computer configuration tool to accurately adapt to the specific control requirements of different industrial application scenarios, so as to be seamlessly integrated into the entire automation control system.

V. Application fields

ABB DSAO130 is widely used in chemical, electric power, pharmaceutical, food, beverage and other industrial fields, providing precise control equivalent to chemical production conditions, such as temperature, pressure, flow, etc. of chemical reactions; power industry controls motor speed and voltage control; pharmaceutical, food and beverage industries, these conditions play an extremely critical role in determining the raw material ratio and controlling the fine conditions in the processing process, which is of great significance to improving product quality, optimizing production efficiency and safe and stable operation of industrial processes.
