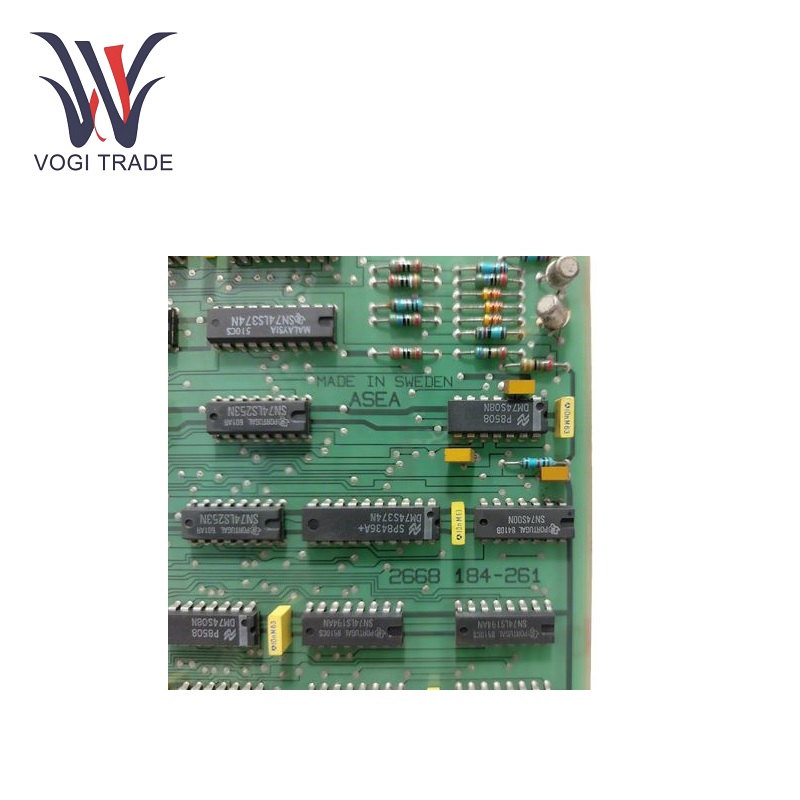

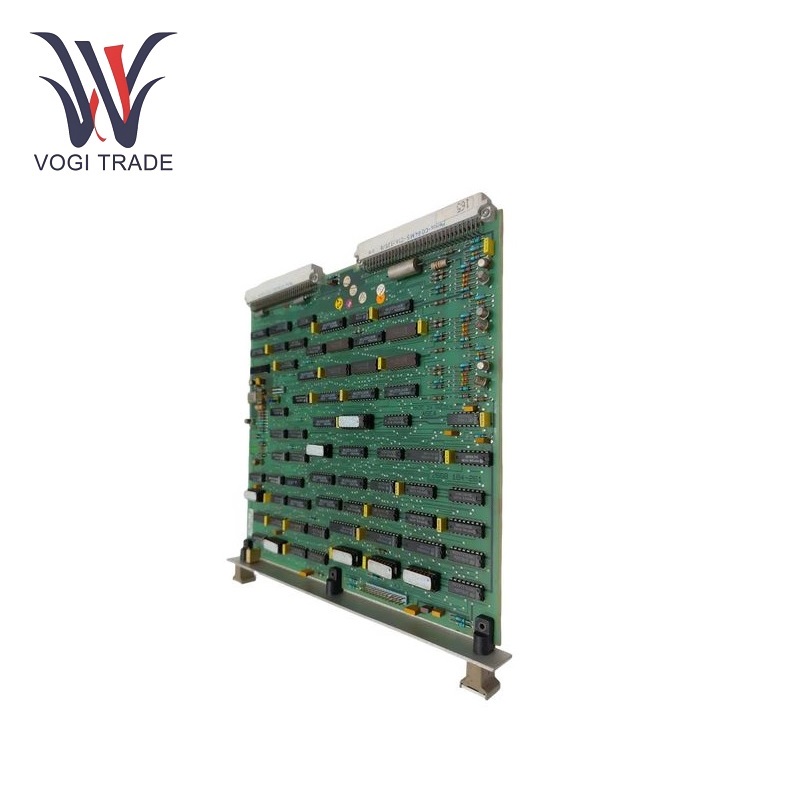

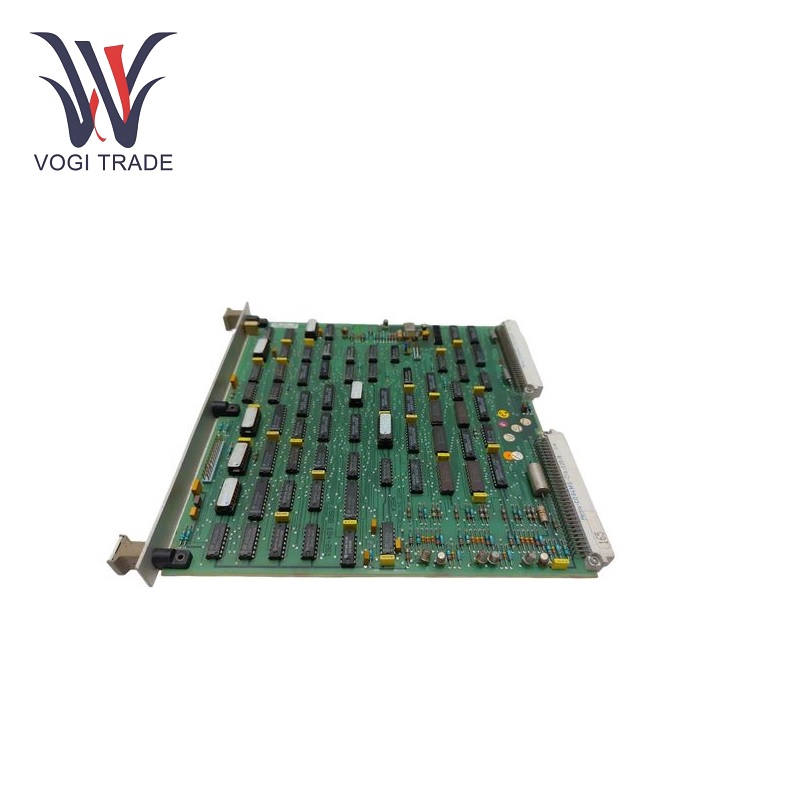

Brand: ABB Description: Video Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen The ABB DSAV111 is a powerful and reliable product that is well suited for a wide range of industrial applications thanks to its flexible I/O configuration, advanced communication options and rugged design.
|
Manufacture |
ABB |
|
Model Number |
DSAV111 |
|
Ordering Number |
EXC57350001-CN |
|
Catalog |
- |
|
Country Of Origin |
Sweden |
|
HS CODE |
85389091 |
|
Dimension |
24cm*2cm*25.5cm |
|
Packing Dimension |
26.3cm*5.8cm*28cm |
|
Weight |
0.4kg |
Working Parameters
Power supply: ABB DSAV111 rated voltage is 85 – 132V, frequency range is 47 – 63 HZ, rated current is 0.5A, contact current is 0.5A (DC rated, AC resistance peak), and contacts can switch 200 VDC peak.
I/O: arbitrarily configured discrete I/O 2K, analog I/O 8K, 4 serial ports, 3.1 amps. The input voltage of some components is 5 volts DC.
Product Features
Expansion and communication: 4 I/O expansion plug-ins, configurable isolated 4 – 20MA analog input card, isolated dual-channel digital input card, isolated 4 – 20MA analog output card combination. In addition, ABB DSAV111 also has a communication expansion plug-in connector for Ethernet 10 - 100BaseT card or analog modem, with excellent scalability and communication capabilities.
Monitoring and Display: NEMA® 4X (IP 66) type enclosure for extra protection* Alphanumeric display with scrolling control for monitoring and operation For alarms, there are four programmable relay contacts and one self-diagnostic relay contact for real-time status indication and fault detection.
Data Exchange: 112 | DNP3 Serial and TCP/IP Communication Protocol Supports DNP3 (serial and TCP/IP) for communication, allowing seamless integration with other devices in the system for secure and efficient data exchange, as manufacturers increasingly adopt DNP3 as the best for reliability and robustness1 Locally isolated RS-232 and remotely isolated RS-485 serial ports allow seamless data exchange with other devices in the system.
Data Logging: ABB DSAV111 enables extended data and event logging at a configurable rate, which is essential for system performance analysis and problem troubleshooting.
Applications
Industrial Automation: General applications include metallurgy, oil and gas, petrochemical, chemical, pulp and paper, food and beverage, etc. It can be used for process control, monitoring and automation systems (batch process control, continuous process control, and even quality control).
Power generation: Automation of boiler, turbine and whole plant control in power plants is essential to ensure the smooth operation of energy facilities.
Water and wastewater treatment: ABB DSAV111 is used for process monitoring and control in water and wastewater treatment plants, providing accurate real-time control of many parameters for efficient treatment process management.
