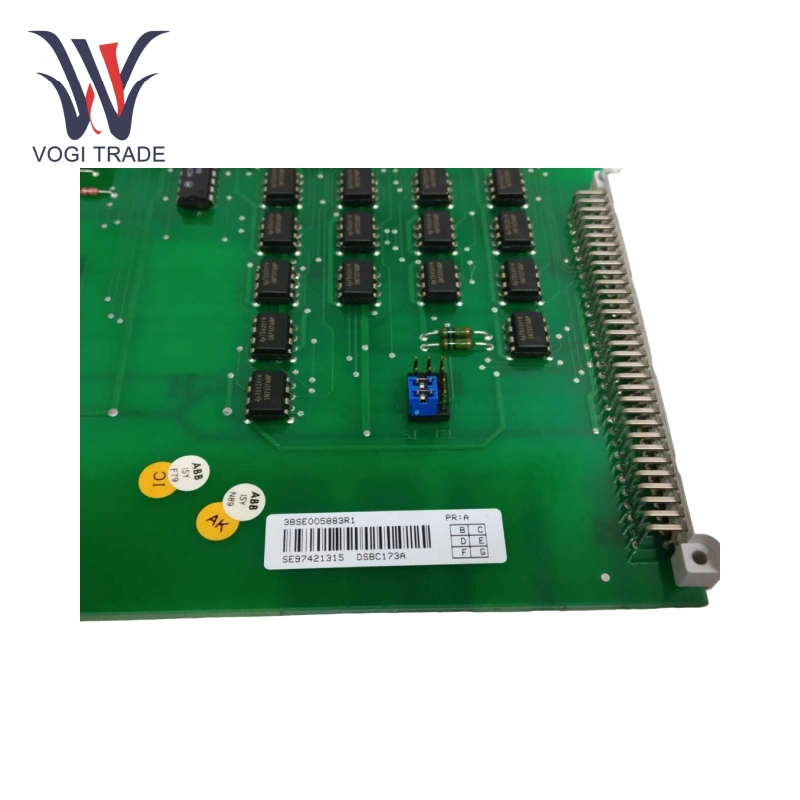

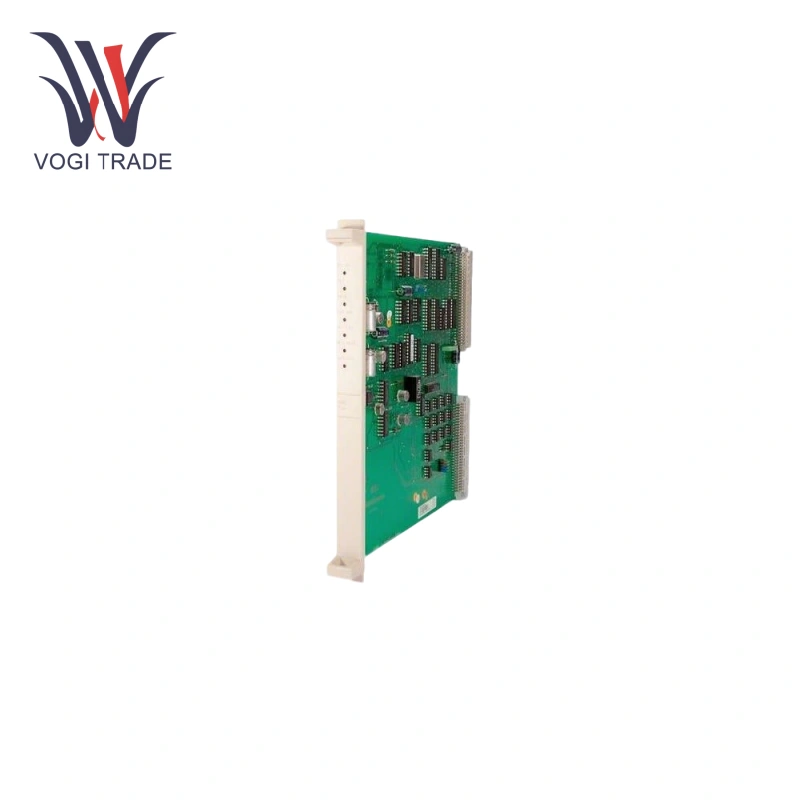

Brand: ABB Description: Bus Extender S100 I / O Bus Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB DSBC 173A is used as a communication relay between devices in industrial automation systems to enhance signal stability and extend transmission distances.
|
Manufacture |
ABB |
|
Model Number |
DSBC 173A |
|
Ordering Number |
3BSE005883R1 |
|
Catalog |
Advant OCS |
|
Country Of Origin |
Sweden |
|
HS CODE |
8538900000 |
|
Dimension |
16*11*4CM |
|
Packing Dimension |
18*13*6CM |
|
Weight |
0.5KG |
Technical Parameters
Bus type: MasterBus 300;
Isolation voltage: 2500 V RMS;
Communication rate: up to 1.5 Mbps;
Operating temperature: -25°C to +70°C;
Interface type: RJ45 (supports twisted pair/fiber optic).
Core Functions
Bus signal relay and extension:Repeat bus signals, allowing multiple devices to communicate on a single bus, extending the transmission distance to more than 1000 meters.
Redundancy and High Reliability:DSBC 173A supports dual-bus redundancy configuration, automatically switching faulty links to ensure continuous system operation.
Anti-interference design: electrical isolation and shielding technology to reduce electromagnetic interference in the industrial field, to ensure the stability of data transmission.
Typical Application Scenarios
Industrial automation control: ABB DSBC 173A extends the bus network in factory automation system, connects PLC, sensors and actuators, and improves system scalability.
Process monitoring and data acquisition: ABB DSBC 173A is integrated into DCS or SCADA system for data relay and real-time monitoring of remote equipment, applicable to chemical and electric power industries.
Infrastructure Automation:Applied to building automation (such as HVAC control), traffic signal system and other scenarios, to ensure the stability of the communication link.
