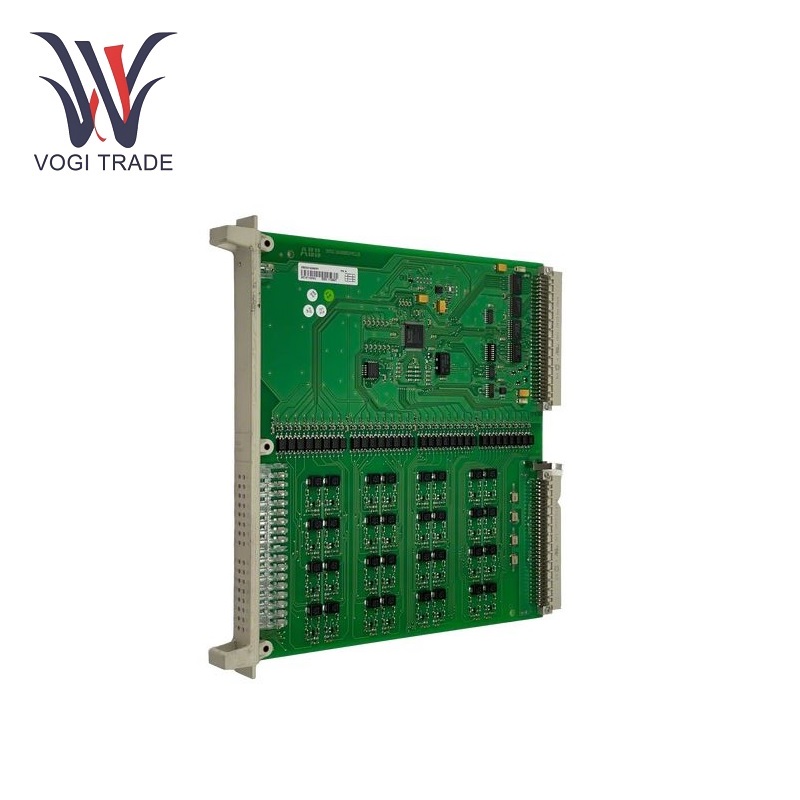

ABB DSDI110AV1

Power Supply: The back of the PLC module is a standard 24Vdc power supply commonly used for industrial purposes, which ensures that the system has a stable power supply when entering the power circuit.

Input Channels: The ABB DSDI110AV1 has 32 digital input channels that can be connected to multiple digital sensors, switches or other digital devices at the same time. The multi-channel design allows multiple signals to be monitored in one module, simplifying and reducing the footprint of the control system.

Optical Isolation: The system protects analog and digital inputs by optically isolating them from the system potential, which prevents various electrical interferences. In addition, this isolation protects the module and any equipment connected to it from surges or faults.

Scan Cycle Time: Depending on the nature of the application, the scan cycle time can be selected in the range of 10 milliseconds to 2 seconds. This ensures that the data acquisition rate can adapt to the speed and dynamics of the monitored process.

Input Signals are Filtered: The input board filters the input signal to avoid such electrical interference or contact jitter. Depending on the specific board, the filtering time can be fixed to 5 milliseconds or adjusted as needed.

Product Features

High-precision input: High-precision digital inputs are designed to detect and reflect digital signals. This accuracy is very important for applications that require precise sensing and control, such as manufacturing processes and quality control systems.

Alarm and protection functions: This can avoid damage to equipment and ensure the safety of business procedures. Configure alarm signals to initiate potential actions or alarms and facilitate timely responses and corrective measures.

Fully callable: ABB DSDI110AV1 is highly programmable, which means that users can configure and customize its functions according to specific application requirements. At the same time, it provides users with programming functions, including input filtering, scan cycle time, alarm thresholds, etc., allowing the module to adapt to different control strategies and algorithms.

Communication interface for different protocols: Designed to easily interface with other devices in the automation network. This allows data to be transmitted between digital input modules and control systems, as well as other peripherals such as programmable logic controllers (PLCs), human-machine interfaces (HMIs), and supervisory control and data acquisition (SCADA) systems.

Application Range

Process industries: (such as chemicals, pharmaceuticals, and food processing) monitor process variables and provide equipment status. This sophisticated electronic device can also obtain signals from level sensors, pressure switches, temperature sensors and other digital devices, not only to keep the production process going, but also to ensure the safety and quality of the entire production process.

Energy Management: Used in energy management systems to collect the status of electric engines such as motors, pumps and generators. To achieve these processes, ABB DSDI110AV1 detects the on/off status of these devices and other related signals to facilitate energy consumption monitoring, improve energy efficiency and provide predictive maintenance for energy-intensive equipment.

Transportation and Logistics: In transportation systems such as conveyor systems in warehouses and ports, AGVs are used to track and record the movement and location of objects and goods. It can also be used in conjunction with traffic control systems, such as obtaining signals from lights, sensors and other objects, to achieve efficient traffic management and improve the route efficiency of overall transportation and logistics operations.
