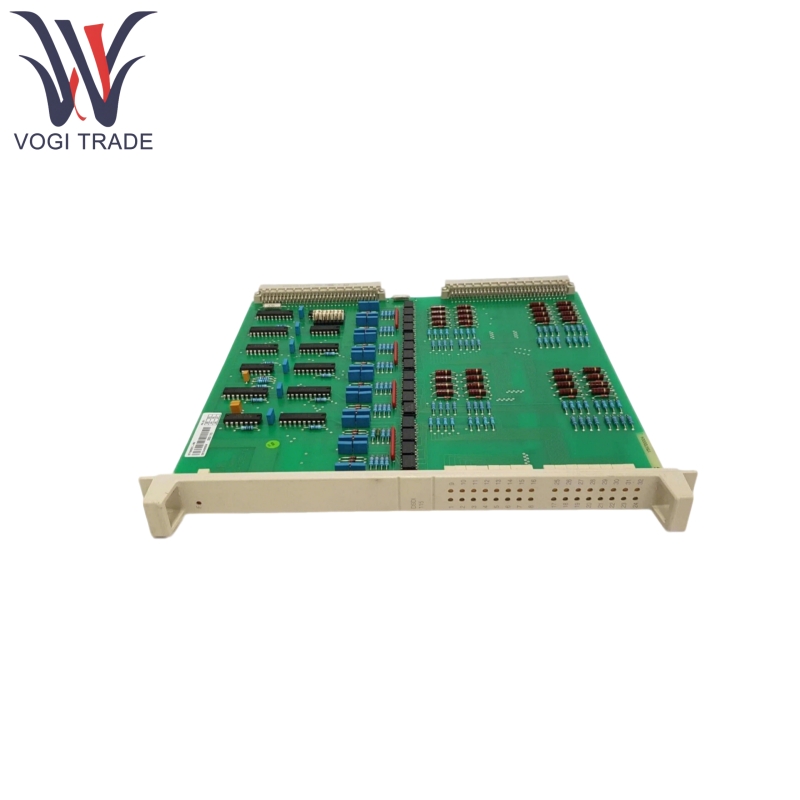

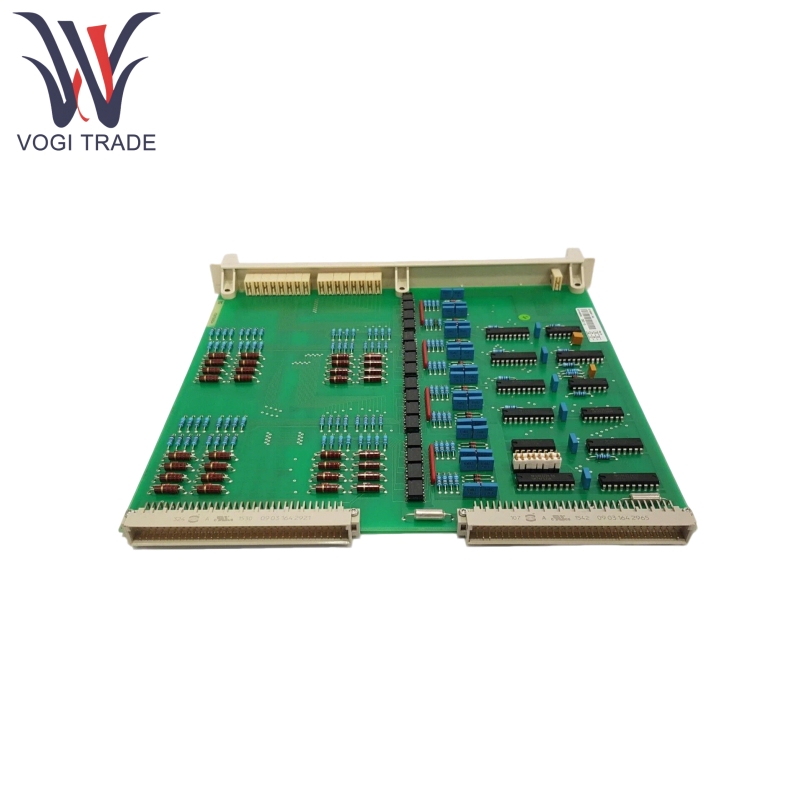

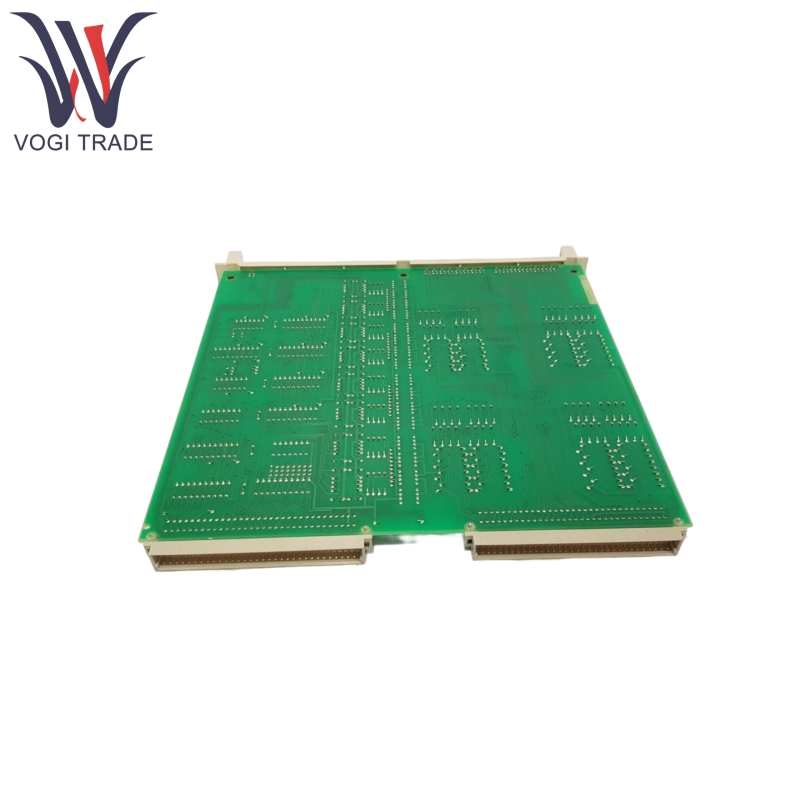

Brand: ABB Description: Point Digital Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB DSDI115 57160001-NV is used to collect switching signals from external devices and convert them into digital signals for processing by the control system. It supports multi-channel parallel input with high precision, high reliability and anti-interference capability, and is suitable for harsh industrial environments.
|
Manufacture |
ABB |
|
Model Number |
DSDI115 |
|
Ordering Number |
57160001-NV |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
26*26*6cm |
|
Weight |
0.4kg |
Product Features
ABB DSDI115 57160001-NV supports 32 independent digital input channels to monitor the status of multiple devices simultaneously.
ABB DSDI115 57160001-NV supports dry contacts (passive contacts) and wet contacts (active signals), such as mechanical switches, relay contacts, photoelectric sensors and so on.
ABB DSDI115 57160001-NV utilizes opto-electronic isolation between the input channels and the system, with a typical isolation voltage of DC 1500V, to effectively prevent external interference and surge damage.
ABB DSDI115 57160001-NV is equipped with status indicators (LEDs) to show real-time channel status, power failure or communication abnormality.
ABB DSDI115 57160001-NV sets parameters such as input type (normally open/closed), filtering time (to eliminate signal jitter) through software or dip switches.
ABB DSDI115 57160001-NV supports a variety of industrial communication protocols (Profibus DP, Modbus, etc.) and can be seamlessly integrated with higher-level control systems.
Product Using Principle
ABB DSDI115 57160001-NV isolates the external input signal from the internal circuitry via a photocoupler. When the external contact is closed or the signal level changes, the photodiode conducts and triggers the internal circuit to convert to a digital signal (0 or 1). The specific process is as follows:
Signal Acquisition: The status of external devices (e.g. buttons) is input via dry/wet contacts.
Optical isolation: The photocoupler converts the external signal into an optical signal to avoid electrical interference.
Signal Conditioning: Internal circuitry filters, amplifies and level converts the signal.
Digital Output: The processed signals are transmitted to the controller via the backplane bus for logic operation.
Product Parameter
The following detail is for ABB DSDI115 57160001-NV Point Digital Input Module.
Input Voltage: 24V DC (typical), supporting a wide range of 9-36V DC redundant power supply.
Response Time: ≤10ms (typical), meeting the requirements of high-speed signal acquisition.
Isolation Characteristics: Optoelectronic isolation with an isolation voltage of DC 1500V, featuring strong anti-interference capability.
Input Type: Dry contact (passive) or wet contact (active, such as 24V DC signal).
Channel Current: The maximum input current per channel is typically 5-10mA (please refer to the manual for details).
Protection Rating: IP30 (dust-proof, protection against vertical dripping), suitable for indoor industrial environments.
