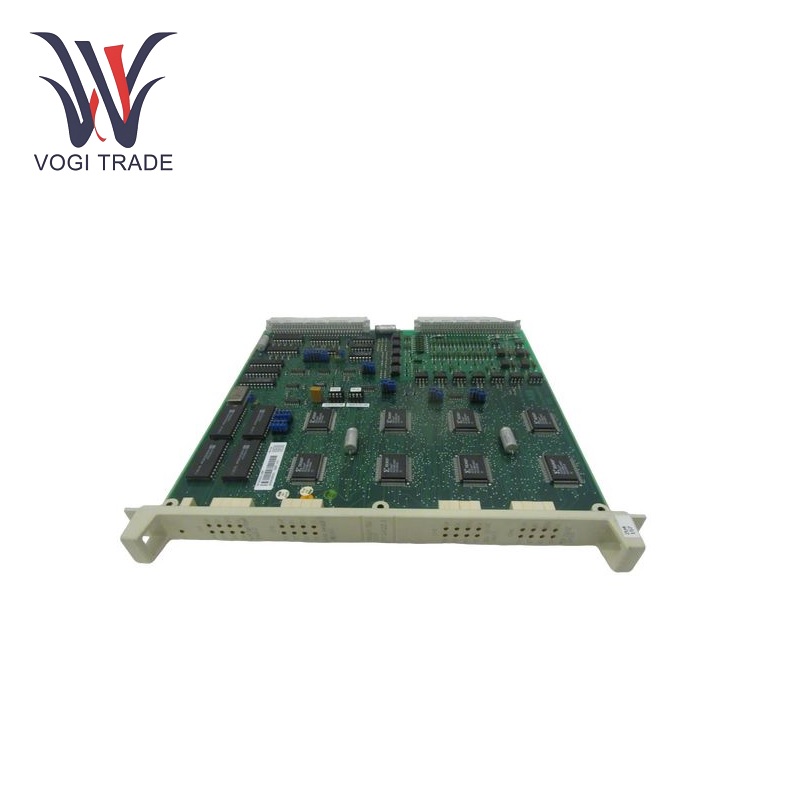

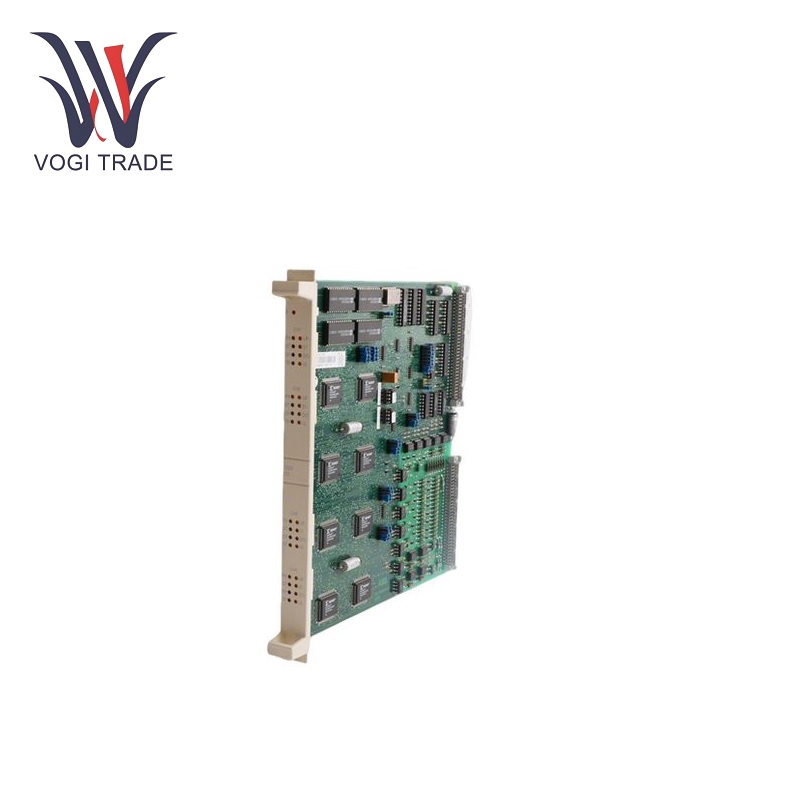

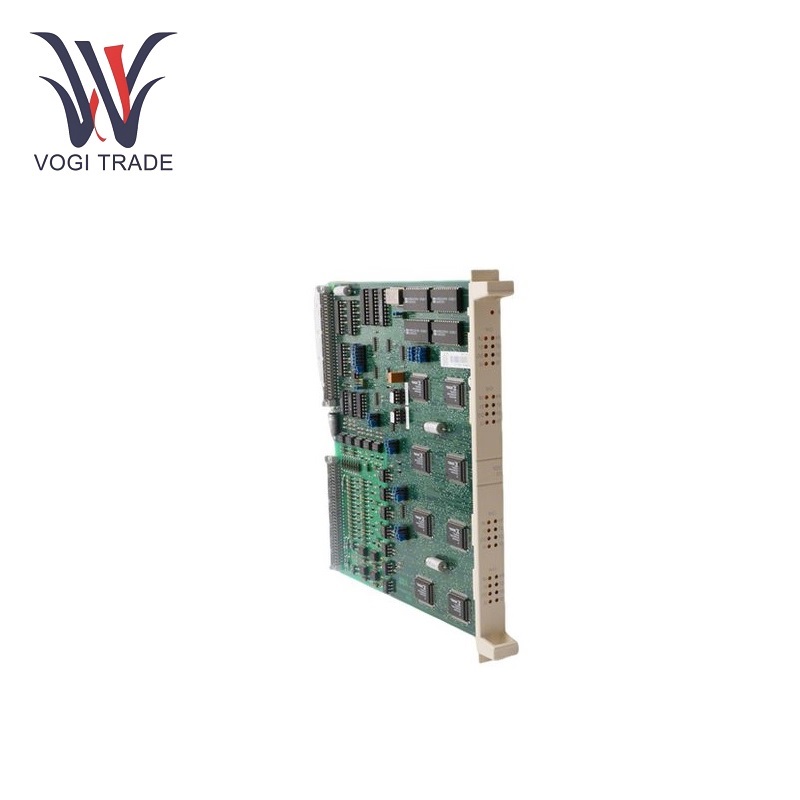

ABB DSDP170

Maximum pulse wave frequency: 2.5 MHz.

Counting capacity: Up to 65,536 pulses.

Accuracy: ±0.01%±1 pulse accuracy.

Operating temperature: The operating temperature range is -25°C to +70°C, and the storage temperature range is -40°C to +85°C.

Product Function

Pulse counting to the last digit: ABB DSDP170 accurately counts and analyzes pulse signals. It covers a wide pulse frequency range with accurate measurement results, suitable for position and length measurement, speed and frequency detection, and counting events.

Multiple input interfaces: ABB DSDP170 supports a variety of input interfaces, including push-pull, open-drain and open-source, making it compatible with different types of sensors. This versatility allows it to be connected to a variety of devices, including rotary encoders, photoelectric encoders and proximity sensors, without the need for additional adapters or converters.

Programmable settings: The programmable function allows you to fine-tune the ABB DSDP170 to meet the unique needs of various applications, providing greater flexibility and adaptability.

Fast data transmission: ABB DSDP170 can quickly transmit count values and other relevant data to the control system or upper-level software for subsequent processing. This provides real-time monitoring and control, helping to improve the efficiency and responsiveness of the automation system.

Application Range

Building automation: ABB DSDP170 is often used in building automation systems for purposes such as controlling construction equipment, building material transportation and drill positioning. In addition, it helps to improve production efficiency, product quality and process reliability by accurately measuring and controlling different parameters125.

Manufacturing: ABB DSDP170 is used for tasks such as accurate measurement of part dimensions, robot position control and motor speed regulation. In this way, manufacturers can improve accuracy and repeatability in the production process, thereby improving product quality and reducing scrap.

Energy management: ABB DSDP170 is used for power generation, distribution and consumption. In this way, more accurate equipment frequency and power readings can be obtained to help ensure the application of energy management and improvement programs.

Automotive: The module is used for vehicle speed detection and train position tracking in the automotive field. This helps to operate transportation systems safely and efficiently.

Pharmaceutical and food processing: Process parameters such as liquid flow, conveying speed and packaging in these industries must be extremely precise. The ABB DSDP170 allows precise measurement and regulation to meet the most stringent quality and safety requirements.
