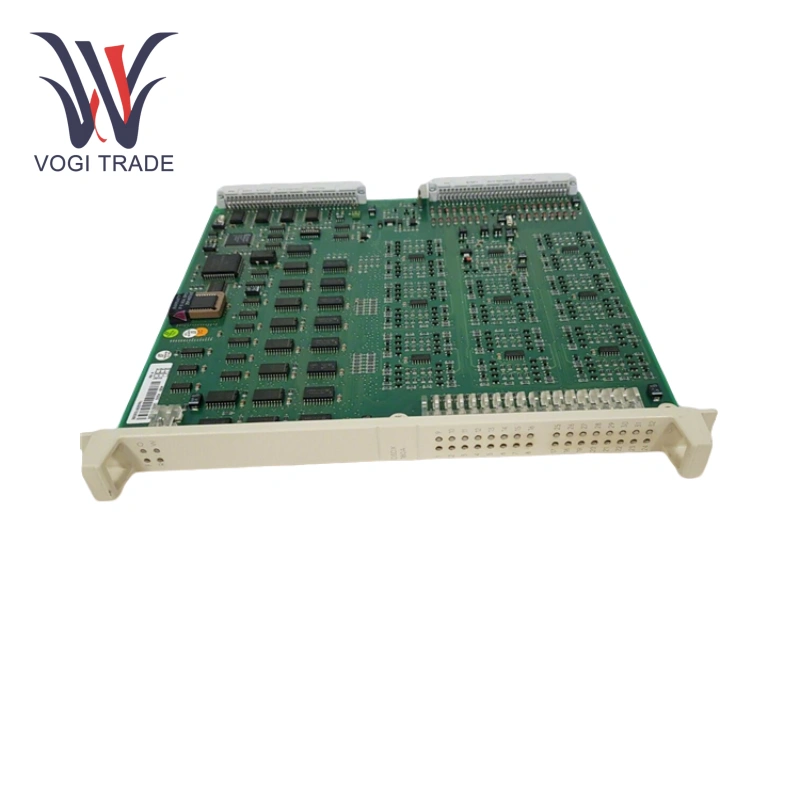

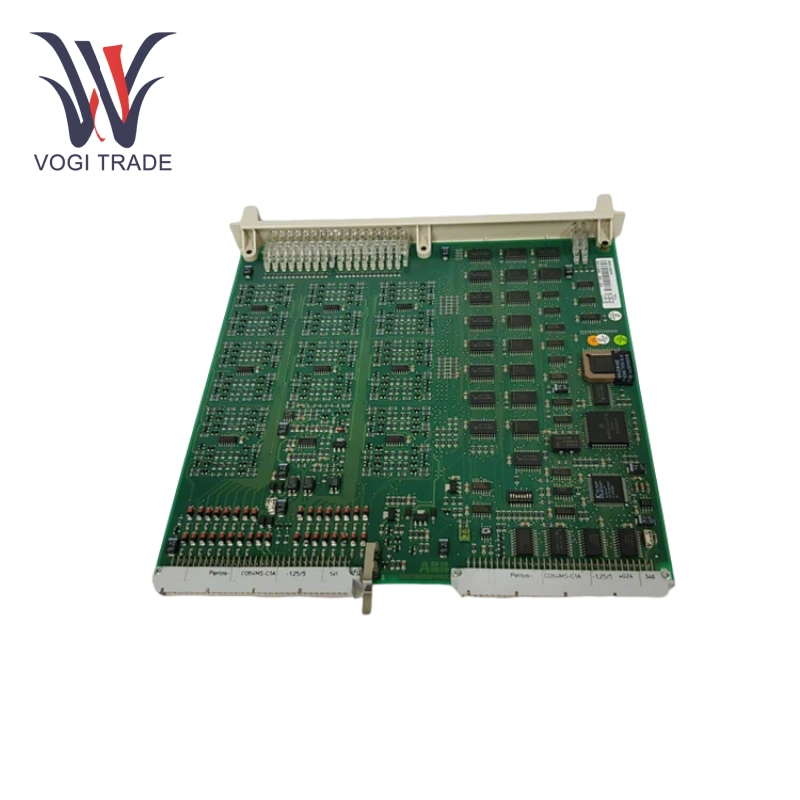

Brand: ABB Description: Digital I/O Modules Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: Shenzhen The ABB DSDX 180 is suitable for industrial automation scenarios such as factory equipment condition monitoring and logic control.
|
Manufacture |
ABB |
|
Model Number |
DSDX 180 |
|
Ordering Number |
3BSE003859R1 |
|
Catalog |
ABB MOD 300 |
|
Country Of Origin |
Sweden |
|
HS CODE |
8537101101 |
|
Dimension |
32*24*1.8CM |
|
Packing Dimension |
34*26*3.8CM |
|
Weight |
0.35KG |
Technical Parameters
Number of input/output channels: 32 channels (support DI/DO combination configuration);
Signal type: 24Vdc (compatible with dry contact, NPN/PNP type sensors);
Isolation type: electrical isolation between channels (2500V RMS);
Operating temperature range: -25°C to +70°C;
Communication interface: Modbus RTU, Profibus DP (need to cooperate with the master module).
Core Functions
High-density signal processing: single module supports 32 channels of digital signal input/output, reducing cabinet space occupation.
Redundancy and high reliability: Redundant version (AK02) supports dual-module hot standby, automatic switching of faulty links to ensure continuous operation of the system.
Industrial-grade anti-interference design: metal shielding shell + channel isolation technology to adapt to electromagnetic interference (EMI) and vibration environment.
Typical Application Scenarios
Factory automation control: ABB DSDX 180 is used in production lines for equipment status monitoring (such as emergency stop buttons, limit switches) and actuator control (such as solenoid valves, relays).
Process monitoring system: integrated in DCS or SCADA system to collect sensor signals (e.g. temperature, pressure switch status) and realize real-time logic control.
Safety control system: ABB DSDX 180 is used as an extension module of the safety PLC to realize quick response to emergency stop (ESD) signal and safety loop closure.
