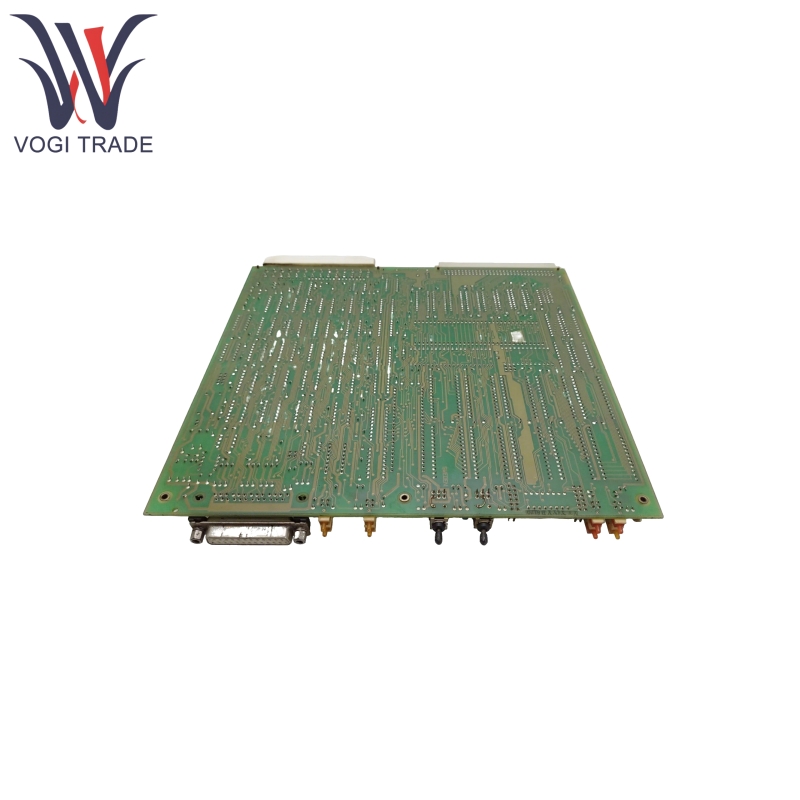

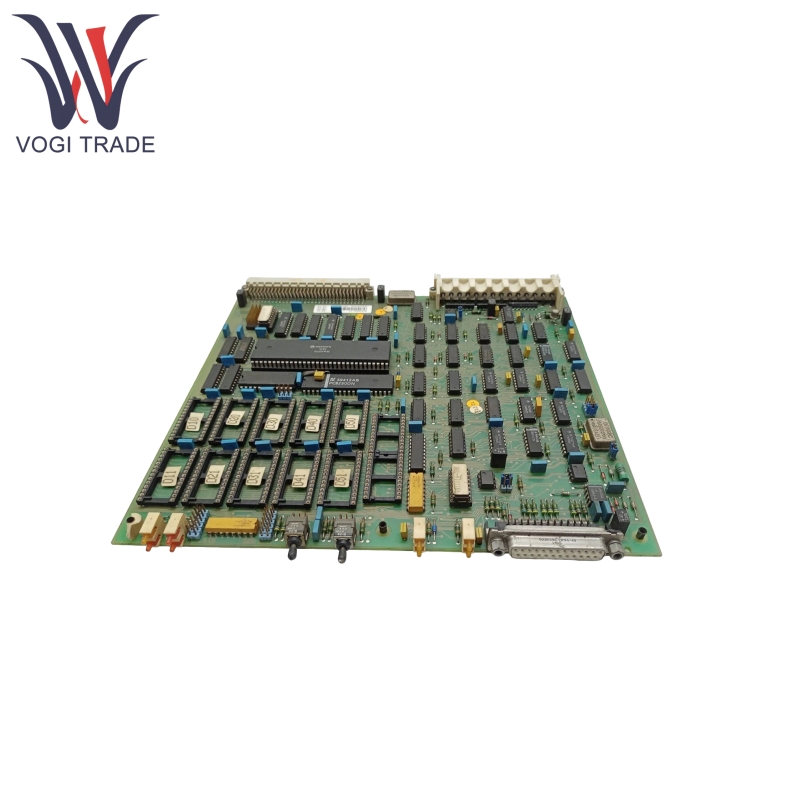

Brand: ABB Description: Processor Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen ABB DSPC155 57310001-CX is mainly used for real-time data processing, complex algorithm execution, and industrial control tasks. It supports a DCS architecture with distributed control and centralized management, and is suitable for industrial scenarios with high reliability requirements.
|
Manufacture |
ABB |
|
Model Number |
DSPC155 |
|
Ordering Number |
57310001-CX |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
20*10*6cm |
|
Weight |
0.6kg |
Product Features
ABB DSPC155 57310001-CX integrates four independent mathematical modules, supporting basic functions such as square root, humidity calculation, and arithmetic operations, and can switch input sources via digital signals to achieve “soft wiring” control of complex logic.
ABB DSPC155 57310001-CX measures six key performance parameters in real time, assisting users in optimizing control parameters and improving system energy efficiency.
ABB DSPC155 57310001-CX provides two 15-breakpoint programmable linearizers for signal calibration of non-standard thermocouples, non-linear level sensors, and other devices, adapting to special industrial scenarios.
ABB DSPC155 57310001-CX supports multiple communication protocols, enabling seamless integration with PLC, DCS systems, and third-party devices.
Product Using Principle
ABB DSPC155 57310001-CX can receive sensor signals through analog/digital input modules and perform analog-to-digital conversion.
It can utilize the built-in DSP chip to execute algorithms such as filtering, FFT transformation, and PID control. The processed data is transmitted via a bus to the controller or human-machine interface (HMI).
It can drive actuators through a digital/analog output module to achieve closed-loop control.
It can communicate with upper-level computers or other PLC/DCS modules via Ethernet or serial interfaces, and supports redundant configurations to enhance system reliability.
Product Parameter
The following detail is for ABB DSPC155 57310001-CX Processor Board.
Power Supply:
Rated voltage: 85–132V AC, frequency 47–63 Hz
Rated current: 0.5A
Environmental Adaptability:
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Humidity: 5%–95% (non-condensing)
Processing Capacity:
Program capacity: 16 MB
Supports real-time multitasking processing with a response time ≤ 1ms
Communication Interfaces:
Standard Ethernet and RS232/RS485 interfaces.
Protocols such as PROFIBUS and EtherCAT can be expanded (optional modules required).
