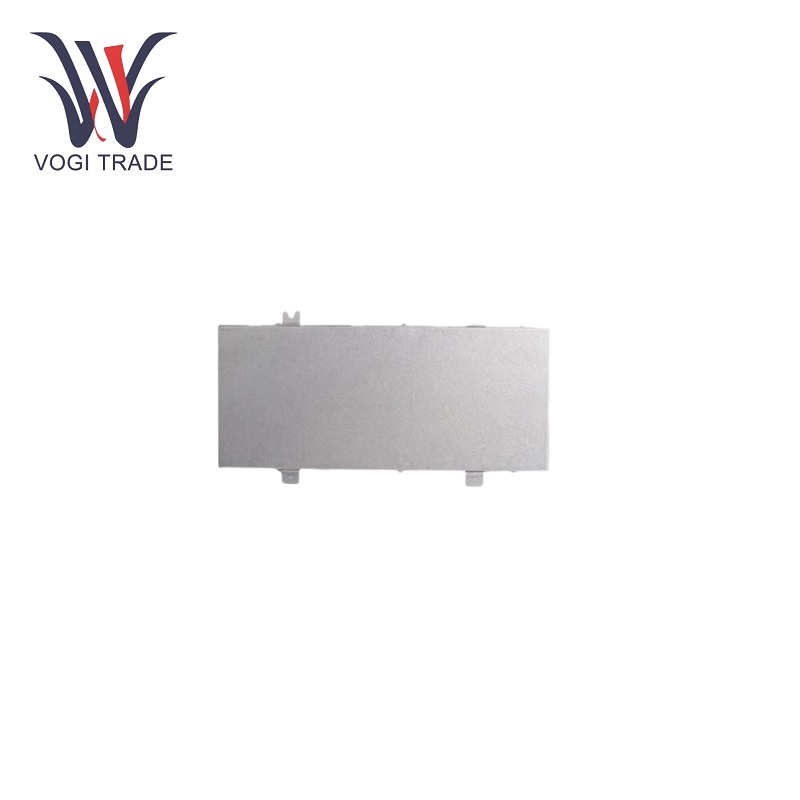

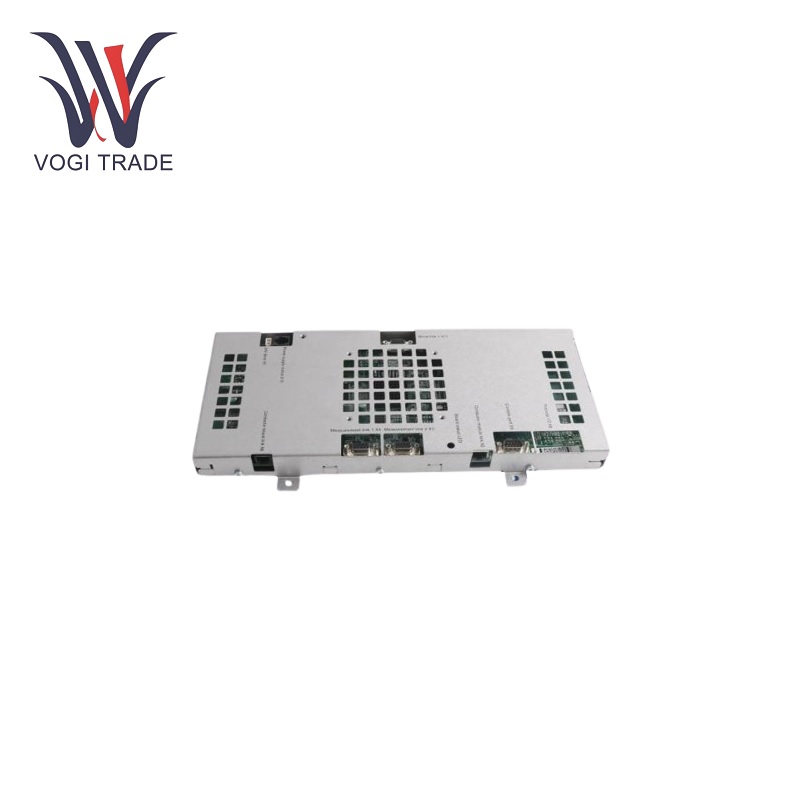

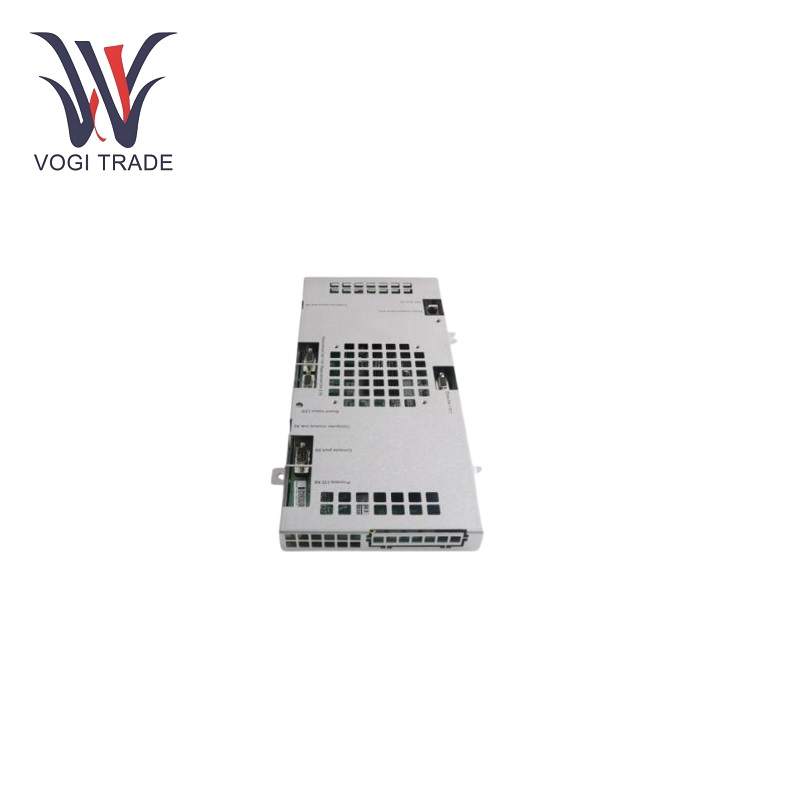

ABB DSQC601

Operating Parameters

Operating Voltage: 24 V DC

Load Current: 0.5 A

Power Consumption: ≤ 1.5 W

Operating Temperature: -25 °C to +60 °C

Product Features

Axis Computer Board: ABB DSQC601 is the axis control computer board for the ABB IRC5 robot. Its job includes processing the signals received from the robot's sensors and controllers, and sending the required signals to the robot's motors to control the movement of its axes. This helps the robot always move in an accurate and coordinated manner.

Communication Interface: RS-232 and Ethernet communication interfaces enable flexible connectivity. This facilitates easy data communication with various system subsystems, such as robot controllers, other peripherals, or centralized control architectures. Using these interfaces, ABB DSQC601 can receive commands, send status information, and pass data to enhance integration and control in automation systems.

Multiple Outputs: With its 16-speed digital outputs, it is capable of handling complex control tasks. These digital outputs can drive multiple solenoids, relays or any other digital input devices, thus enhancing the functionality of the entire system.

Application Scope

Industrial Automation: ABB DSQC601 is widely used in industrial automation applications such as assembly lines, material handling systems and other automated manufacturing processes. It can also provide very easy control of robotic arms or axes, ensuring that parts are placed and moved correctly, taking only effective time.

In automobile manufacturing: used for assembling car bodies, painting and welding. ABB DSQC601 is mainly used to accurately control robotic arms to complete various tasks such as welding, surface painting or assembling parts, thereby improving productivity and quality, so it plays an important and key role in automobile production.

Petrochemical and Chemical Industry: ABB DSQC601 can control robotic systems in operations such as petrochemical and chemical production, processing, storage and transportation, control hazardous materials and perform inspection or maintenance tasks in hazardous environments.
