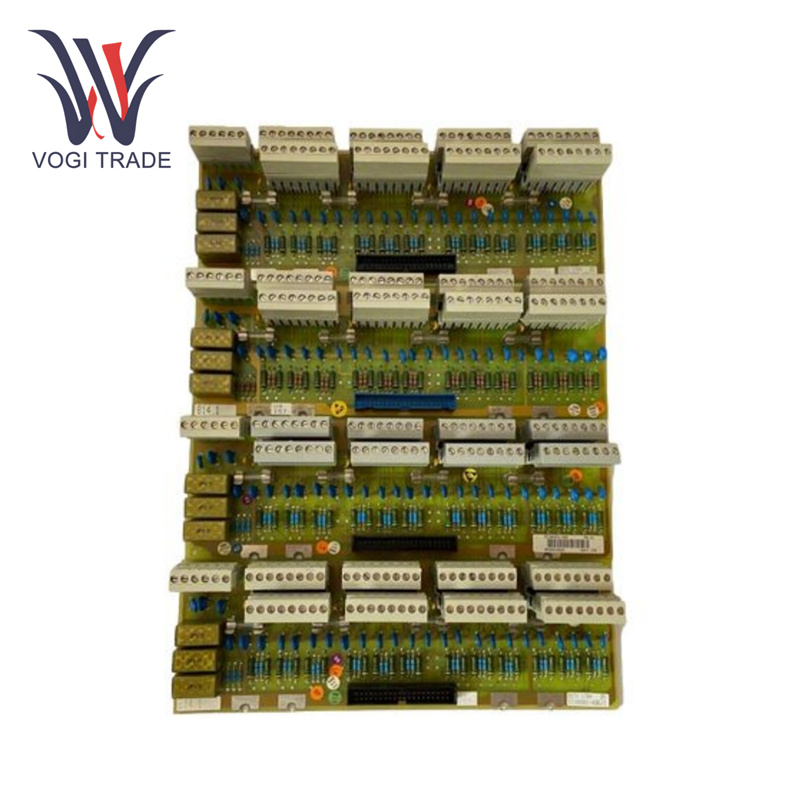

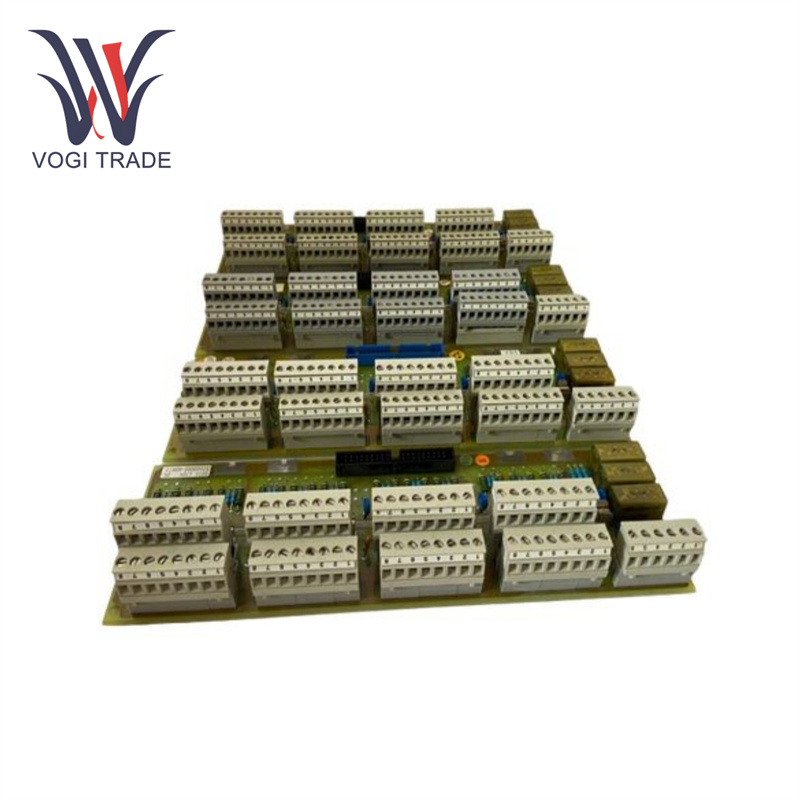

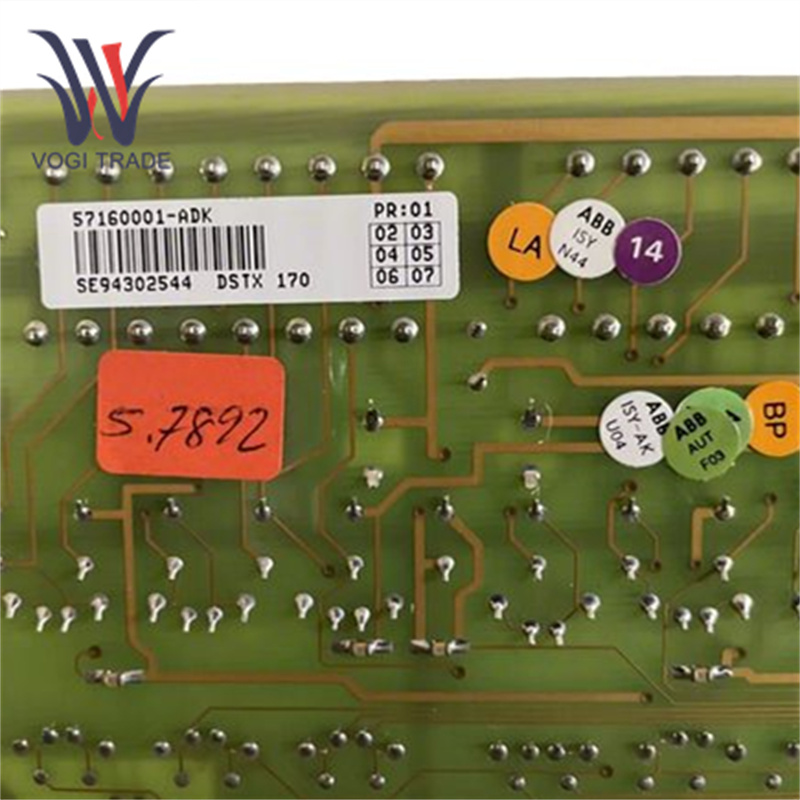

ABB DSTX170

Technical Parameters

Power supply: ABB DSTX170 is usually powered by a 24V DC power supply with a maximum voltage range of 250V. Its standard voltage input provides continuous and stable power to internal components, enabling it to be used in various industrial environments.

Multiple advanced communication interfaces: Equipped with a variety of advanced communication interfaces, supporting industrial Ethernet Ether CAT, it can exchange data quickly and in real time with different devices in the automation network. In addition, other popular protocols including Modbus TCP are also supported to achieve seamless integration of sensors, actuators and controllers.

Input/output channels: The device has a set of well-defined input and output channels. Various digital input channels can receive binary signals from external sensors to indicate events such as the presence or absence of an object, the on/off state of a switch, etc. It also includes digital output channels for controlling external devices such as relays, solenoid valves or indicator lights, analog input channels for processing continuous variable signals from measuring instruments, and analog output channels for sending variable control signals to actuators.

Features

High-speed processing: ABB DSTX170 can quickly perform high-speed data processing and output response. Complex control algorithms can be implemented within a fast time frame to support the timeliness of control actions. In fast production lines, the device can also be prompted to respond in a timely manner based on the real-time situation of the sensor.

Advanced motion control: For motion-related applications, it has advanced motion control capabilities. It can accurately manage the speed, acceleration and position of motors or mechanical moving elements. In order to achieve accurate and smooth motion trajectories through precise algorithms and feedback mechanisms, the ABB DSTX170 can be used in applications where feeders are an integral part of the process, such as robot arm movement or precise positioning of workpieces.

Powerful diagnostics and monitoring: The device combines self-diagnostics with the ability to continuously monitor the health of its own channels, internal components and connected devices. Once any abnormal situation occurs, such as signal interference, component overheating or communication errors, it can immediately detect and report problems. By transmitting signals, technicians can remotely check its status and diagnose problems.

Application range

Robotics: The ABB DSTX170 is used in robotics to control the movement of robotic arms in a variety of applications. From industrial manufacturing to garage robots, processing tasks and service robots that perform more delicate operations, its high-speed processing and intelligent control architecture ensure that the robot arm completes its tasks as accurately and efficiently as possible.

Automated production lines: Coordinate the operation of equipment in automated production lines for specific products, such as electronic products or consumer goods. The ABB DSTX170 is divided into conveyor belt operation functions, until the start of punching or cutting machines, and the relationship between different workstations.

Packaging and material handling: The ABB DSTX170 is used in packaging and material handling systems to control product positioning and movement. It can control the sorting machines and robotic grippers that pick and place items, as well as the speed of conveyor belts to ensure accurate packaging and efficient material flow.
