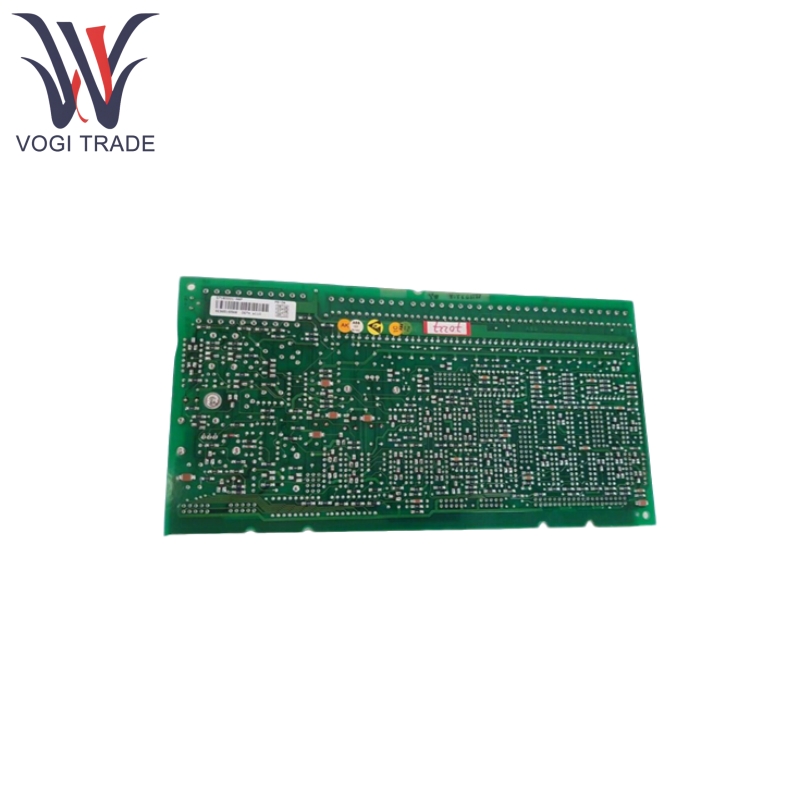

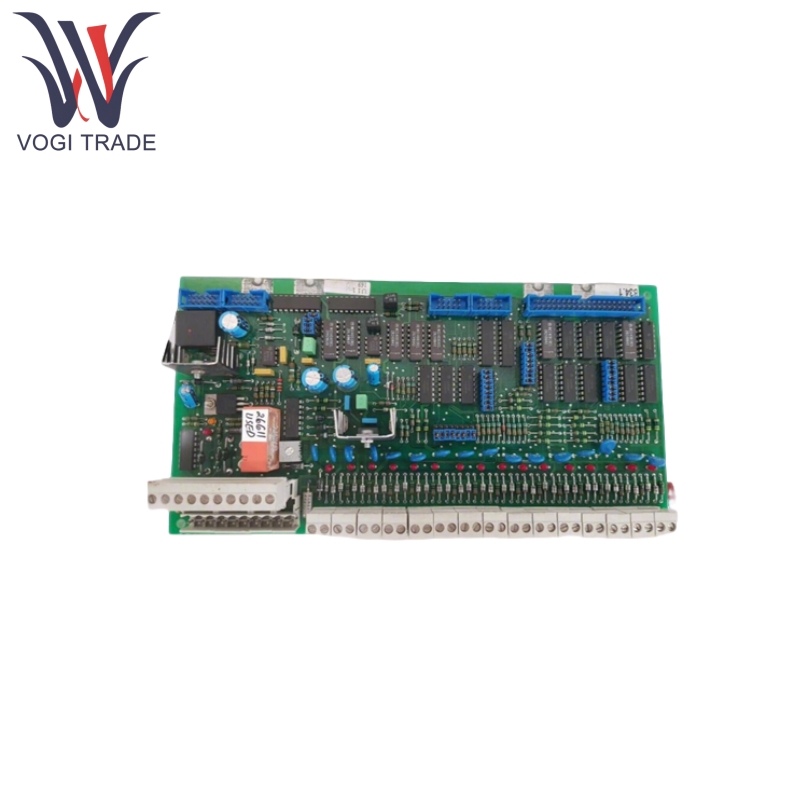

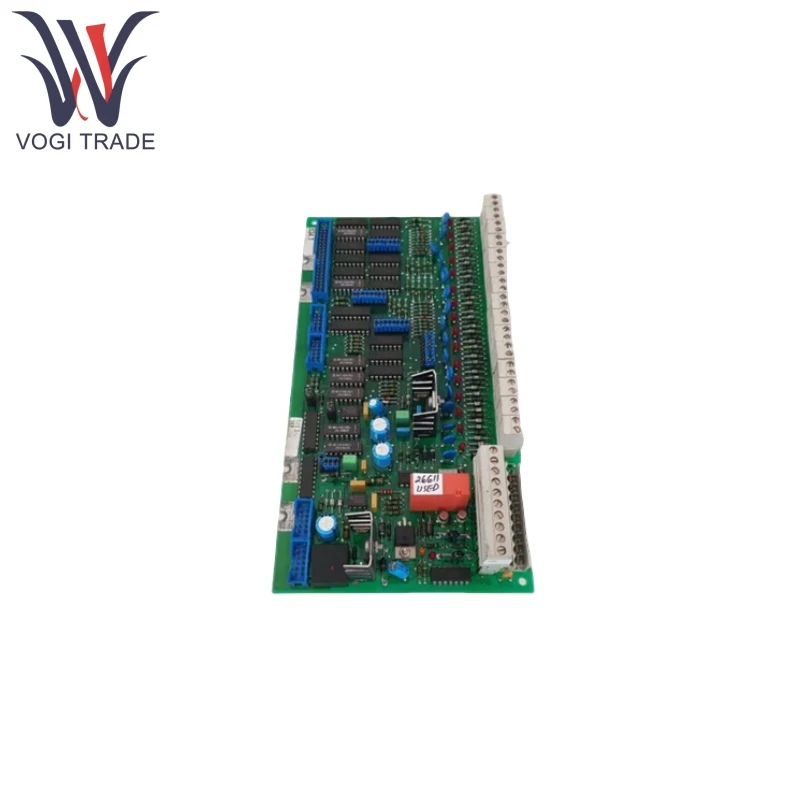

Brand: ABB Description: Digital Input Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB DSTXW110 57160001-AAP core function is to collect digital signals from external devices and convert them into standard digital signals recognizable by PLCs or controllers, so as to realize precise data interaction and control of industrial control systems.
|
Manufacture |
ABB |
|
Model Number |
DSTXW110 |
|
Ordering Number |
57160001-AAP |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8538900000 |
|
Dimension |
12*6*4cm |
|
Weight |
0.2kg |
Product Features
ABB DSTXW110 57160001-AAP utilizes redundant circuits and optoelectronic isolation technology with isolation voltages up to 1900 Vrms to ensure signal transmission stability and safety.
ABB DSTXW110 57160001-AAP is made of industrial-grade materials and supports wide-temperature operation (-20°C to +60°C) to meet the needs of harsh environments such as petrochemical and electric power.
ABB DSTXW110 57160001-AAP supports a wide range of input types, including dry contact, optically coupled signals, and is compatible with DC 24V or AC inputs (specific models to be confirmed).
ABB DSTXW110 57160001-AAP provides 16 independent digital input channels that can be configured in normally open/closed mode to adapt to the signal characteristics of different sensors or switches.
ABB DSTXW110 57160001-AAP has microsecond response times for high-speed production lines or real-time control scenarios.
ABB DSTXW110 57160001-AAP is IP67 rated for protection against dust and short-term immersion, making it suitable for humid or dusty environments. Built-in surge protection circuitry reduces the effect of electromagnetic interference (EMI) on signals.
Product Using Principle
The signals from its external devices are fed into the module through an opto-coupler to achieve electrical isolation and prevent external interference from entering the control system.
The input signals are converted to TTL/CMOS levels recognizable by PLC after level conversion and filtering.
ABB DSTXW110 57160001-AAP is equipped with LED indicators for each channel to show the signal status in real time. It supports the fault diagnosis function, and can detect abnormalities such as short circuit and disconnection of the channel through the module status register.
ABB DSTXW110 57160001-AAP can communicate with PLC main controller through the backplane bus to transmit digital signals.
Product Parameter
The following detail is for ABB DSTXW110 57160001-AAP Digital Input Board.
|
Parameter Item |
Specification |
|
Number of input channels |
16 digital inputs (pure input module, no output) |
|
Input signal type |
DC 24V (typical value), AC input supported (model confirmation required) |
|
Input current |
≤2 mA (for DC input) |
|
Response time |
Microsecond level (depending on specific configuration) |
|
Isolation voltage |
1900 Vrms (between channels and to ground) |
|
Operating temperature range |
-20°C to +60°C |
|
Storage temperature range |
-55°C to +90°C |
|
Protection class |
IP67 (dust-tight and water-resistant) |
