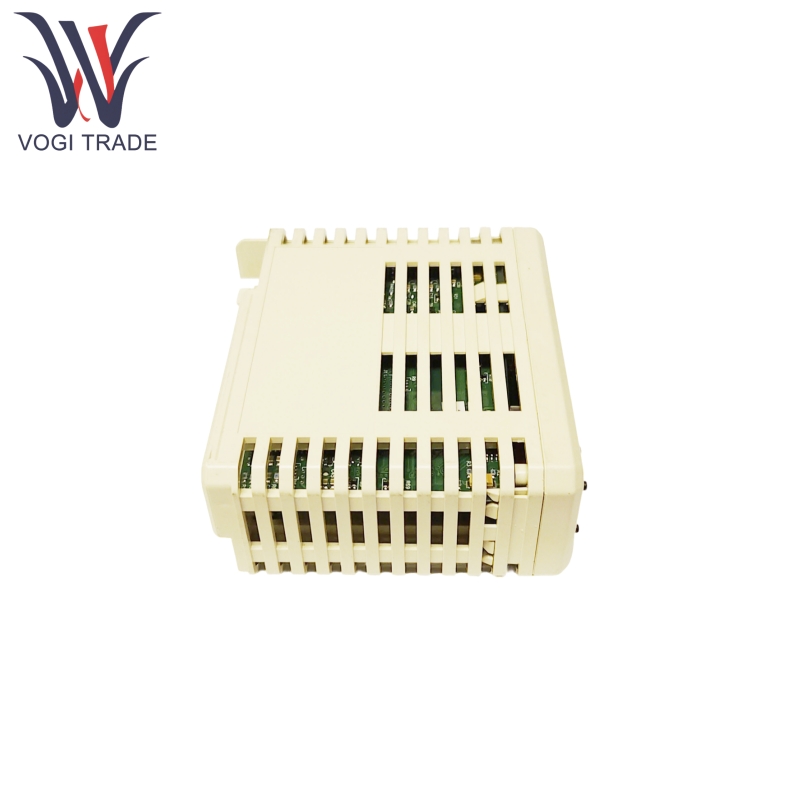

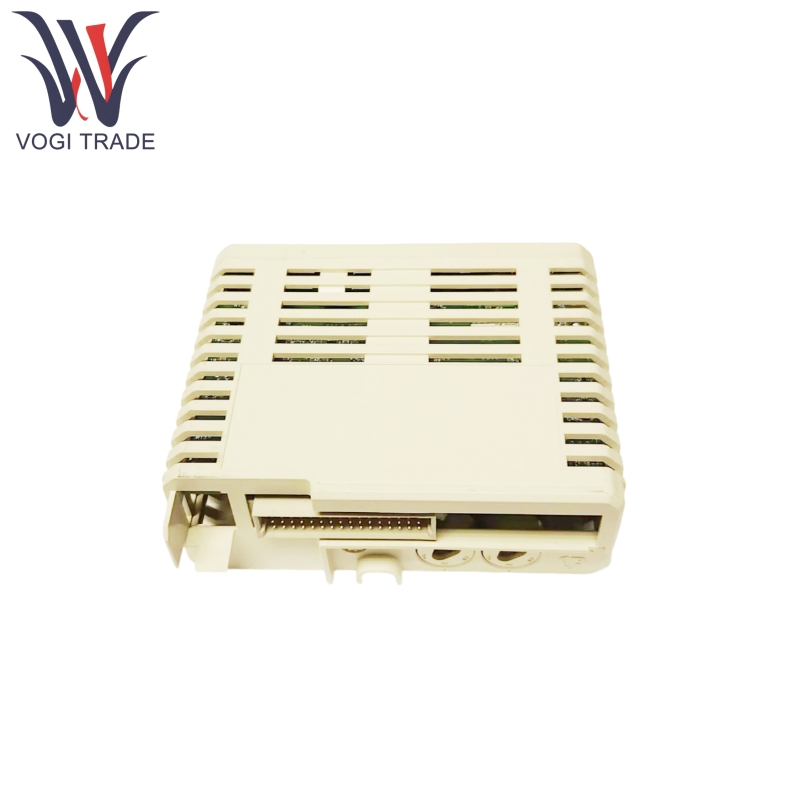

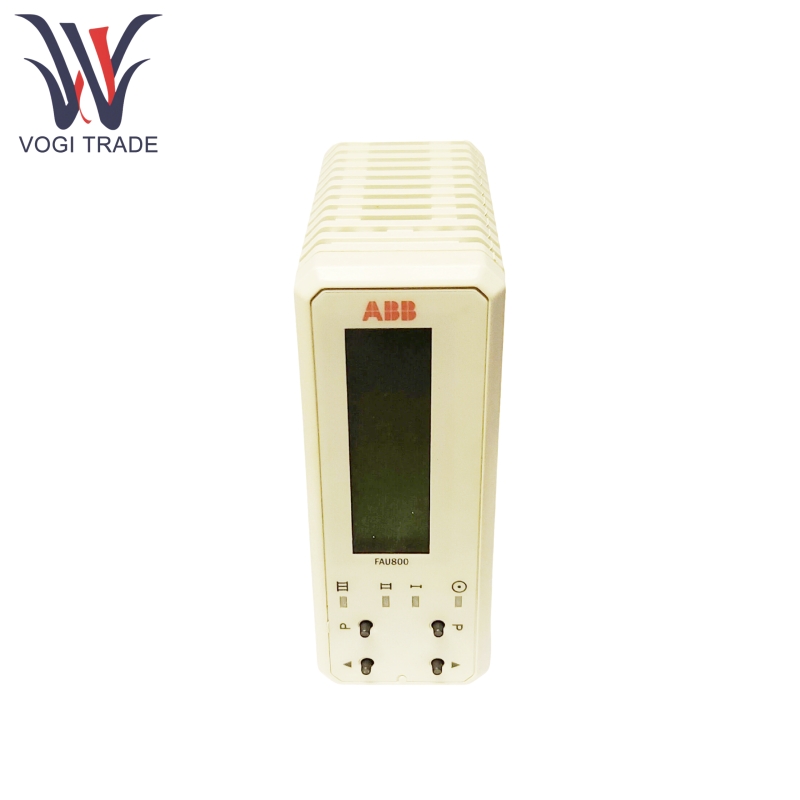

Brand: ABB Description: Flame Analysis Interface Unit Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB FAU800 C10-11010 is used for monitoring and analyzing the real-time status of flames to ensure combustion process stability and safety. To achieve functions such as collection of flame signal, quality judgment, fault diagnosis and safety interlock in power plants and industrial boilers.
|
Manufacture |
ABB |
|
Model Number |
FAU800 |
|
Ordering Number |
C10-11010 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
12*10*6cm |
|
Weight |
0.4kg |
Product Features
ABB FAU800 C10-11010 supports flame detection for various fuel types, including natural gas, coke oven gas, and blast furnace gas.
ABB FAU800 C10-11010 can calculate flame signal quality in real time, predict the risk of flame extinction, and trigger early warnings.
ABB FAU800 C10-11010 has a built-in self-check system that continuously diagnoses the status of the detector and electronic circuits to ensure equipment reliability.
When an unsafe condition is detected, ABB FAU800 C10-11010 can force the flame detector into a “no-flame” state and trigger an alarm to prevent potential accidents.
ABB FAU800 C10-11010 supports redundant Profibus DP-V1 protocol, enabling seamless integration with DCS systems.
ABB FAU800 C10-11010 provides an RS-485 interface compatible with the Modbus RTU protocol, supporting communication with third-party devices.
Each unit can simultaneously process signals from two flame detectors and supports mixed configurations (e.g., ultraviolet + infrared dual sensors).
ABB FAU800 C10-11010 supports remote parameter adjustment and firmware upgrades, simplifying maintenance processes.
Product Using Principle
ABB FAU800 C10-11010 receives analog signals from flame detectors via a dedicated interface and converts them into digital signals.
It evaluates flame stability based on preset algorithms, such as analyzing signal fluctuation frequency and amplitude to determine combustion status.
It combines historical data to establish a baseline model and identify abnormal combustion patterns.
Based on the analysis results, it controls burner start/stop or adjusts fuel supply via relay output.
It supports remote status monitoring and coordinated control by sending real-time status data to DCS system through Profibus interface.
Product Parameter
The following detail is for ABB FAU800 C10-11010.
Input Voltage: 24V DC (range 18-36V DC)
Power Consumption: Maximum 5W (at 24V DC)
Digital Inputs: 8 channels (expandable to 16 channels), supporting 24V DC signals (high level ≥15V, low level ≤5V)
Relay Outputs: 2 channels, contact rating 250V AC/30V DC, maximum 2A
Profibus DP-V1: Maximum baud rate 12Mbps, supporting hot redundant configuration
Modbus RTU: Baud rate 9600-115200bps, configurable parity check
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity: 5%–95% (non-condensing)
