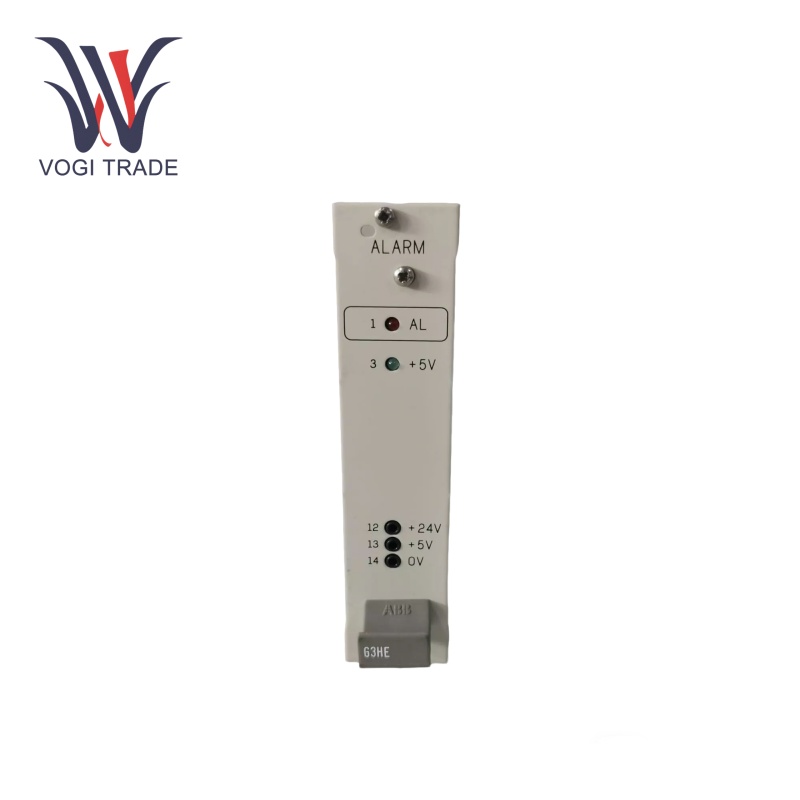

ABB G3HE

Operation Parameters

Voltage Supply: 48V to 125V DC

Operating Temperature:  -10°C to +55°C,

Humidity Tolerance: 95% non condensing

Current: 30A

Frequency: 50/60Hz

Power Consumption: Designed for low power consumption to ensure efficiency and minimal impact on the overall system load.

Product Features

Motor Control: Motor control is one of the primary functions. ABB G3HE HENF327998R0003 helps to control the power supply to motors to ensure smooth start up, operations, and speed control. For example, with variable - speed drive application, it is used to adapt the frequency and voltage applied to the motor, so that the motor can reach the desired rotational speed.

Parameter Monitoring: The ABB G3HE HENF327998R0003 features monitoring for electrical parameters and power factor. The monitored params can help diagnostic, performance adjustment and operate security of the connected equipment. For example, it is capable of detecting abnormal high current which may indicate system overload, or a short circuit by constantly monitoring the current.

Overload Protection: ABB G3HE HENF327998R0003 has overload protection features. When the current flowing through the motor is higher than the current of the order of the motor at a predetermined time, the device will perform the action. This can be accomplished by limiting the power supplied to the motor or shutting it down to avoid overheating and ultimately damaging the motor windings.

Short Circuit protection: Can quickly detect short circuit in electrical circuit. The current protective relay will immediately cut off the power supply to protect the motor and other devices in the circuit from damage, no matter what the current is.

Phase Failure Protection: Monitors phase power supply of motor continuously. In case one of the phases is lost one of the features ABB G3HE HENF327998R0003 has is that, if an current imbalance is detected the controller will determine which phases are working correctly and if they are misconfigured it will not allow it to run the motor as the controller will turn off the motor, preserving this way from damage and inefficiencies.

Installation

Compatibility: The module must be compatible with the existing NSD70D teleprotection system configuration.

Inspection: Check the module for any physical damage or defects before the installation.

Mounting the holder: After mounting he holder, use suitable secure methods so that they will not shake or slide when working.

Wiring: Connect the module to the system with the connectors as per the wiring diagram in the system manual.

Activity: Follow correct direction to avoid damage to your module or system.

Power Safety: Before starting the installation process, ensure that the power supply to the device is switched off to prevent electrical hazards or accidents.

Personal protective equipment: use appropriate personal protective equipment, e.g. insulated gloves and safety glasses.

Testing: Once installed, turn on the system and carry out functional testing to ensure that the module functions correctly.

Be aware: Check for abnormalities in the module operation during the initial startup.

Application range

Power Transmission Systems: Monitors protection signals to ensure the integrity and reliability of our high voltage transmission lines.

Substation Automation:The ABB G3HE HENF327998R0003 Integrated with substation control systems for real time alarm monitoring and reporting.

Grid Stability: Helps maintain overall grid stability by enabling quick response to fault conditions.

Industrial Power Networks: Used in large industrial complexes employing teleprotection systems to protect internal power distribution.

Troubleshooting

Alarm Signal not Received: Ensure the module is properly installed and all wiring is connected securely. Make sure the right operating voltage is reaching the module.

False alarms: Check for electromagnetic induction that may disrupt module performance.

Configuration: Check alarm threshold in system settings.

Intermittent Operation: Check the installation environment for temperature or humidity outside specified limits.

Connection Integrity: Check connectors and wiring for wear or corrosion.

Indicator Functionality: Check that status indicators are working.

Module Health:  if indicators are showing not working, test the module in a system that is known to work to decide if replacement is required.
