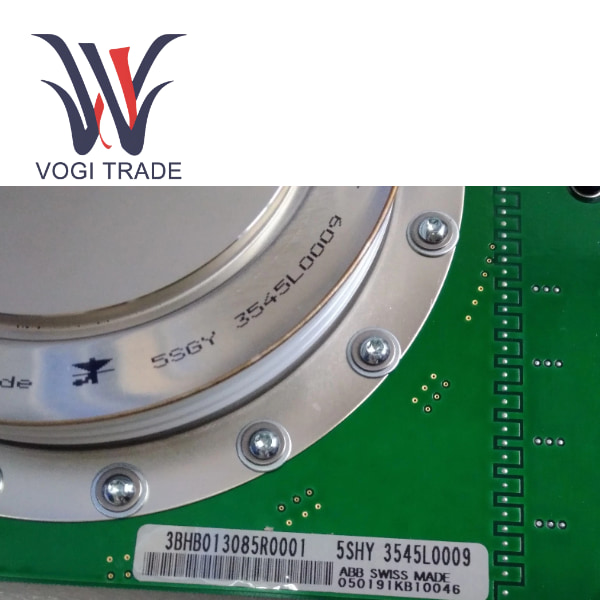

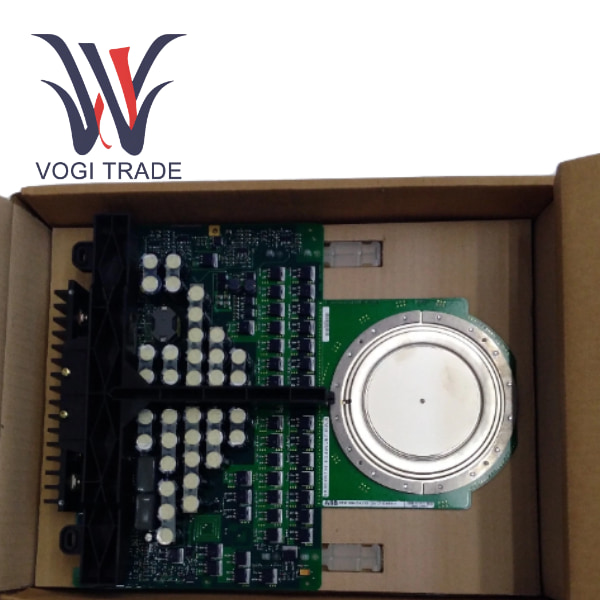

Brand: ABB Description: IGCT Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: Xiamen The 3BHB013085R0001 is an industrial-grade metallized polypropylene film capacitor with a rated voltage of 750VDC and a nominal capacitance of 100µF.
|
Manufacture |
ABB |
|
Model Number |
GVC750BE101 |
|
Ordering Number |
3BHB013085R0001 |
|
Catalog |
VFD Spares |
|
Country Of Origin |
Sweden |
| HS CODE |
9032899099 |
|
Dimension |
20cm*25cm*8cm |
|
Packing Dimension |
27cm*30cm*12cm |
|
Weight |
2kg |
Product Overview
The 3BHB013085R0001 is an industrial-grade metallized polypropylene film capacitor with a rated voltage of 750VDC and a nominal capacitance of 100µF. It is commonly used in DC-link circuits of photovoltaic inverters, industrial frequency converters, and high-power switching power supplies.
Typical Applications
The GVC750BE101 is suitable for the following (but not limited to) applications with stringent performance requirements:
New Energy Power Generation: DC support and buffering in photovoltaic inverters and wind turbine converters.
Industrial Drives: DC bus filtering in frequency converters and servo drives.
High-End Power Supplies: High-power communication power supplies, server power supplies, and UPS uninterruptible power supplies.
Other Power Electronics: Induction heating, welding equipment, and medical equipment power supplies.
Technical Specifications
|
Parameter |
Description |
|
Ordering Number |
3BHB013085R0001 |
|
Rated voltage (VDC) |
750 |
|
Medium |
Metallized Polypropylene Film (MKP) |
|
Life expectancy |
Typically > 100,000 hours at rated voltage and 70°C |
|
Operating temperature range |
-40°C ~ +85°C / +105°C (optional) |
The GVC750BE101 is an ideal choice for the following automation applications:
Precision Temperature Control Systems: It forms a closed-loop with a PLC and temperature sensors to precisely control industrial furnaces, ovens, and heating coils in plastic machinery, achieving temperature control accuracy of ±1°C or higher.
Motor Speed Control and Soft Start/Stop: It can be used as the pre-stage of variable-frequency speed control systems for fans and pumps, or directly control the soft start/stop of AC motors, reducing impact on the power grid and mechanical structures.
Intelligent Lighting Control: It implements automated dimming and energy-saving control based on PLC programs in large-scale lighting systems in factories and venues.
Automated Production Line Equipment: It is used for power regulation and on/off control of equipment such as welding machines, feeders, and conveyors, and is a key execution unit in automated production lines.
