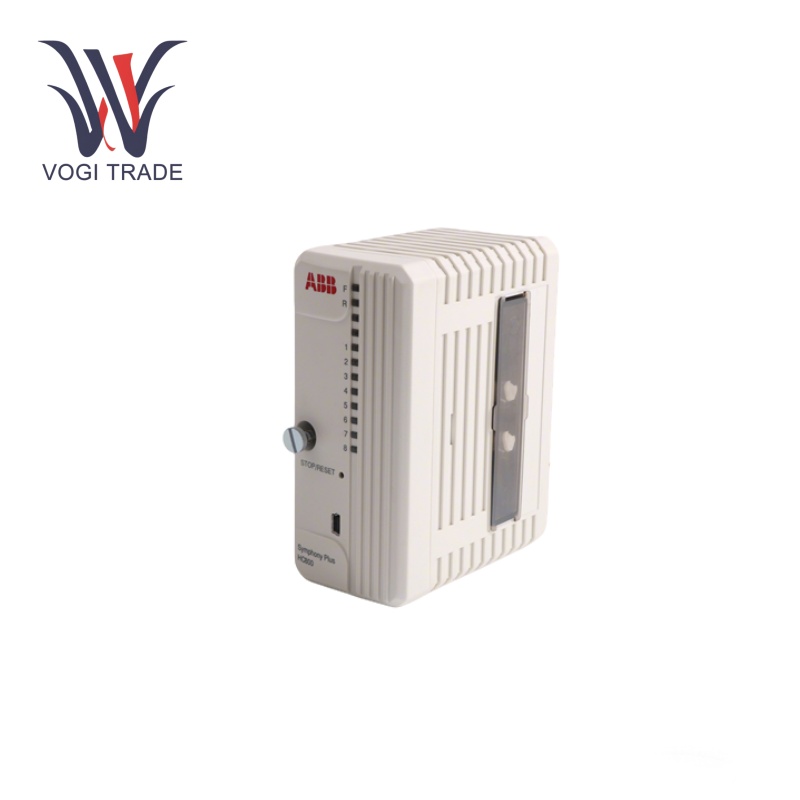

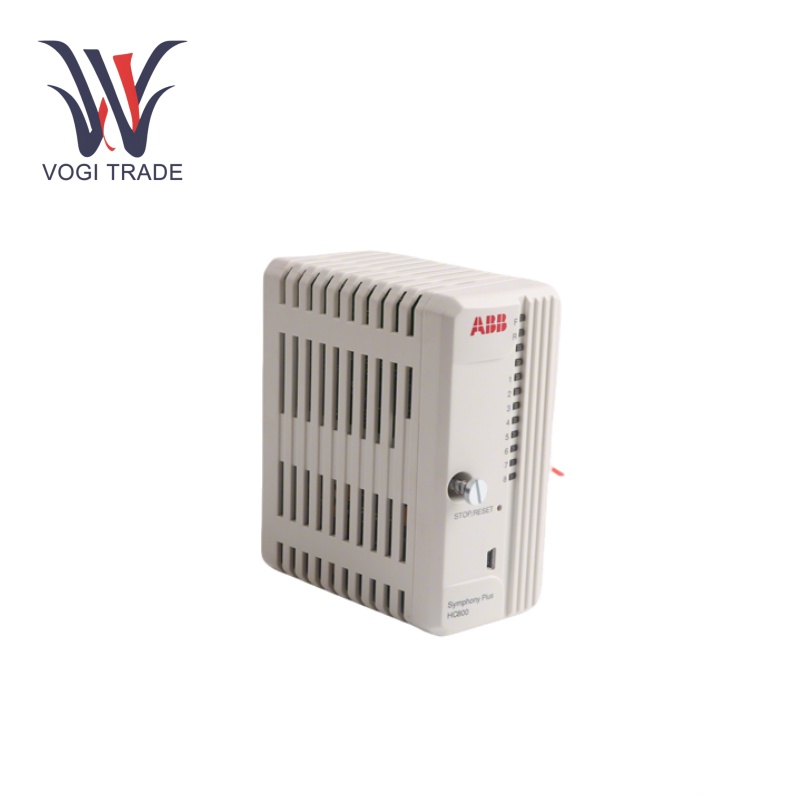

Brand: ABB Description: Control Processor Module of HPC800 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB HC800 is a control processor module used in the HPC800 controller in the ABB Symphony Plus control system. It is based on a 256 MHz, 32-bit Freescale Coldfire processor and supports up to 30,000 function blocks for complex control strategies.
Manufacture |
ABB |
Model Number |
HC800 |
Ordering Number |
HC800 |
Catalog |
Symphony Plus |
Country Of Origin |
Sweden |
HS CODE |
85371091 |
Dimension |
24.38cm*21.1cm*7.87cm |
Packing Dimension |
27cm*23cm*10cm |
Weight |
0.88kg |
Operation Parameters
Input Voltage: 24V DC.
Power: Low power(energy saving).
Operational temperature: -25°C to +70°C.
Humidity: 5 % to 95 %, non condensing.
The Freescale Coldfire (256 Mhz, 32-bit) processor of the HC800 guarantees data processing and control operations.
Function blocks: Up to 30K function blocks for advanced control strategies and system integration.
CommunicationFeatures:Modbus TCP communication, allowing integration with a variety of field devices and systems.
Product Features
Process Control: ABB HC800 is a powerful process controller capable of controlling industrial processes with precision. It serves to monitor and adjust parameters such as temperature, pressure, flow rate, and chemical composition. For example, within a chemical manufacturing plant, it can keep optimal reaction conditions by controlling the flow of reactants and monitoring the temperature in a few ranges, maximizing product quality and production efficiency.
HMI Compatibility: ABB HC800 has great compatibility with different types of HMIs. This means operators can easily interact with the control system via intuitive graphical interfaces. This allows operators to monitor real-time process data, define control parameters, and receive alarms and notifications. These are easily connected to touch-screen HMIs, ensuring smooth operation in industrial environments.
Diagnostic and Monitoring Capabilities: It includes advanced diagnostic capabilities that continuously monitor the health of the system and its components. It can detect faults in sensors, actuators and communication links, and give detailed error messages. Because maintenance can be performed before a problem occurs, this proactive approach reduces downtime, allowing for early intervention and troubleshooting. In a power generation facility, it can rapidly detect faults in turbines or generators and warn operators before a serious failure happens.
Data Exchange: Allows for smooth transfer of data between the controller and devices linked to it, making sure operations run in sync.
Control and Management: Allowing for industrial management through the control of devices connected in the system.
Systems Integration: Assists with integration to multiple plant network communications.
Installation
Preparation: Familiarize yourself with ending the power supply to all the system components for electrical safety.

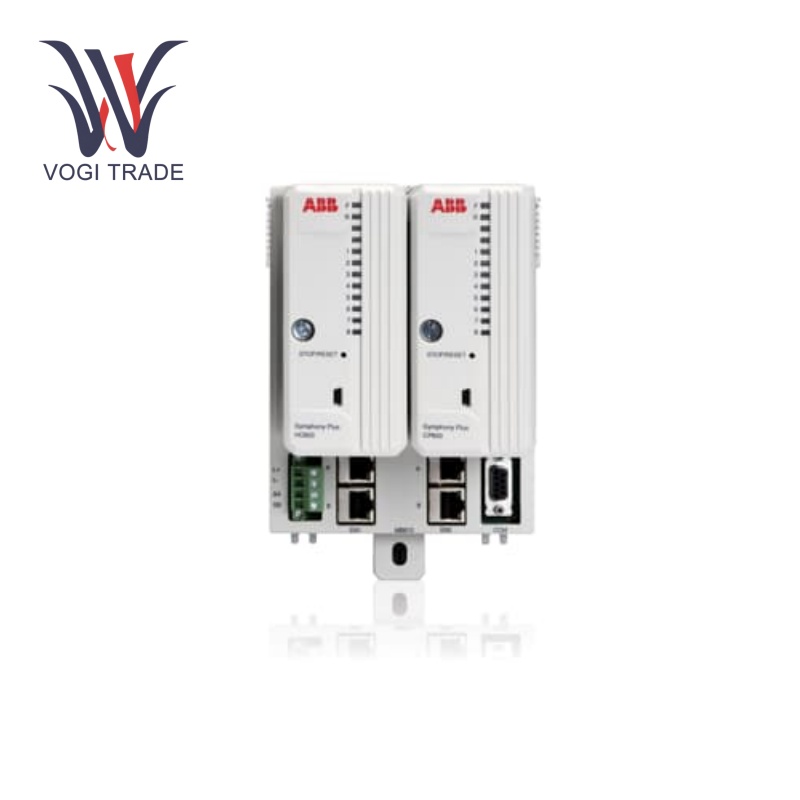

Connections: Slide the ABB HC800 into the empty slot of the HPC800 controller and secure it.
Connectors: Connect appropriate communication interfaces to the module's ports.
Power Up: Once all connections are made, power the system and check the HC800 module is initialized.
Application range
Process Industries: Oil and gas, petrochemicals, and power generation, industries where control and communication of data is crucial.
Manufacturing: Automotive, electronics and consumer goods industries utilize the ABB HC800 for reliable communications.
Utilities and Transportation: The ABB HC800 for control and monitoring solutions in utilities and transportation systems.
Troubleshooting
Not Power On: Check the power supply, if there is no indication of power on the ABB HC800, the power supply has most likely failed. Check power and wiringMake sure 24V DC power cable is tight and the 24V power supply is working properly. Inspect the power circuit for blown fuses or tripped circuit breakers.
No Data Exchange: If there is zero data exchange between the ABB HC800 and associated devices, the communication cable connections should be checked and problems should be eliminated. Data can’t be transferred if the cables are loose or damaged. Check the communication settings, including protocols, IP addresses, and baud rates too. All devices must be set up to talk to one another using the same settings.
Intermittent Communication: If communication is intermittent, electromagnetic interference is a plausible contributing factor. Ensure that shields are properly grounded and avoid routing communication cables near high-power cable or other interference source. Also ensure your connectors aren't worn or damaged and replace them as necessary.
