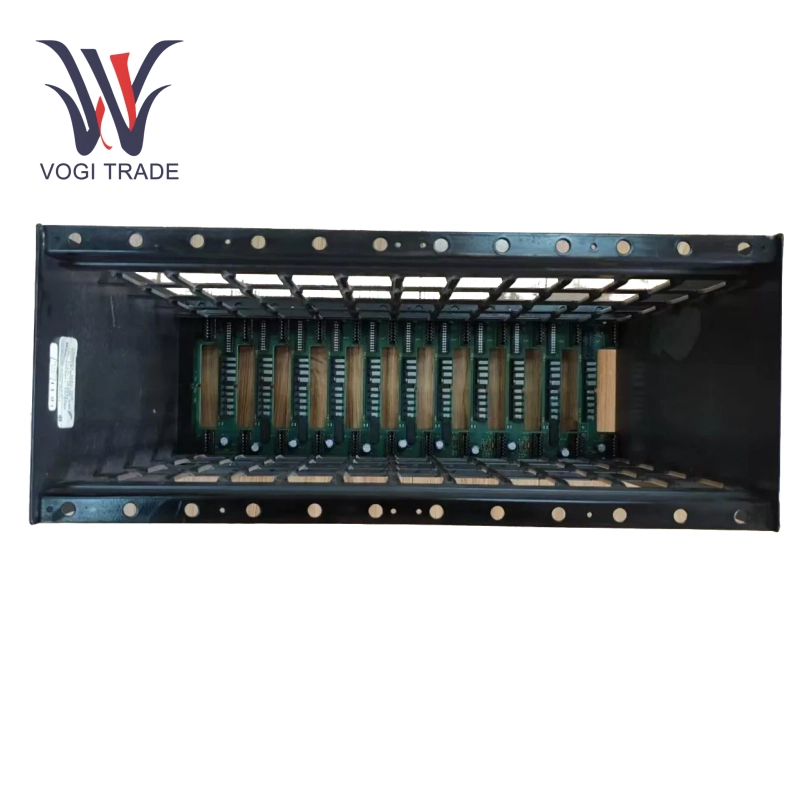

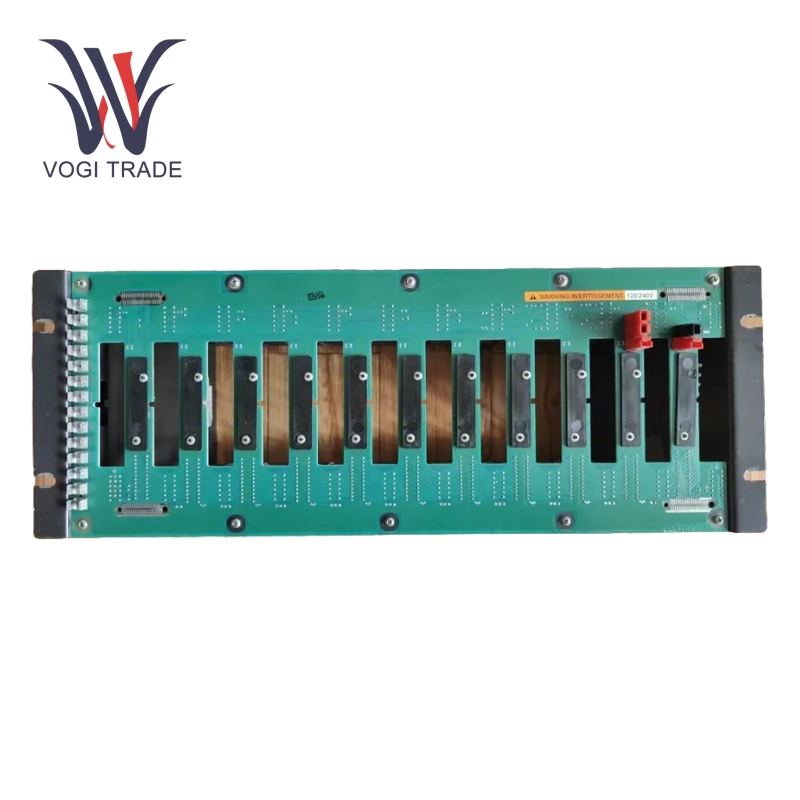

Brand: ABB Description: Rear Module Mounting Unit Slot Rack Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen ABB IEMMU01 is a module installation unit designed for Bailey Infi 90 distributed control system (DCS), mainly used in industrial automation control field. As a rack unit, it is responsible for providing power distribution, communication support and physical installation space for various modules in the system (such as I/O modules, communication modules, etc.).
|
Manufacture |
ABB |
|
Model Number |
IEMMU01 |
|
Catalog |
Bailey Infi 90 |
|
Country Of Origin |
Sweden |
|
HS CODE |
9022909090 |
|
Dimension |
45*30*16cm |
|
Packing Dimension |
47*32*20cm |
|
Weight |
1.5kg |
Technical parameters
AC input: 120/240 VAC, 50/60 Hz
DC output: +5 VDC, ±15 VDC, 24 VDC, ABB IEMMU01 supports dual power supply redundant input, typical power consumption is less than 4W
Protection level: IP30
Installation method: rear installation, compatible with 35 mm DIN rail
Operating temperature: -10°C ~ 70°C
Storage temperature: -40°C ~ 80°C
Humidity: ≤90% (non-condensing)
Product features
Modular design: 12-slot structure allows flexible configuration of different functional modules (such as signal processing, communication, control modules) to meet customized needs.
High reliability power supply: ABB IEMMU01 supports dual power supply redundant input, with reverse protection and voltage isolation function (DC1500V isolation) to ensure stable system power supply.
Industrial grade protection: Aluminum reinforced housing and IP30 protection level, suitable for harsh industrial environments, with excellent anti-vibration and dustproof performance.
Communication integration: Built-in communication interface, ABB IEMMU01 supports data exchange between modules and seamless connection with DCS network, and improves system response speed.
Convenient diagnosis and maintenance: Provides relay alarm output (fiber link failure, power failure), with contact capacity of DC48V/1A, which is convenient for quick problem location.
Principle of use
Physical support: Various modules are fixed through 12 standardized slots to ensure stable mechanical connection between modules.
Power distribution: Convert external input AC or DC power into multiple DC power supplies (+5V, ±15V, 24V) required by the system, and ensure uninterrupted power supply through redundant design.
Communication hub: Integrated bus communication function, coordinates data interaction between modules, and connects to the upper control system to realize real-time monitoring and command transmission.
Signal isolation and protection: Through DC1500V voltage isolation technology, power supply interference is prevented from affecting signal accuracy, and built-in reverse protection circuit is built to improve system safety.
