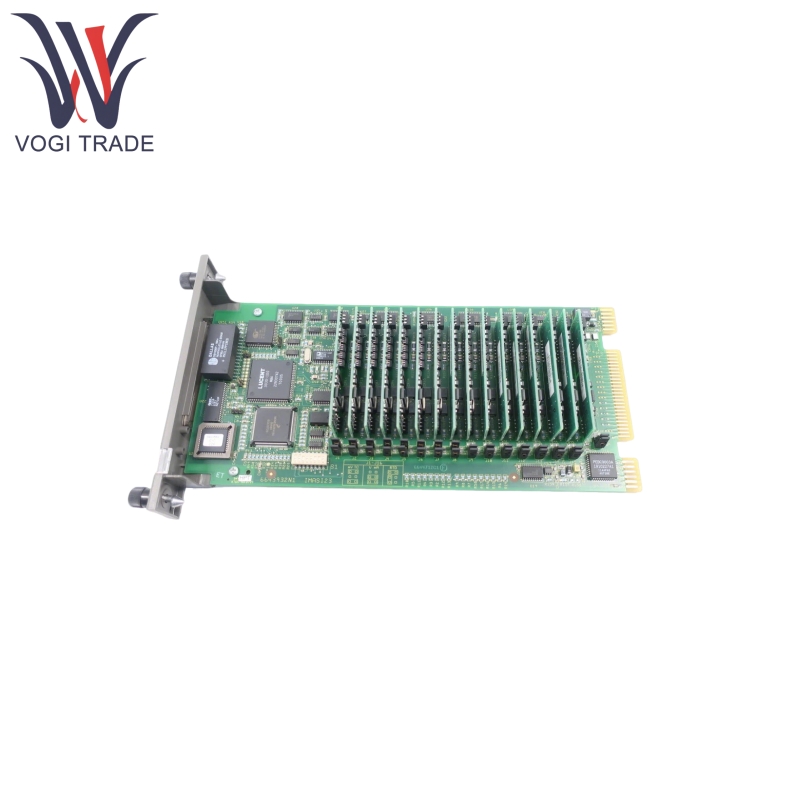

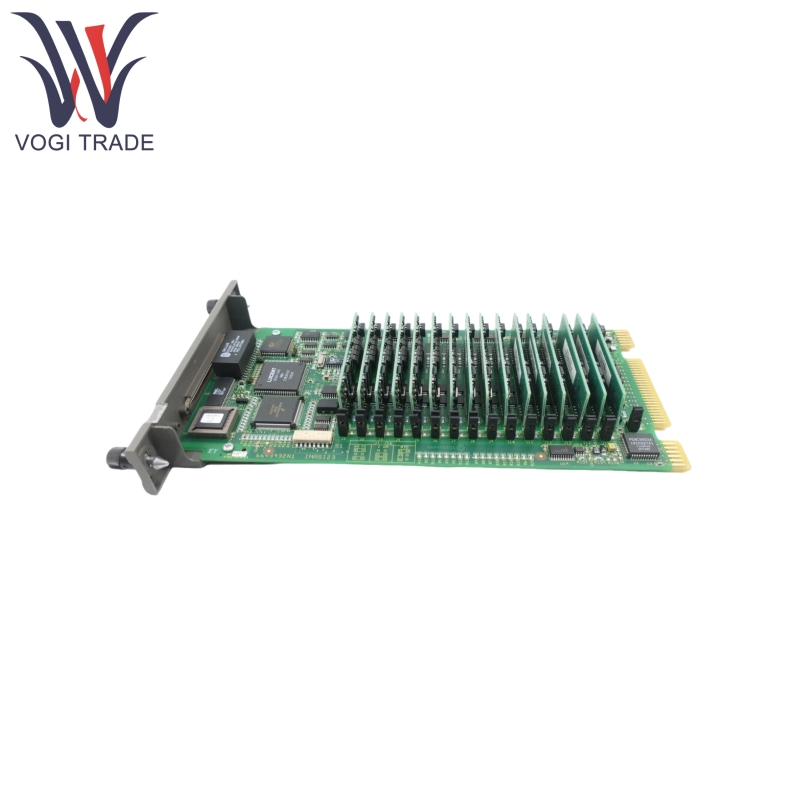

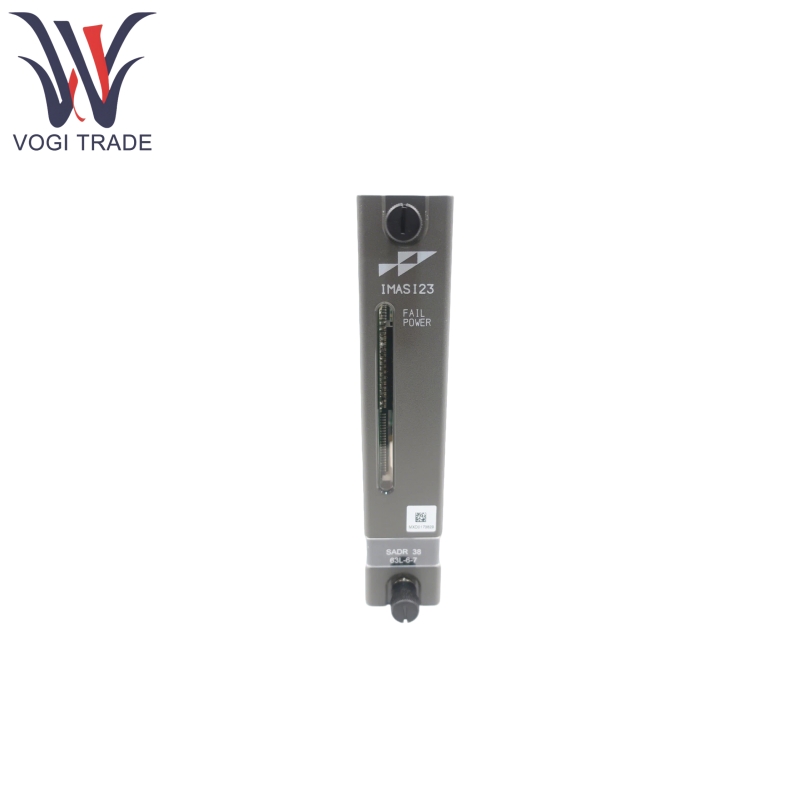

Brand: ABB Description: Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen ABB IMASI23 supports thermocouples, millivolts, resistance temperature detectors, and high-level analog signal inputs. Each channel is equipped with an independent 24-bit A/D converter that can be independently configured to suit different signal types, ensuring high-precision data acquisition.
|
Manufacture |
ABB |
|
Model Number |
IMASI23 |
|
Ordering Number |
IMASI23 |
|
Catalog |
- |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
32*18*6cm |
|
Weight |
0.8kg |
Product Features
ABB IMASI23 has multi-signal compatibility, supporting 12 types of thermocouples, including J, K, T, E, R, and S, as well as millivolt signals ranging from -100 mV to 100 mV, and RTD sensors such as PT100 and CU50.
ABB IMASI23 features 24-bit resolution to ensure signal conversion accuracy, channel isolation (250V DC/VRMS), and open-circuit detection functionality to enhance interference resistance.
ABB IMASI23 incorporates an automatic calibration mechanism to compensate for component aging and temperature drift, eliminating the need for user intervention.
ABB IMASI23 supports automatic cold-junction temperature compensation for thermocouple inputs, improving temperature measurement accuracy. Modules can be replaced while the system is running, minimizing downtime.
Product Using Principle
ABB IMASI23 uses three edge connectors for signal input and power supply:
P1: Connects to a 5V DC power supply.
P2: Communicates with the controller via the I/O expansion bus.
P3: Receives field signals from the terminal unit, supporting direct connection of three-wire RTDs and thermocouples.
Each channel can be independently configured for input type and range. Signals are converted via a 24-bit A/D converter and processed through linearization algorithms (e.g., RTD nonlinear correction) to output engineering unit values, which are then transmitted to the controller for logical operations and control decisions.
Product Parameter
The following detail is for ABB IMASI23 Analog Input Module.
Supply Voltage: 5V DC (typically 500mA, maximum 750mA).
Input Range:
Thermocouple: Supports multiple types (e.g., Type K: -200°C to 1372°C).
Millivolt: -100mV to 100mV.
RTD: PT100 (0°C to 600°C), CU50 (-50°C to 150°C).
Conversion Time: 180ms (for all 16 channels).
Accuracy: ±0.05% (typical value, depending on the input type).
Electromagnetic Compatibility: Complies with standards such as EN 61000-4-2 (ESD ±8kV air discharge).
Operating Environment: Temperature 0°C to 70°C, humidity 5%-95% (non-condensing), altitude ≤3000 meters.
